Name: China Spout Pouch Sealing Machine Manufacturers Suppliers Factory - Western Packing
Brand: Western Packing
SKU: 305607935

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of spout pouch sealing machine in China. We warmly welcome you to buy high quality spout pouch sealing machine made in China here from our factory. We also accept customized orders.

Products Description

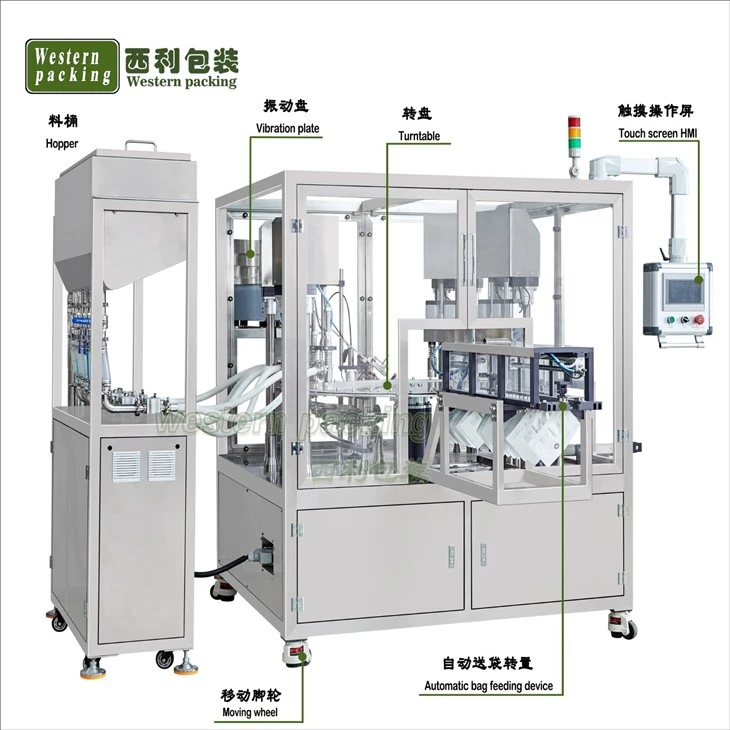

The spout pouch sealing machine operates with automated rotary control. The entire machine consists of a material storage system, a bag feeding system, a clamping mechanism, a filling module, a detection system, and a discharge system. During production, pre-made spout pouches enter each station according to a set rhythm, with each station independently completing its corresponding action, ensuring an orderly production process.

To address the issue of air bubbles easily generated in liquid products, the equipment can adjust the filling speed and feeding rhythm according to the material characteristics, making the liquid enter the packaging bag more smoothly.

Working principle

During operation, the operator places the suction bag into the bag supply area, and the conveying mechanism delivers the bags one by one to the working position. After the clamping assembly secures the bag, the system automatically identifies the suction nozzle direction and position to ensure accurate execution of subsequent processes.

Subsequently, the filling assembly, controlled by a servo drive system, controls the feeding rate. The liquid enters a dedicated filling channel through a conveying pipe and is then injected into the bag through the suction nozzle. During the filling process, the system continuously monitors the operating status to ensure that each bag reaches the set capacity.

Products Parameters

Name	spout pouch sealing machine
Filling Scope	50-1000g
Weight Accuracy	±0.1-2g
Speed	10-50 pouches/min
Total power	6.5 kW
Machine inner parts contacted food	Food-grade 304 stainless steel

Products Details

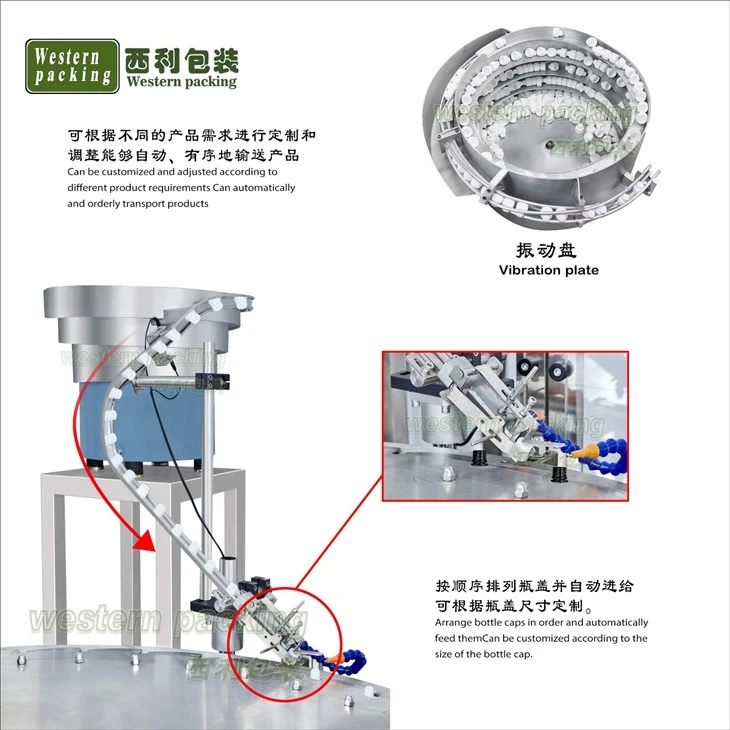

The nozzle guide assembly is located at the front end of the filling area and guides the nozzle through a multi-point limiting structure.

It adopts an independent servo control system to precisely control the feeding amount according to the set parameters.

The spout pouch sealing machine key actions are driven by a pneumatic system, resulting in rapid response and smooth operation.

The material conveying pipeline adopts a quick-disassembly and assembly structure, which can be disassembled and cleaned without complicated tools.

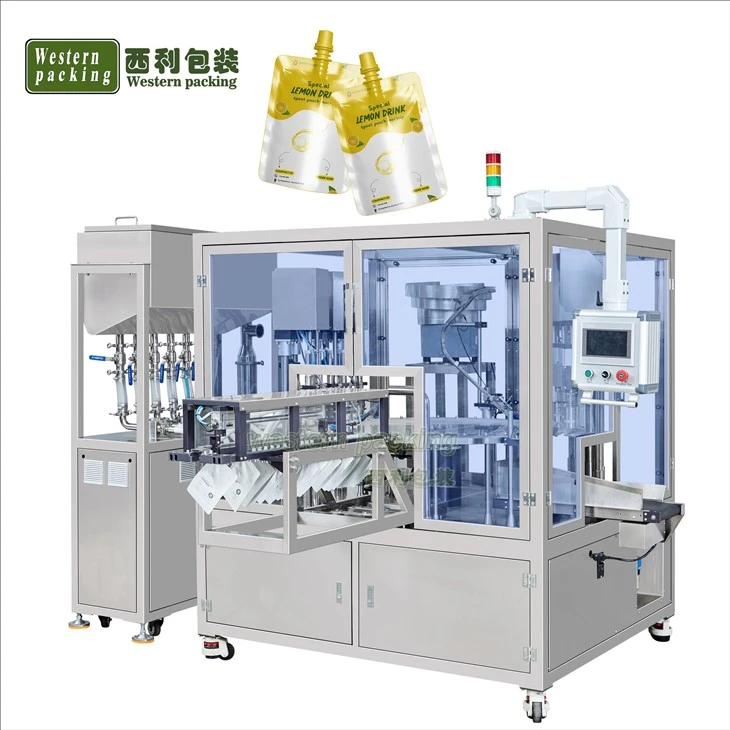

spout pouch sealing machine

Company Introduce

Established in 2014, Guangzhou Western Packing Co., Limited is a professional packaging machinery manufacturer integrating research and development, production, and international trade. With years of industry experience, we are dedicated to providing reliable and innovative packaging solutions for customers worldwide. Backed by a skilled R&D team, advanced manufacturing equipment, and a well-structured management system, we continuously enhance product performance, production efficiency, and service quality to meet the evolving needs of global markets.
