Name: China Doypack Pouch Packing Machine Manufacturers Suppliers Factory - Western Packing
Brand: Western Packing
SKU: 305277313

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of doypack pouch packing machine in China. We warmly welcome you to buy high quality doypack pouch packing machine made in China here from our factory. We also accept customized orders.

Products Description

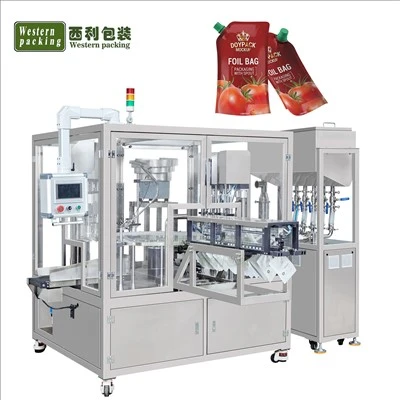

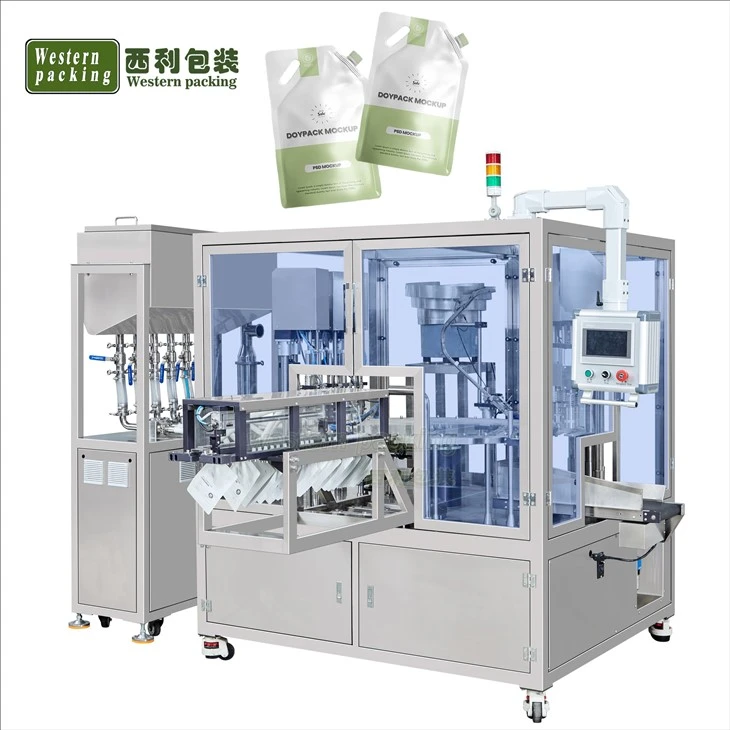

This doypack pouch packing machine features a station-based cyclical operation design, with the entire machine optimized for the spout pouch packaging process. During production, pre-made spout pouches are automatically fed to the work area by a bag feeding mechanism. The equipment uses a dedicated clamping device to secure the bags, ensuring their stability throughout the production process.To guarantee the quality of the spout pouch packaging, the equipment emphasizes precise control in the spout area. From spout detection and filling alignment to capping and locking, each step is automated, preventing positional deviations from affecting the packaging effect.The equipment can adapt to various filling methods to meet different product needs. For example, beverages can utilize a high-speed liquid filling system, jams can employ a high-flow conveying structure, and products containing fruit pieces can utilize a widened filling channel design. The equipment also supports the production of multiple spout pouch sizes; product switching is achieved simply by changing the appropriate tooling, making it suitable for multi-variety packaging production.

Products Parameters

Name	doypack pouch packing machine
Pouch pattern	stand-up pouch with zipper pouch
Filling Scope	50-1000g
Weight Accuracy	±0.1-2g
Speed	10-50 pouches/min (the speed depends on the product status and filling weight)
Voltage	380V 3-phase 50 Hz
Total power	6.5 kW
Compress air	0.6 m³/min (supply by user)
Control panel	"Siemens" 10-inch touch screen / Germany
Machine inner parts contacted with food	Food-grade 304 stainless steel
others	Covered with tempered glass and UV lamp

Products Details

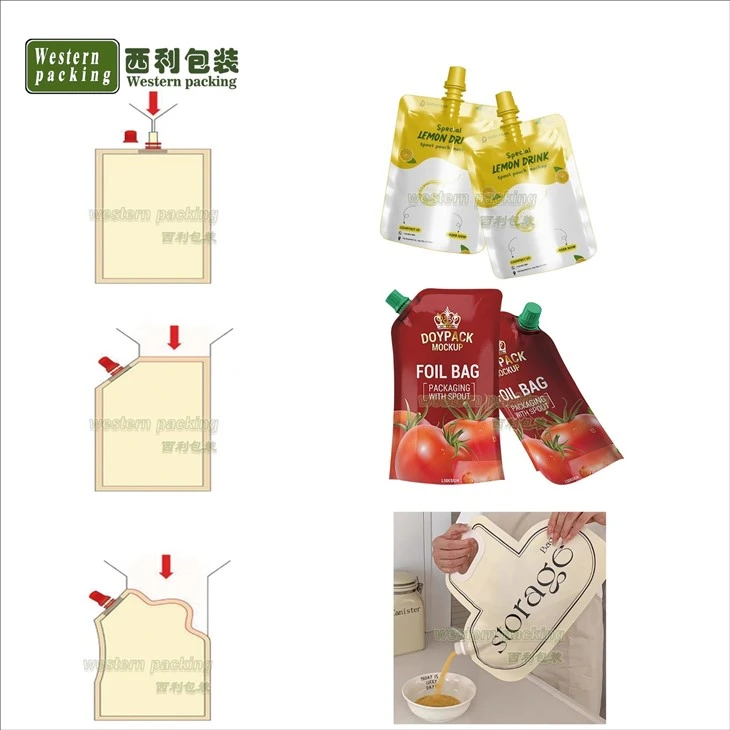

The filling system employs a filling structure specifically designed for spout bags. The filling nozzle can penetrate deep into the spout for filling, allowing the material to enter directly to the bottom of the bag, reducing air bubbles and splashing caused by liquid impact.

The turntable station uses a special bag clamping assembly, and each clamp is designed according to the structural characteristics of the spout bag.

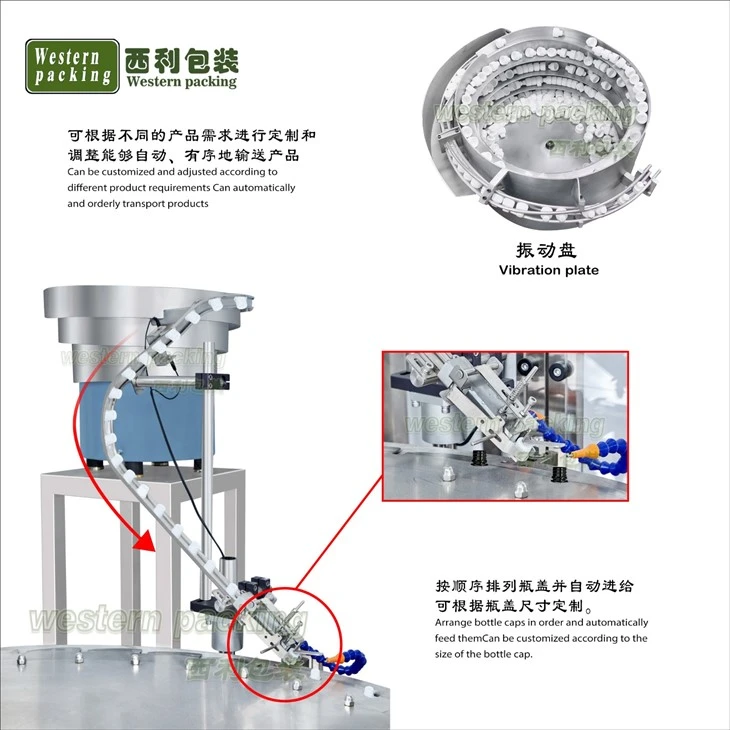

The vibratory feeder automatically aligns randomly stacked caps into a uniform orientation. The internal track is custom-designed to fit the cap dimensions, and vibration transport ensures each cap enters the conveyor channel in a fixed posture.

The doypack pouch packing machine all pipes, valves, and fittings that come into contact with materials are made of food-grade stainless steel.

automatic stand up pouch packing machine

doypack pouch packing machine
