Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of doypack packing machine in China. We warmly welcome you to buy high quality doypack packing machine made in China here from our factory. We also accept customized orders.

Products Description

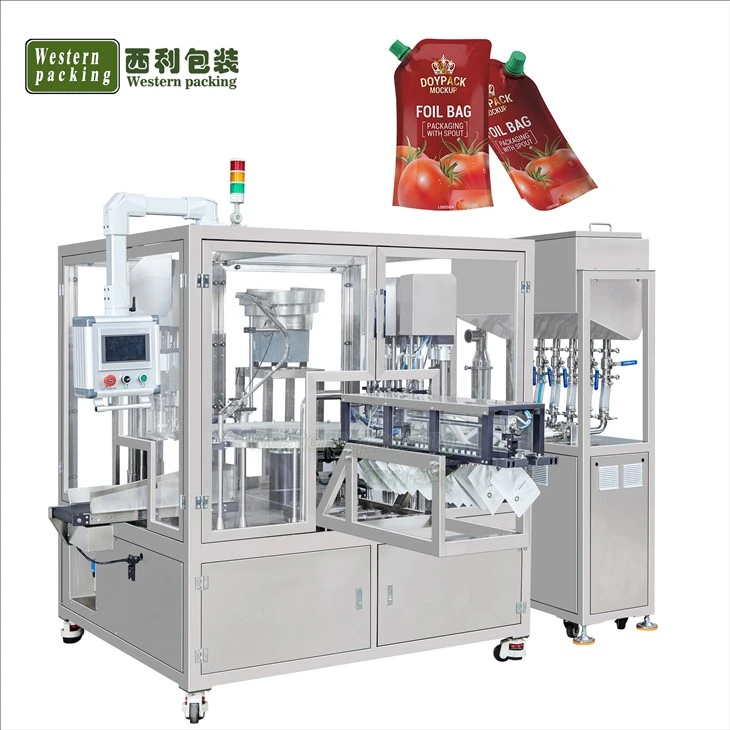

This doypack packing machine employs a rotary table structure, using an automatic conveying system to sequentially deliver pre-made spout bags to each workstation. During the packaging process, the equipment first sorts and conveys empty bags, then uses a high-precision bag clamping mechanism to secure the bags, ensuring accurate bag opening positioning during filling. Depending on the material characteristics, the equipment can be equipped with piston pumps, rotor pumps, screw pumps, or flow meter filling systems to achieve precise filling of products with different viscosities.After filling, the bags enter the automatic cap feeding and screwing area. The equipment uses a vibratory feeder to automatically supply caps, precisely delivering them to the spout position and tightening them. Subsequently, a torque detection station ensures that the tightening force of each cap meets the set standard.

product Features

Intelligent formula management function: The control system supports the storage of multiple product parameters, eliminating the need to reset all parameters when switching between different capacities or bag types, thus improving production changeover efficiency.Automatic compensation filling technology: When changes in material temperature or viscosity are detected, the system can automatically adjust the filling time or flow rate according to set values to maintain stable packaging weight.Flexible bag clamping structure: The bag clamping mechanism adopts a cushioned design, which can adapt to spout bags of different thicknesses and materials, reducing bag indentations and deformation.

Products Parameters

Name	doypack packing machine
Pouch pattern	stand-up pouch with zipper pouch
Filling Scope	50-1000g
Weight Accuracy	±0.1-2g
Speed	10-50 pouches/min (the speed depends on the product status and filling weight)
Voltage	380V 3-phase 50 Hz
Total power	6.5 kW
Compress air	0.6 m³/min (supply by user)
Machine inner parts contacted with food	Food-grade 304 stainless steel
others	Covered with tempered glass and UV lamp

Products Details

The bag supply compartment features an adjustable design to accommodate different sizes of spout bags.

Use the guide rail and detection sensor to perform secondary correction of the position of the suction nozzle to ensure accurate docking of the filling head and the center of the suction nozzle.

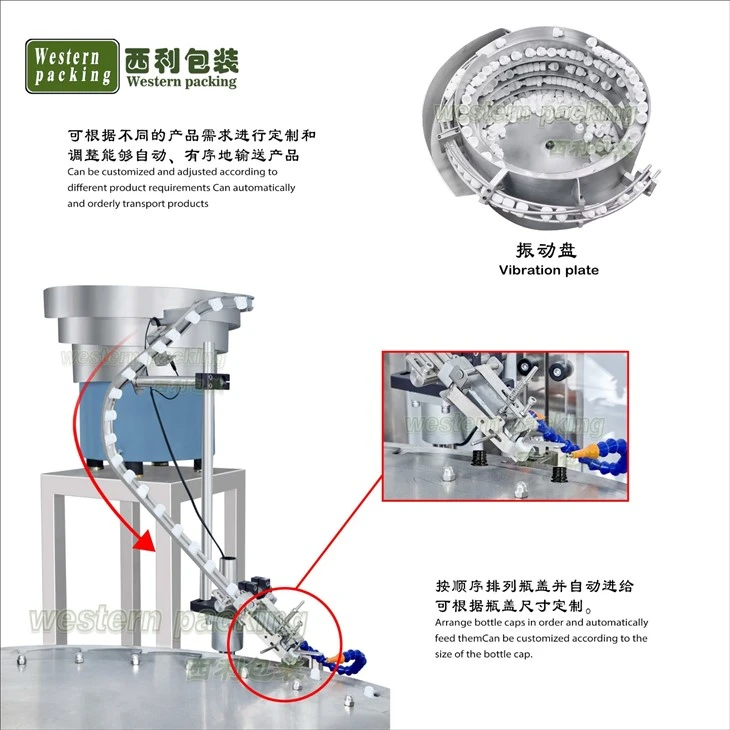

The doypack packing machine automatic cap sorting vibratory feeder has an optimized internal design, enabling it to quickly sort and transport caps.

The main body of the equipment is made of food-grade stainless steel, and the surface has been finely treated to prevent dirt accumulation and facilitate daily cleaning and maintenance.

doypack packing machine

Company Introduction

Guangzhou Western Packing Co,. Limited manufacture sell and service vertical form, fill, and seal packaging machines for the packaging industry. Our global markets include food, beverage, nutraceutical and chemical. We offer high-speed, continuous motion stick pack and sachet packaging machines. And many other vertical baggers that make a variety of bag styles-from pyramid bags to irregular shape bag, customize any shape you want.

We provide customized packing technology and engineering, and full-line packing system integration with combinations of weighers. In addition, we have in-feed and out-feed conveyors, auger, volumetric, and liquid fillers, check weighers and more.
