Doypack Packaging Machine
video

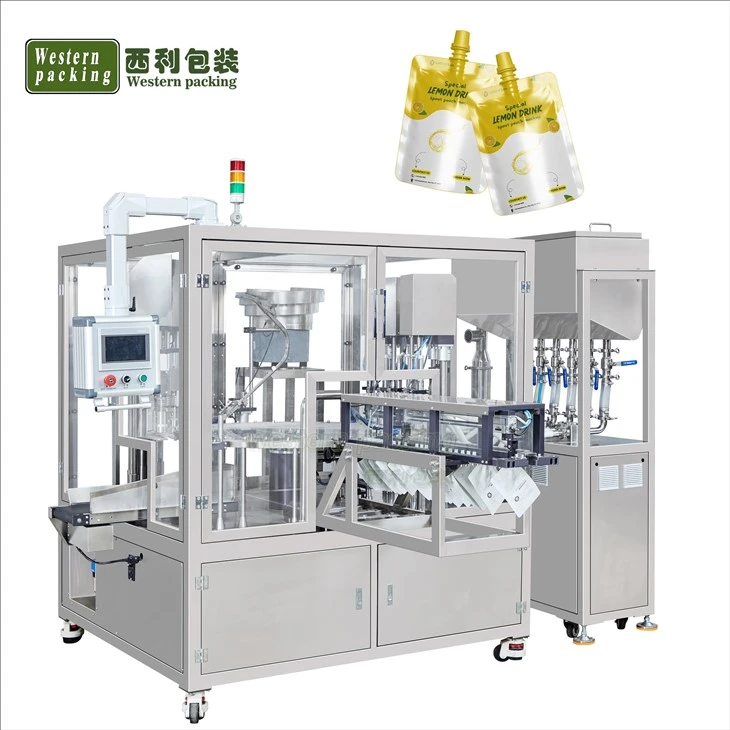

Doypack Packaging Machine

Doypack Packaging Machine

The spout bag packaging machine is an automated packaging equipment developed for the flexible packaging market. It is mainly used to complete the processes of spout bag picking, opening, quantitative filling, venting, sealing and outputting finished products.
Send Inquiry
Product Introduction

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of doypack packaging machine in China. We warmly welcome you to buy high quality doypack packaging machine made in China here from our factory. We also accept customized orders.



doypack packaging machine


Products Description

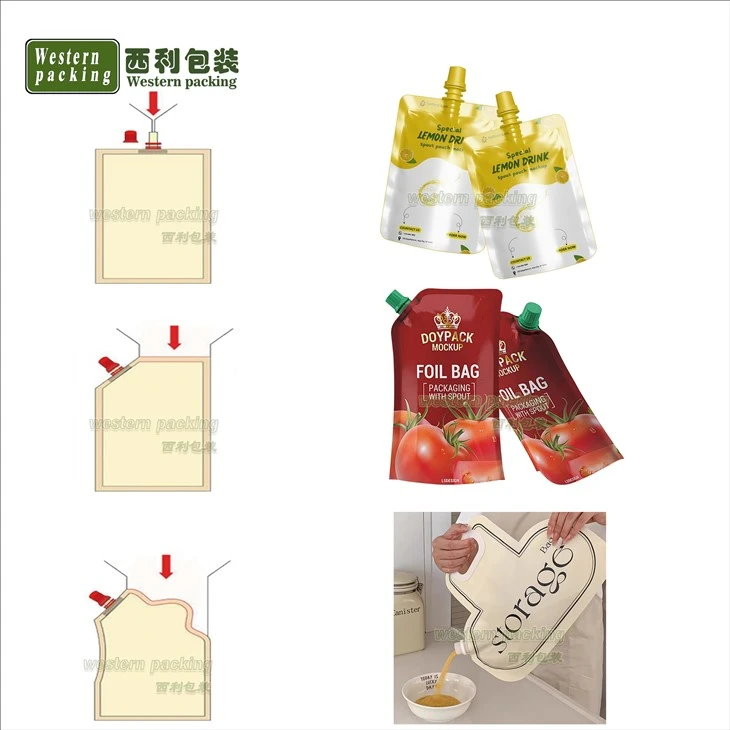

This doypack packaging machine employs a multi-station collaborative operation mode, with each actuator controlled by an independent drive system. During production, pre-made spout bags enter the equipment via a conveyor system, where they are automatically sorted and transported. Addressing the tendency of flexible packaging bags to deform, the equipment is equipped with a dedicated support mechanism to maintain bag stability throughout the filling process.With the increasing demand for portable packaging, spout bags are widely used in fruit purees, energy gels, pet food, baby food, detergents, automotive care solutions, and industrial fluids. This equipment replaces traditional manual filling with automated production, helping companies increase production capacity, improve packaging consistency, and reduce material waste during production.

Working principle

Once the equipment is operational, the spouted bags in the storage area first enter the bag-picking station via an automatic conveyor. The mechanical device separates the bags one by one and delivers them to a fixed clamping area. Subsequently, the system uses a detection device to confirm that the bags are in place.After entering the filling station, the filling system outputs material according to preset parameters. Depending on different product requirements, volume control, weight control, or flow control can be used for metering. After filling, the equipment automatically performs a buffering action to prevent material from splashing due to inertia.

Products Parameters

Namedoypack packaging machine
Pouch patternstand-up pouch with zipper pouch
Filling Scope50-1000g
Weight Accuracy±0.1-2g
Speed10-50 pouches/min (the speed depends on the product status and filling weight)
Voltage380V 3-phase 50 Hz
Total power6.5 kW
Compress air0.6 m³/min (supply by user)
Control panel"Siemens" 10-inch touch screen / Germany
Machine inner parts contacted with foodFood-grade 304 stainless steel
othersCovered with tempered glass and UV lamp

Products Details

automatic spout pouch filling machine
The bag conveyor track features a wear-resistant guide structure design, ensuring stable movement of soft bags and preventing tilting, jamming, or piling.
stand pouch packing machine
The independent clamping mechanical claws employ a flexible clamping method, ensuring effective fixation while avoiding damage to the bag surface.
doypack packing machine

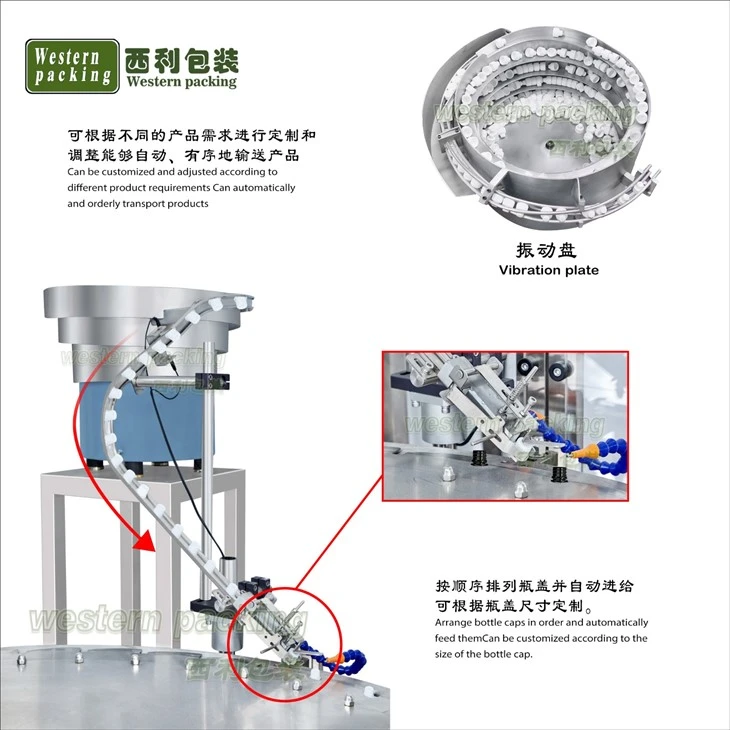

The doypack packaging machine adopt a vibratory feeder design ensures that each cap enters the capping area with a uniform posture, improving the capping success rate.
stand up pouch packing machine
The electrical control cabinet adopts a modular layout with neatly arranged wiring, which facilitates maintenance and repair while improving the stability and reliability of equipment operation.


stand up zipper pouch filling machine
stand up pouch liquid filling machine

doypack sealing machine
