The powder mixer is primarily designed to blend two or more powdered raw materials according to a specific formula, ensuring thorough interaction between the different components and resulting in a uniform mixture.



This equipment is suitable for powdered products such as milk powder, protein powder, coffee powder, seasoning powder, nutritional powder, flour, and starch; depending on material characteristics, it can also be used to blend certain chemical powders.



The equipment is typically installed at the beginning of a powder processing or packaging line. Raw materials are fed into the mixing chamber—either manually or automatically—and, following the mixing process, the product is discharged for subsequent stages such as storage, conveying, metering, or packaging.



Technical Specifications

Mixing method U-shaped mixing
Suitable materials Powders, dry powders, and certain granular materials
Mixing capacity Based on model configuration
Mixing time Adjust based on the formula and material characteristics.
Power supply Configured according to the client's country and project requirements.



Powder density, flowability, moisture content, and formulation ratios all influence the actual mixing capacity and equipment selection; therefore, final technical specifications are determined based on the customer's specific materials and production capacity requirements.

Working Principle

  1. During production, the various powders are first fed into the mixing chamber according to the formulation requirements.
  2. Once the equipment starts, the motor drives the mixing shaft to rotate, and internal components propel the powders into continuous motion. Throughout the mixing process, powders from different zones are constantly redistributed, allowing the various raw materials to blend gradually.
  3. Operation ceases once the preset mixing time is reached; the discharge mechanism is then opened to transfer the blended powder to the next stage of the process.



OEM/ODM Customization Services


Customizing powder mixing equipment involves more than just altering the machine's dimensions. In actual projects, factors such as the material, production capacity, loading height, discharge position, and downstream equipment all influence the equipment design.

Mixing capacity

The size of the mixing bin is designed based on the client's single-batch production volume to align with the actual production pace.

Agitation assembly

Select an appropriate internal structure based on powder flowability, density, and mixing requirements.

Material Specifications

Components in direct contact with the powder can be configured according to specific application requirements, such as food production or general industrial powder handling.

  • Industrial Powder Mixer

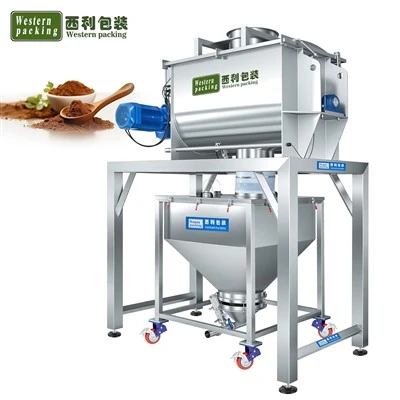

    Industrial Powder Mixer

    The upper part of this industrial powder mixer is responsible for mixing, while the lower part is responsible for temporary storage and centralized discharge. Operators can directly complete feeding,
    Add to Inquiry
  • Commercial Powder Blender

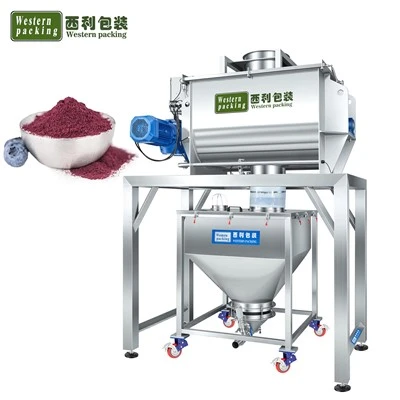

    Commercial Powder Blender

    The commercial powder blender is quite practical: the upper part is responsible for mixing, and the lower part is responsible for storage and buffering. After mixing, the material can enter the lower
    Add to Inquiry
  • Powder Mixing Machines

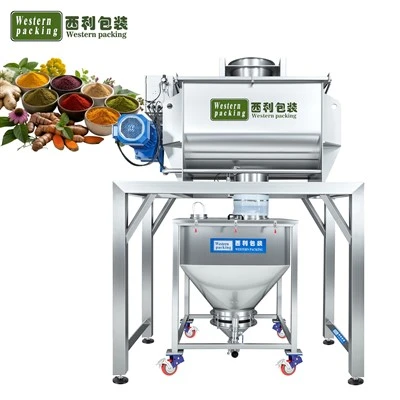

    Powder Mixing Machines

    Compared to simple stirring methods that rely on tumbling, the ribbon conveyor can continuously transport materials to different areas, allowing powders of different batches and components to come
    Add to Inquiry
  • Dry Powder Blending Machine

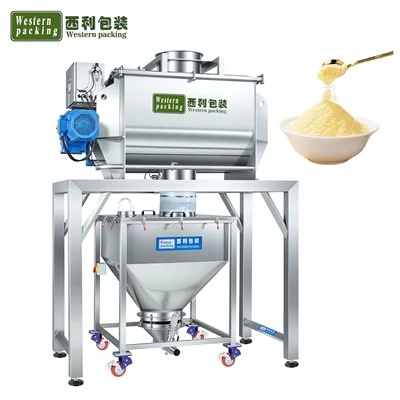

    Dry Powder Blending Machine

    This dry powder blending machine is a continuous equipment that integrates powder mixing, temporary storage and discharge. It is mainly used for the uniform mixing of different powders, granules or
    Add to Inquiry
  • Powder Blender Machine

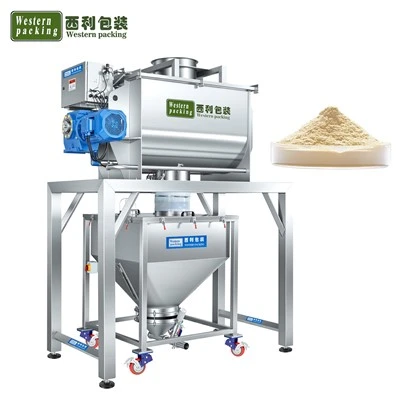

    Powder Blender Machine

    The powder blender machine adopts a spiral stirring structure. The internal spiral shaft is continuously rotated by a motor and a reducer, which causes different powders to move, tumble and
    Add to Inquiry
  • Powder Mixer Machine

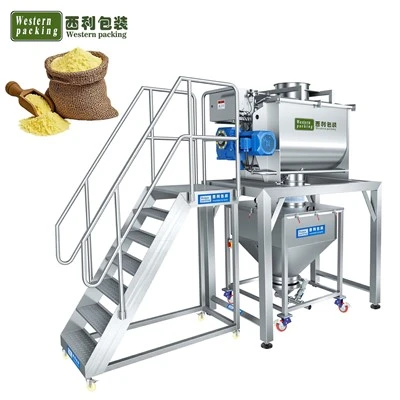

    Powder Mixer Machine

    This powder mixer machine is specifically designed for batch mixing of various dry powder ingredients. The machine features a horizontal mixing cylinder with an internal heavy-duty spiral mixing
    Add to Inquiry
  • Powder Ribbon Blender

    Powder Ribbon Blender

    This powder ribbon blender features a horizontal cylindrical structure with a spiral mixing assembly running throughout the entire mixing zone. Powder enters from the top, and as the spiral rotates,
    Add to Inquiry
  • Grain Powder Mixer Blender Mixing Machine

    Grain Powder Mixer Blender Mixing Machine

    It grain powder mixer blender mixing machine has excellent corrosion resistance, high temperature resistance and easy cleaning properties, which can effectively prevent materials from being
    Add to Inquiry
  • Powder Mixer 300kg

    Powder Mixer 300kg

    The powder mixer 300kg is a highly automated mechanical equipment designed to accurately and efficiently mix a variety of powdered materials evenly.
    Add to Inquiry
  • Ribbon Blender Milk Powder Mixer

    Ribbon Blender Milk Powder Mixer

    The ribbon blender milk powder mixer is an efficient and convenient mixing equipment, widely used in chemical, food, medicine, and other industries.
    Add to Inquiry

Manufacturing and Quality Control

The stability of a powder mixer depends not only on the final assembly but also on the processing of the vessel body, the precision of the mixing shaft, the quality of welding, and the installation of drive components.



  • Raw Material and Plate Processing: Cutting, bending, welding, and related machining of plates based on the equipment structure.
  • Mixing Component Processing: Machining and assembly of the mixing shaft, blades, and related connecting parts in accordance with the equipment design.
  • Complete Machine Assembly: Assembly of the mixing chamber, drive system, mixing components, and inlet/outlet structures.
  • No-load operation check: After equipment assembly, conduct an operational test to inspect the motor's running status, the rotation of the mixing shaft, the presence of abnormal noise, the drive system, the discharge mechanism, and the control system.



Warranty & After-Sales Service



Equipment delivery does not mark the end of the project. Once the powder processing equipment is put into production, the customer typically requires installation, commissioning, operational training, and routine maintenance.



Technical Support

Provide technical support for equipment installation, operation, and basic maintenance.




Installation & Commissioning

Provide installation and commissioning guidance based on project specifics to assist the customer in putting the equipment into operation.




Spare Parts

We provide spare parts support for components that may require long-term maintenance, such as motors, drive components, and mixing assemblies.




Troubleshooting

If an anomaly occurs during equipment operation, we can assist in diagnosing the issue based on the operating conditions, photos, or videos provided by the customer.


FAQ


Q: What powders can be mixed?

A: Common applications include milk powder, protein powder, coffee powder, seasoning powder, nutritional powder, flour, and starch. Specialized powders require assessment based on material characteristics.

Q: Can you test our powder before ordering?

A: If the project has specific requirements regarding mixing performance, sample testing can be discussed based on the actual materials, and the test results can be used to help determine the equipment configuration.

Q: Can the machine be customized?

A: Yes. Equipment capacity, mixing configuration, feeding and discharge methods, materials of construction, and the integration method for the entire line can all be discussed based on the specific project.

Q: Can it be used in a complete powder production line?

A: Yes. Depending on project requirements, it can be combined with a hoist, storage silo, metering system, and powder packaging machine.







Guangzhou Western Packing Co., Ltd. is one of the most professional powder mixer filling machine manufacturers and suppliers in China, specialized in providing customized packaging machines. We warmly welcome you to buy high quality powder mixer filling machine made in China here from our factory. Contact us for more details.
