Shampoo Filling Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of shampoo filling machine in China. We warmly welcome you to buy high quality shampoo filling machine made in China here from our factory. We also accept customized orders.

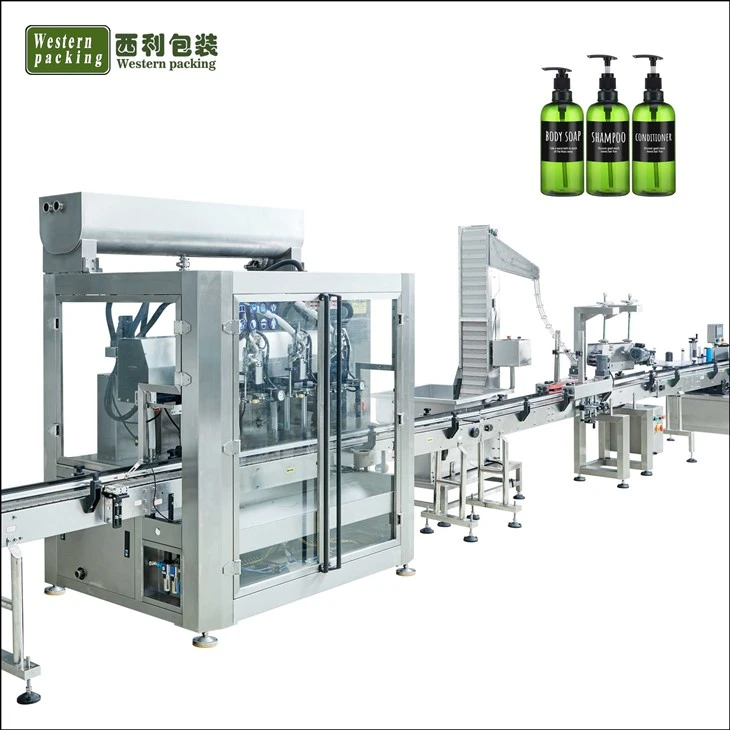

 Bottle automatic shampoo filling machine

The shampoo filling machine is a high-precision automatic liquid filling device designed specifically for the daily chemical industry. It is mainly used for quantitative filling of high- or medium-viscosity liquids such as shampoo, shower gel, conditioner, and hand sanitizer. This equipment adopts an advanced PLC control system and human-machine interface operation, featuring stable operation, high filling accuracy, simple operation, and convenient maintenance. It is suitable for the automatic filling production of various plastic bottles, glass bottles, and irregularly shaped bottles.

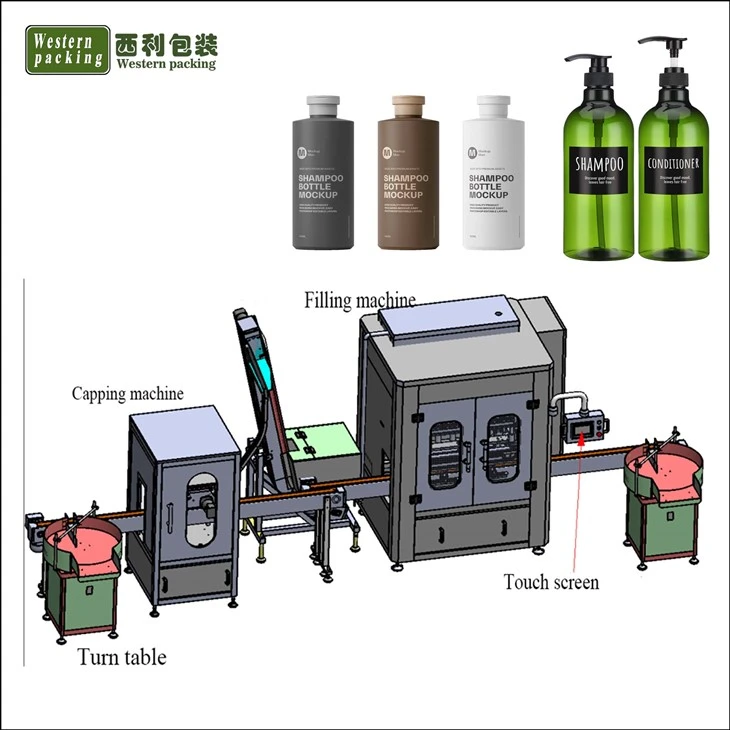

Depending on different production needs, automatic bottle unscramblers, capping machines, labeling machines, and coding machines can be optionally equipped to achieve fully automated production lines.

Main functions include:

Automatic bottle feeding and positioning

High-precision quantitative filling (servo or piston type)

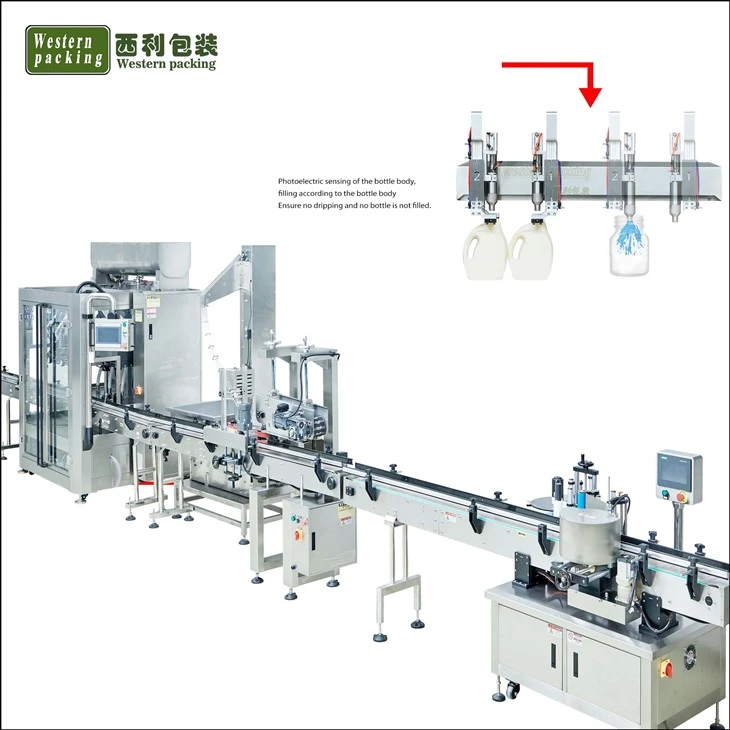

No-bottle-no-fill, automatic anti-drip

Adjustable filling speed and volume

Touchscreen operation interface, one-button parameter adjustment

This filling machine employs a servo-driven piston metering system, ensuring precise and consistent filling volume for each bottle of shampoo, with an error of less than ±1%. The filling nozzle is equipped with an anti-drip device to prevent liquid from contaminating the bottle mouth or conveyor belt during filling.

The equipment can automatically adjust the filling head position according to the bottle height, adapting to various production needs. Operators can easily and quickly set filling parameters and monitor production status via a touchscreen.

Product parameters





automatic Shampoo Filling Machine

Speed (8 nozzles)	30–80 bottles/min
Container Size	50ml----1000ml
Accuracy	≤ ± 0.5%
Power Supply	220, 50 (V, Hz)
Power	1 kW
Air Pressure	0.4-0.6 MPa
Air consumption	0.5 m³
Weight	550 kg

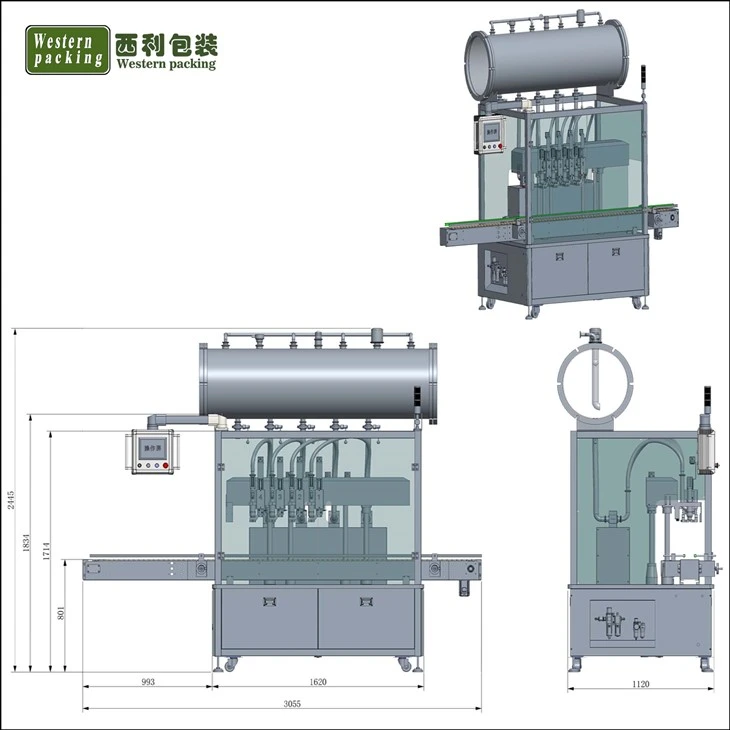

Dimension	2100 mm * 1640 mm * 1670 mm

Products Details

Imported PLC + touch screen control enable intelligent monitoring and fault alarm.

The entire machine is made of 304 stainless steel, and the parts in contact with materials are made of 316L stainless steel, ensuring safety and hygiene.

Multi-head anti-drip filling nozzle ensures smooth liquid dispensing without stringing.

Different bottle types can be easily changed without complicated tools. The whole line can complete filling and capping at one time.

Company introduce

Guangzhou Western Packing Co., Ltd is a professional manufacturer located in Guangzhou, China, specializing in vertical form fill seal (VFFS) machines, bottle filling machines - particularly multilane packing systems - as well as complete automatic packaging and filling production line solutions.

We offer customized packaging technologies and engineering services, providing full-line system integration combined with various weighing solutions. Our product range also includes in-feed and out-feed conveyors, auger fillers, volumetric and liquid filling systems, check weighers, and more.
