Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of spout pouch packing machine in China. We warmly welcome you to buy high quality spout pouch packing machine made in China here from our factory. We also accept customized orders.

Products Description

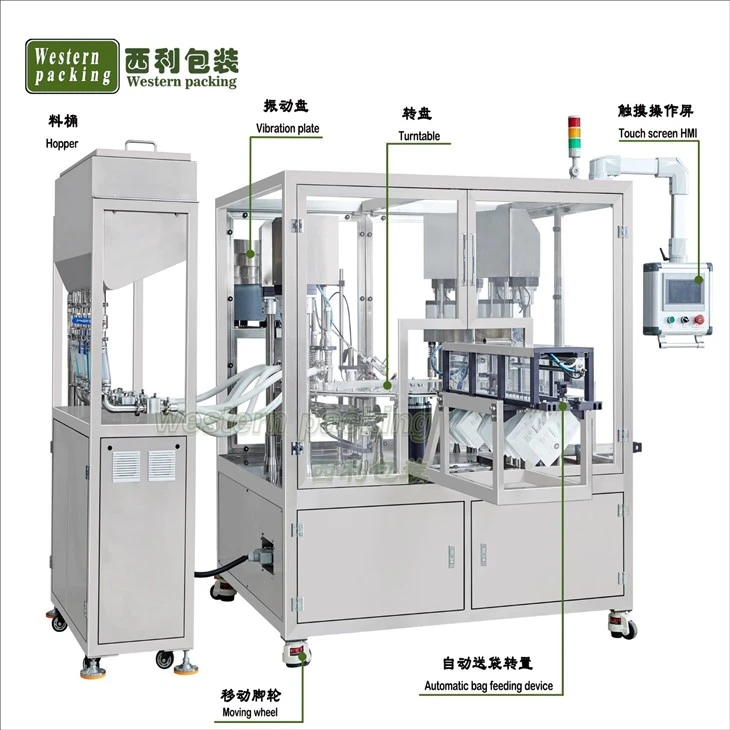

The spout pouch packing machine employs a specialized bag-clamping and conveying structure. During operation, the machine uses mechanical clamps to hold the spout pouches, precisely transferring them between multiple workstations. The entire machine is optimized for the spout filling process, enabling rapid and stable docking between the filling head and the spout.

Depending on the product characteristics, the equipment can be configured with a piston filling system, a rotor pump filling system, or a servo metering system. When packaging high-viscosity products such as jams and chili sauces, a pressurized conveying method ensures smooth material entry into the packaging bag; when packaging low-viscosity liquids such as fruit juices and beverages, high-speed continuous filling can be achieved.

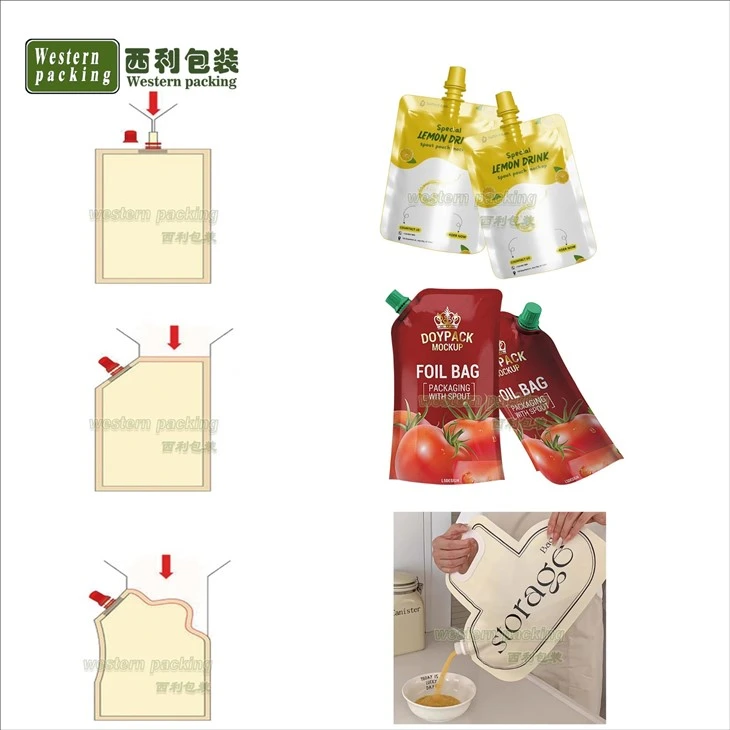

During production, the spout pouches remain fixed in place to prevent deviations caused by bag movement, thus ensuring a consistent filling effect for each packaging bag.

Product features

Automatic Filling Head Lifting: The filling mechanism is equipped with an automatic lifting system that adjusts according to the nozzle height, ensuring accurate alignment between the filling head and nozzle and reducing misalignment during filling.

Clamping and Conveying Design: Packaging bags are held in place and conveyed by specialized clamps during production, maintaining stable position even at high speeds and improving production continuity.

Multi-Size Compatibility: By changing clamps and adjusting the guide mechanism, the equipment can accommodate packaging bags of different capacities and nozzle positions, meeting diverse production needs.

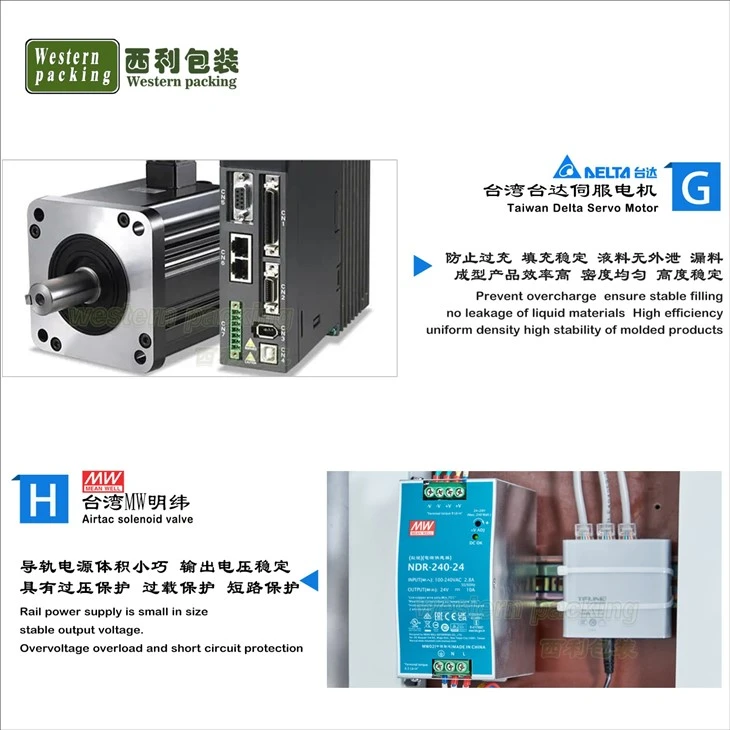

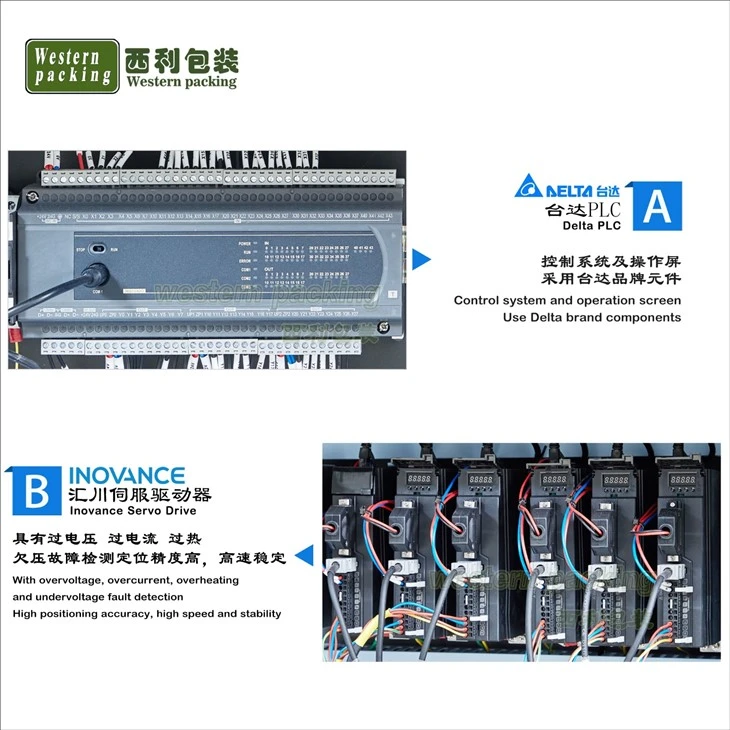

Independent Filling Control System: Each filling action is managed by an independent control unit, allowing for flexible adjustment of filling parameters based on product characteristics.

Products Parameters

Name	spout pouch packing machine
Filling Scope	50-1000g
Weight Accuracy	±0.1-2g
Speed	10-50 pouches/min
Total power	6.5 kW
Machine inner parts contacted food	Food-grade 304 stainless steel

Products Details

The clamp is custom-designed to fit the nozzle size, firmly securing the nozzle's position during transport to prevent rotation or displacement, ensuring accurate entry of the filling head into the nozzle.

The filling assembly is equipped with a high-speed opening and closing valve that quickly closes the discharge channel after filling to prevent liquid residue from dripping and contaminating the packaging bag surface.

Use photoelectric sensing technology to detect whether the nozzle is in place. When the position of the nozzle is abnormal, the equipment automatically stops the filling action to prevent empty filling or wrong filling.

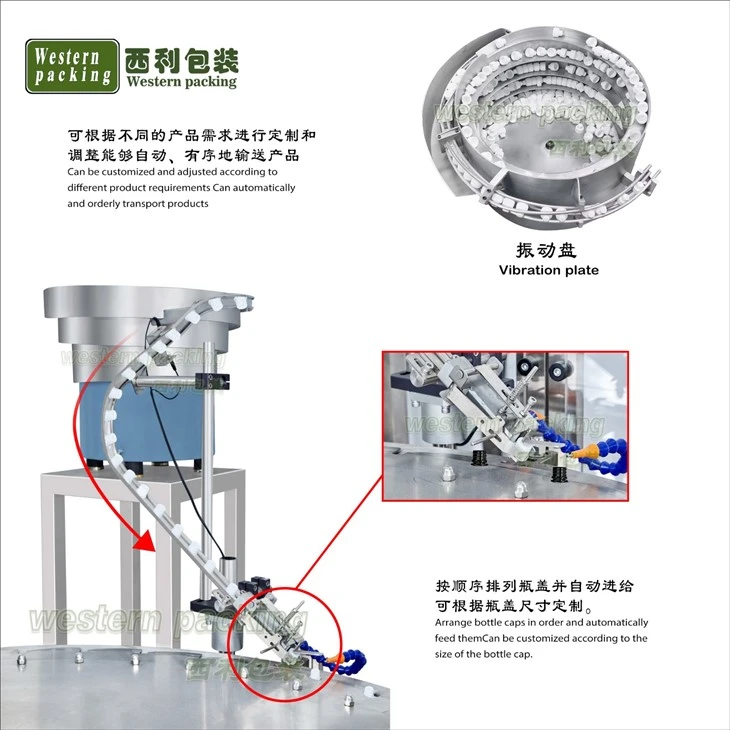

The spout pouch packing machine's rotating disc arranges bottle caps in sequence and feeds them automatically; customization is available based on bottle cap size.

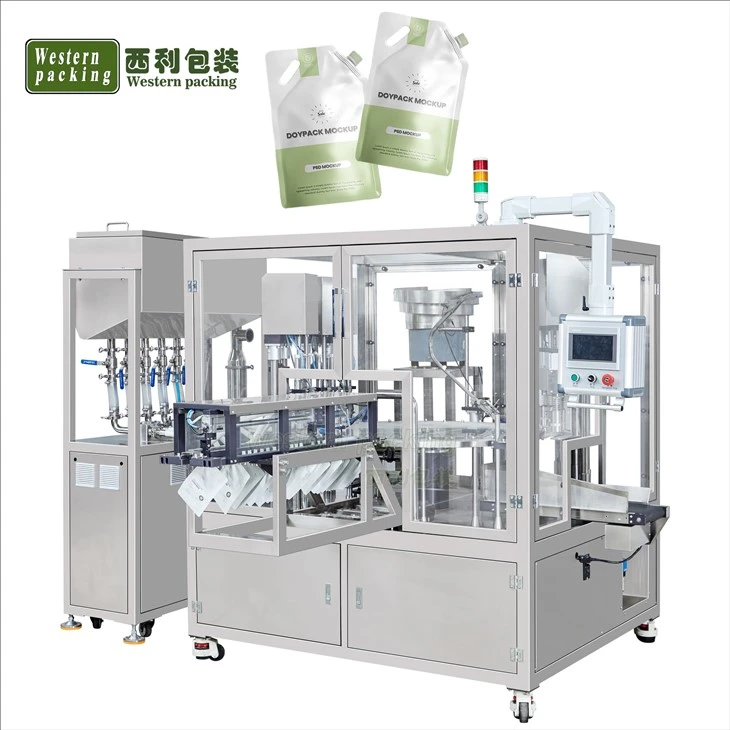

spout pouch packing machine

Company introduce

Guangzhou Western Industrial Co., Limited specializes in the manufacturing, sales, and servicing of vertical form-fill-seal packaging machines for the packaging industry. Our global markets include the food, beverage, nutraceutical, and chemical sectors. We provide high-speed, continuous-motion stick pack and sachet packaging machines, as well as a wide range of vertical baggers capable of producing various bag styles-from pyramid bags to irregular-shaped pouches-customized to any shape you require.
