Bottle Packing Machine

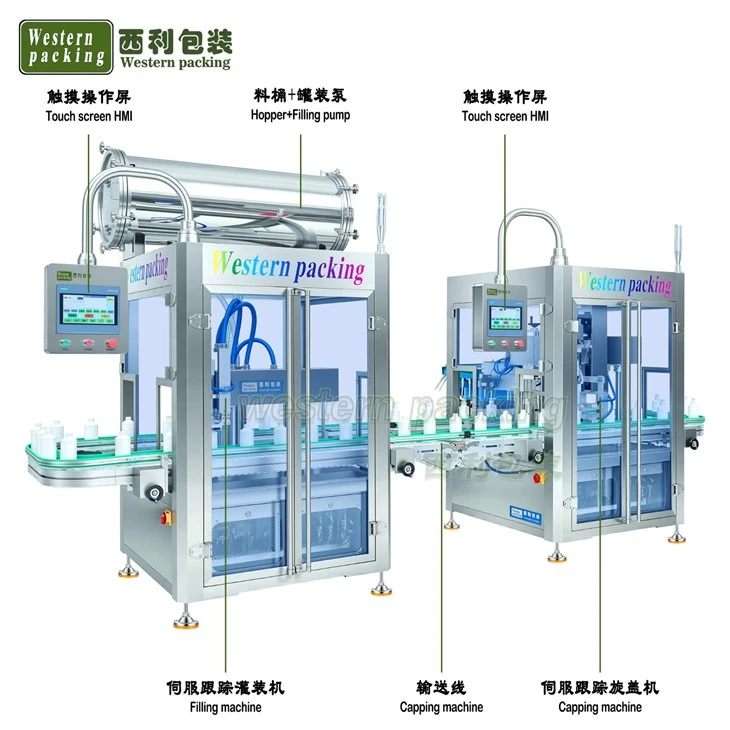

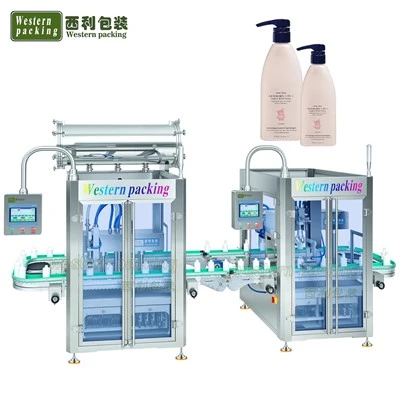

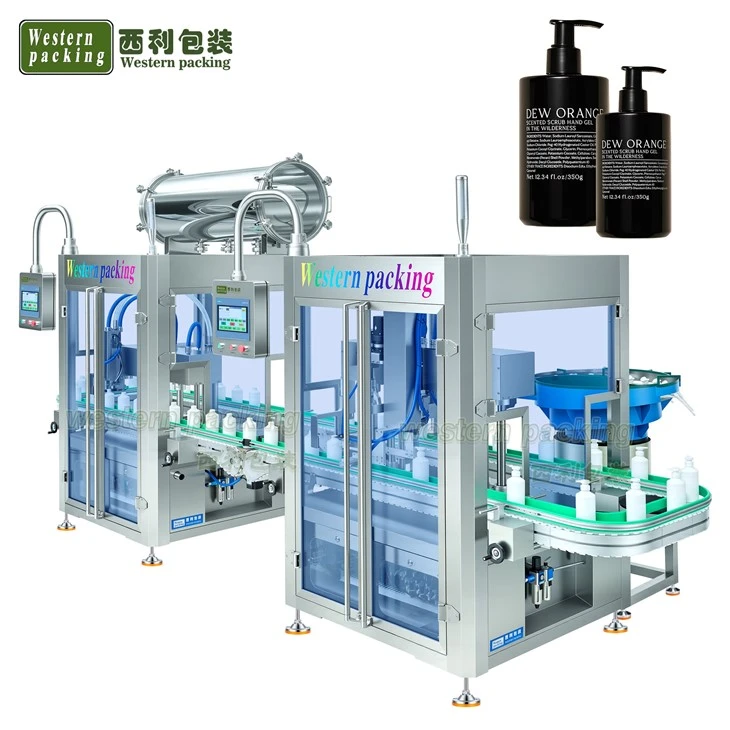

This bottle packing machine production line employs a continuous, synchronized-motion process: optoelectronic sensors capture the real-time position of each bottle, while a servo-driven carriage synchronizes its speed with the conveyor line. This ensures that the filling and capping components remain stationary relative to the moving bottles, allowing for filling and capping operations to be performed while the bottles are in transit.
The filling unit is equipped with a volumetric servo metering pump set, which supports flow feedback compensation and is matched with the corresponding pump type for low-viscosity aqueous solutions, medium and high viscosity creams, and materials containing suspended components; the capping unit is a servo torque closed-loop output with a programmable torque threshold setting. It stops immediately when the set torque is reached to avoid defects such as under-sealing leakage and over-twisting damage to the bottle mouth.

Filling of cosmetic and personal care ingredients: active serums, emulsified creams, skincare concentrates, fragrance-based solutions, and cleansing/care formulations.
Packaging of food products and functional ingredients: high-concentration syrups, vegetable oils, fermented sauces, and functional liquid dietary ingredients.
Fine chemicals and agricultural formulations: high-end lubricants, industrial cleaning agents, water-soluble fertilizers, liquid crop protection products, and anti-rust additives.
Pet healthcare products: bottling of veterinary medicines and health supplements, such as medicinal drops, skin-repair sprays, and high-purity nutritional oils.

Bottle-guiding structures are installed on both sides of the conveyor line, primarily to control the direction of bottle movement during transport.

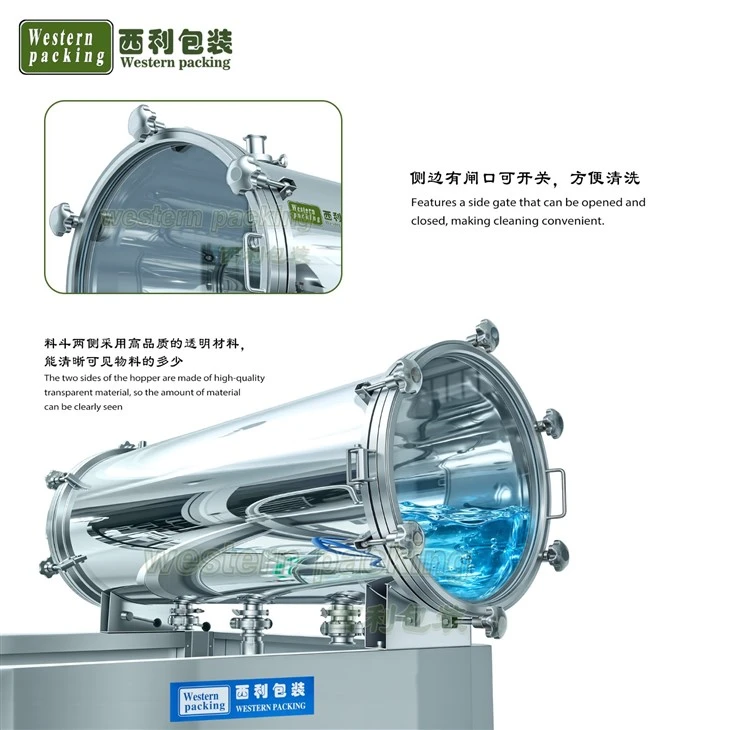

The storage hopper features a closed-end cap design at both ends, assembled with the hopper body via connecting and sealing components.

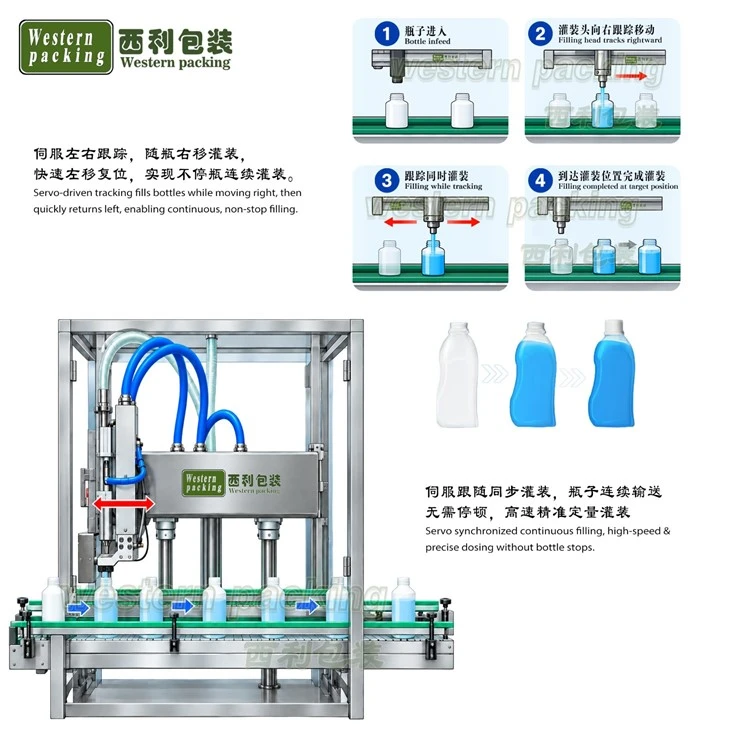

The servo-tracking filling mechanism drives the filling assembly to move in a specified direction. During operation, the control system issues motion commands based on the conveyance status of the bottles, and the servo-drive mechanism propels the relevant components to execute the tracking stroke.

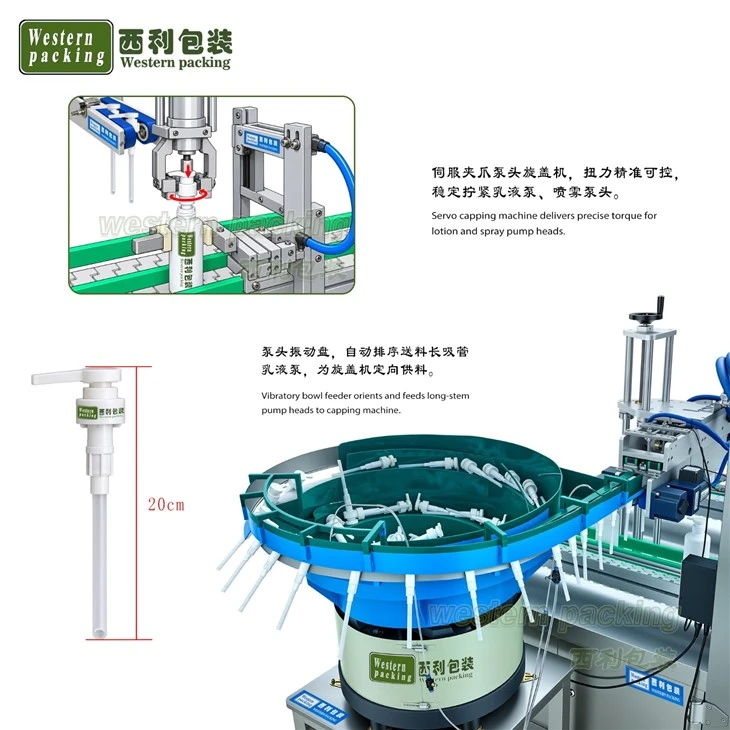

The bottle packing machine capping head utilizes a specific gripping mechanism-selected based on the shape, diameter, and surface material of the bottle cap-to ensure a stable fit with the cap.

Guangzhou Western Packing Co., Limited specializes in the design, manufacturing, sales, and technical support of vertical form-fill-seal (VFFS) packaging machines. Serving customers worldwide, our equipment is widely used in the food, beverage, nutraceutical, pharmaceutical, and chemical industries. Our product range includes high-speed stick pack machines, sachet packaging machines, and versatile vertical packaging systems capable of producing a variety of bag styles, from pillow bags and pyramid pouches to uniquely shaped custom packages designed to meet specific market requirements.

Taking photos with customers

Every exhibition is an opportunity to reconnect with old friends and meet new customers. We value every visit, every conversation, and every partnership built along the way. Many of our customers have been working with us for years, and some have become true friends beyond business.

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of bottle packing machine in China. We warmly welcome you to buy high quality bottle packing machine made in China here from our factory. We also accept customized orders.
