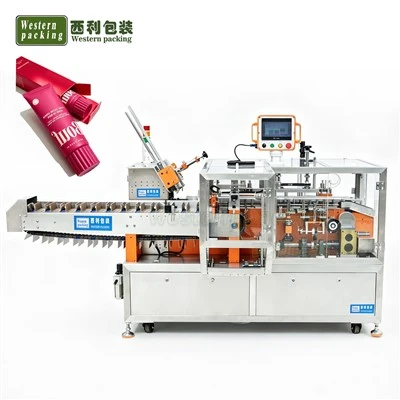

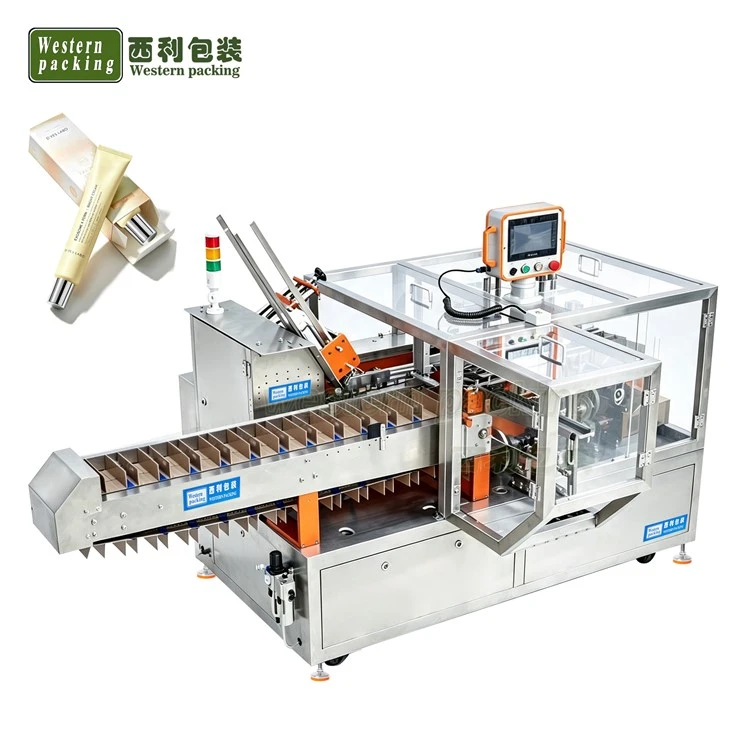

Auto Cartoner

In actual production, different products may require vastly different packaging configurations-such as one or two bottles per box or a combination of multiple small bottles in a single box. Furthermore, the dimensions (length, width, and depth) and the flap design of the cartons can vary.

Consequently, the key to a auto cartoners not merely in increasing speed but in ensuring the precise coordination of bottles, cartons, and mechanical movements.

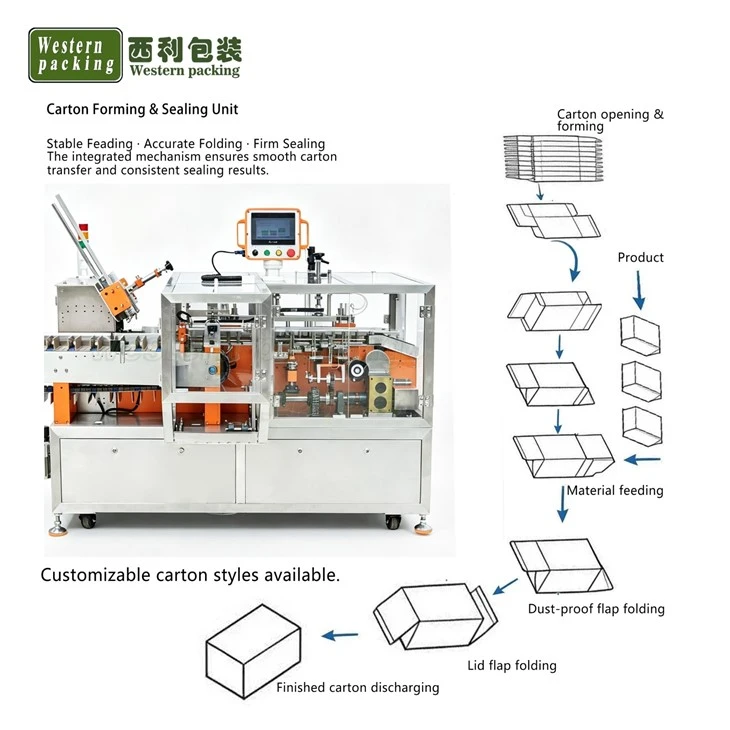

The equipment features a logical internal layout comprising product infeed, carton supply, cartoning, and finished product discharge zones. Upon entering the machine, bottles are guided and aligned into position, while cartons-pre-loaded into the storage area-are continuously fed into the system. The two components are brought together in the cartoning zone before proceeding to the sealing and discharge stages.

For customers integrating the machine into an existing production line, the infeed and discharge directions can be customized to align with upstream equipment (such as filling, capping, and labeling machines) and downstream case-packing systems.

Reduces manual involvement in cartoning: Manual cartoning requires repetitive actions such as picking up bottles and cartons, inserting the product, and sealing the box. Automated cartoning machines consolidate these repetitive tasks; personnel are primarily responsible for replenishing cartons and products, operating the equipment, and conducting quality checks, thereby reducing the manual workload in the cartoning area.

Improves packaging consistency: With manual cartoning, variations can occur in bottle positioning within the carton or the state of the carton flaps. Mechanized cartoning handles products using fixed operational paths and positioning methods, ensuring a more uniform packaging format across the entire product batch.

Better suited for continuous production: The equipment can operate continuously in sync with upstream conveyor lines, eliminating the need to pause for manual intervention after each carton is completed. For factories processing large volumes of bottled products daily, this continuous operation facilitates a stable, consistent pace for downstream packaging.

Suitable for full-line automation upgrades: For factories that have already implemented automated filling, capping, and labeling, a bottle cartoning machine can serve as a key component of a downstream automation upgrade.

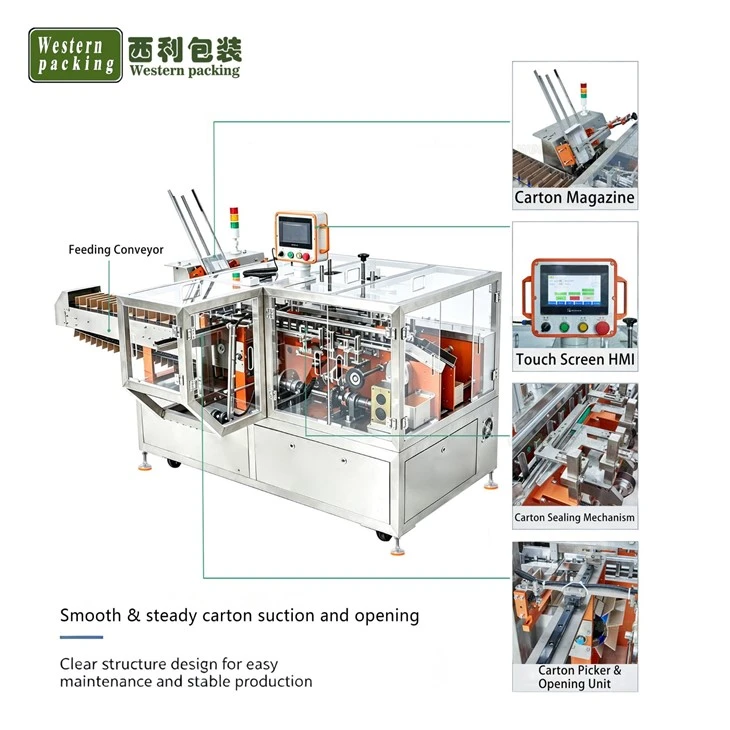

The hopper mechanism is designed to store unused carton blanks. Operators can load a supply of cartons in advance, allowing the equipment to continuously feed them during production and thereby reducing the frequency of manual replenishment.

The positioning structure uses guiding and limiting mechanisms to ensure the carton is correctly positioned before the product is inserted, thereby minimizing the impact of carton misalignment on the cartoning process.

The forming section is directly related to the carton dimensions; therefore, the relevant structure must be determined based on actual carton samples when configuring the auto cartoner.

Once the bottle has fully entered the carton, the closing assembly folds and shuts the carton flaps. The specific configuration can be adapted based on the type of closure used-such as tuck-in tabs, folding flaps, or other sealing methods.
