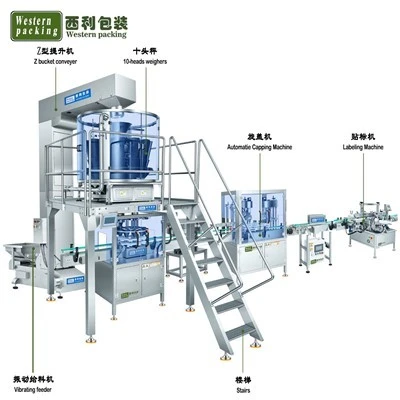

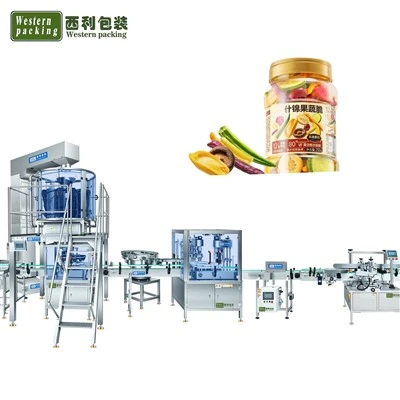

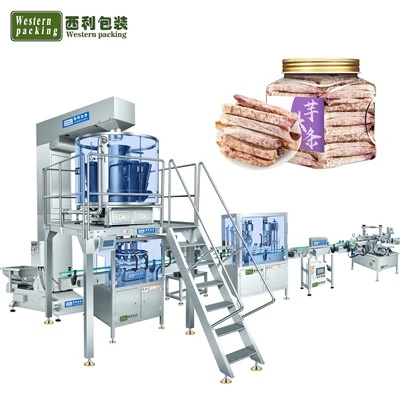

Granule Filling Machine

Improving Consistency in Quantitative Packaging: By using multi-head combination weighing to control the weight of each discharge, the system helps reduce weight fluctuations when packaging granular products. Actual performance should be verified based on the specific material and target precision requirements.
Reducing Repetitive Manual Tasks: Automated lifting and conveying mechanisms minimize manual labor-such as handling materials or moving containers-allowing operators to focus more on equipment monitoring and quality inspection.
Optimizing Production Workflow: Integrating filling, capping, and labeling into a single production layout reduces the need for intermediate handling and eliminates downtime between separate process stages.
Adapting to Diverse Packaging Projects: The system can be configured with specific components-tailored to target net weights, particle sizes, bottle shapes, cap types, and label specifications-to meet the unique packaging requirements of different clients.

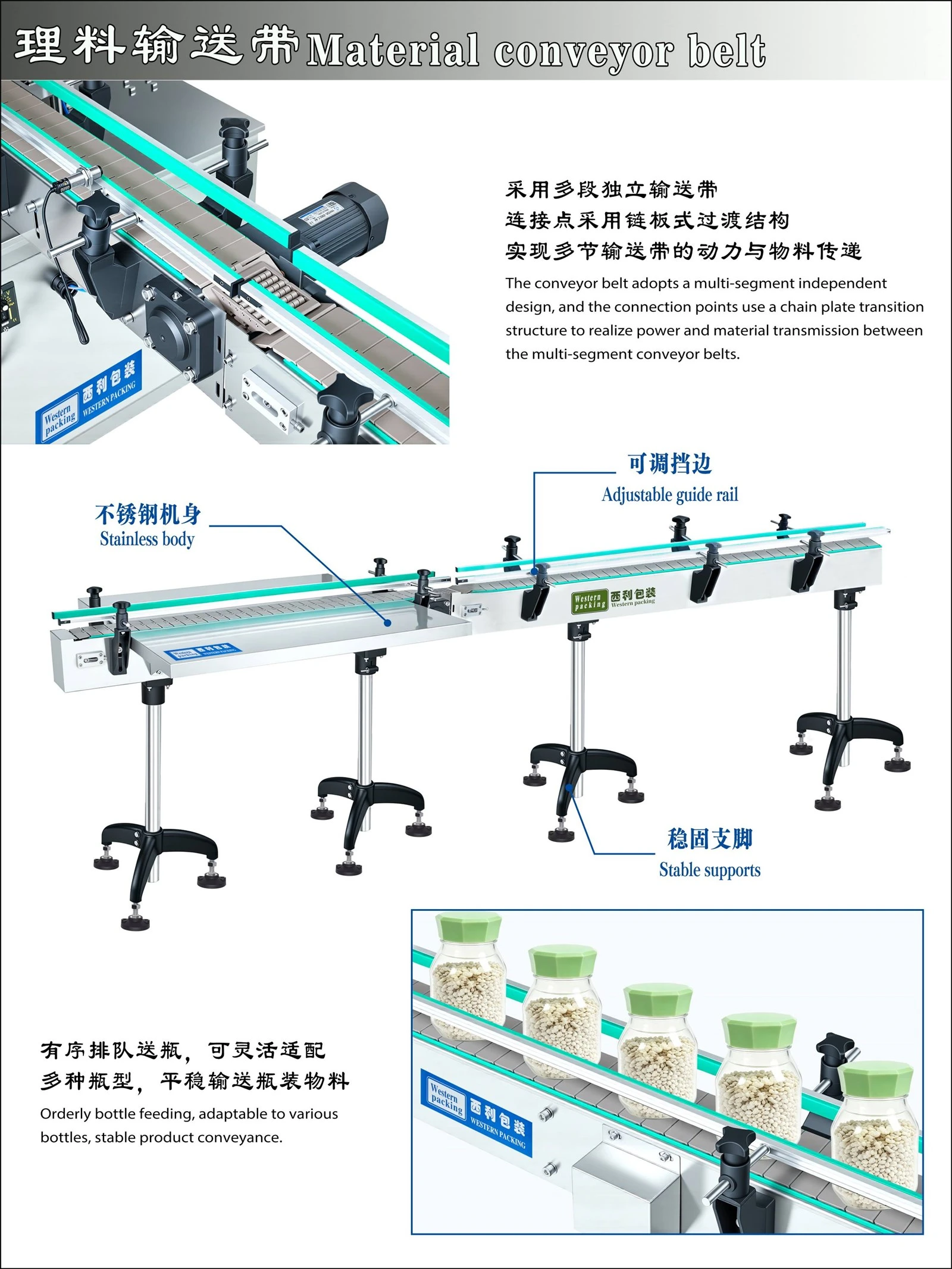

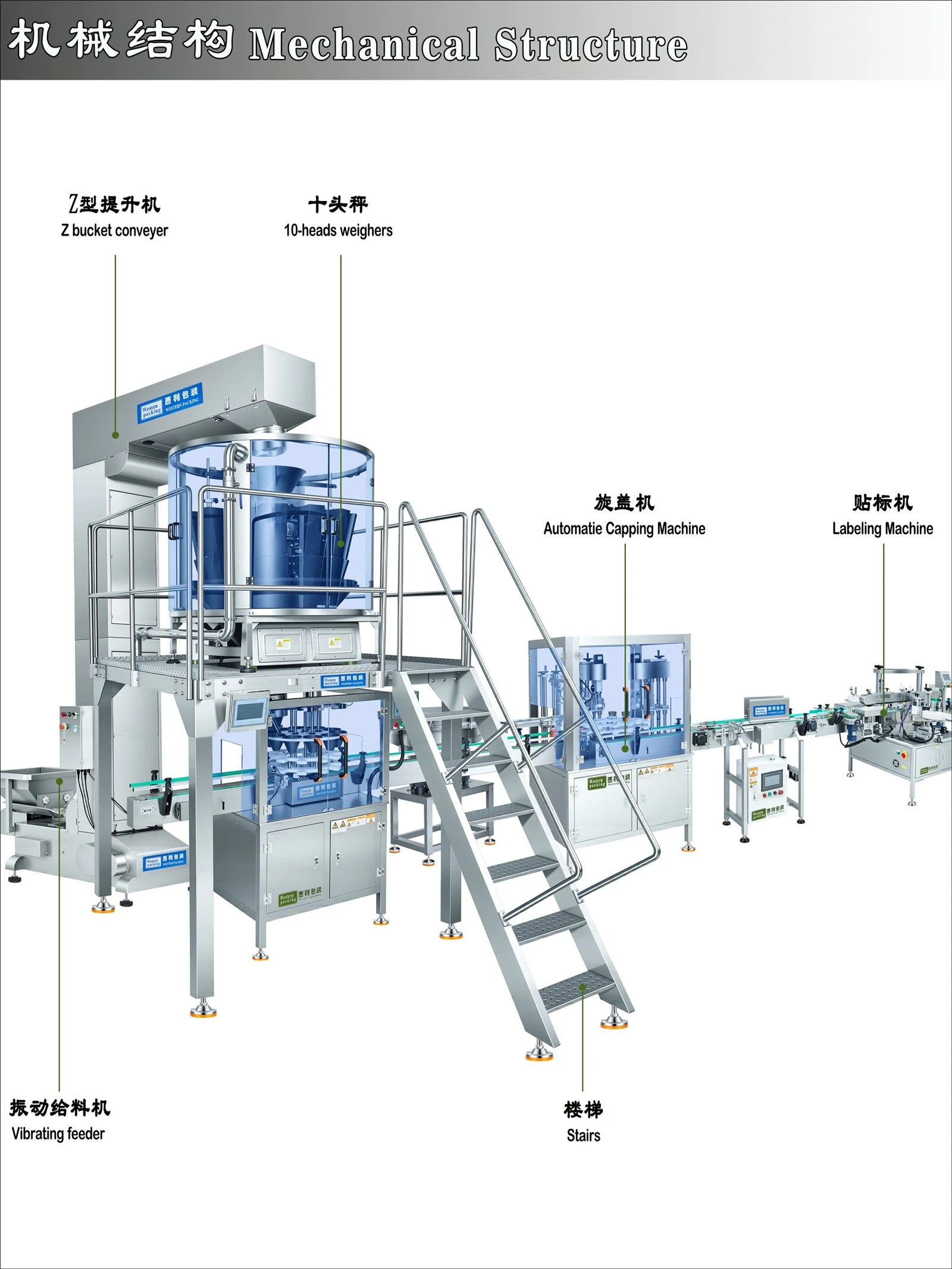

The equipment utilizes a lifting structure-comprising a hoist frame, a feed hopper, and a drive/transmission mechanism-to continuously transport bulk granular materials from a lower level to an upper storage area.

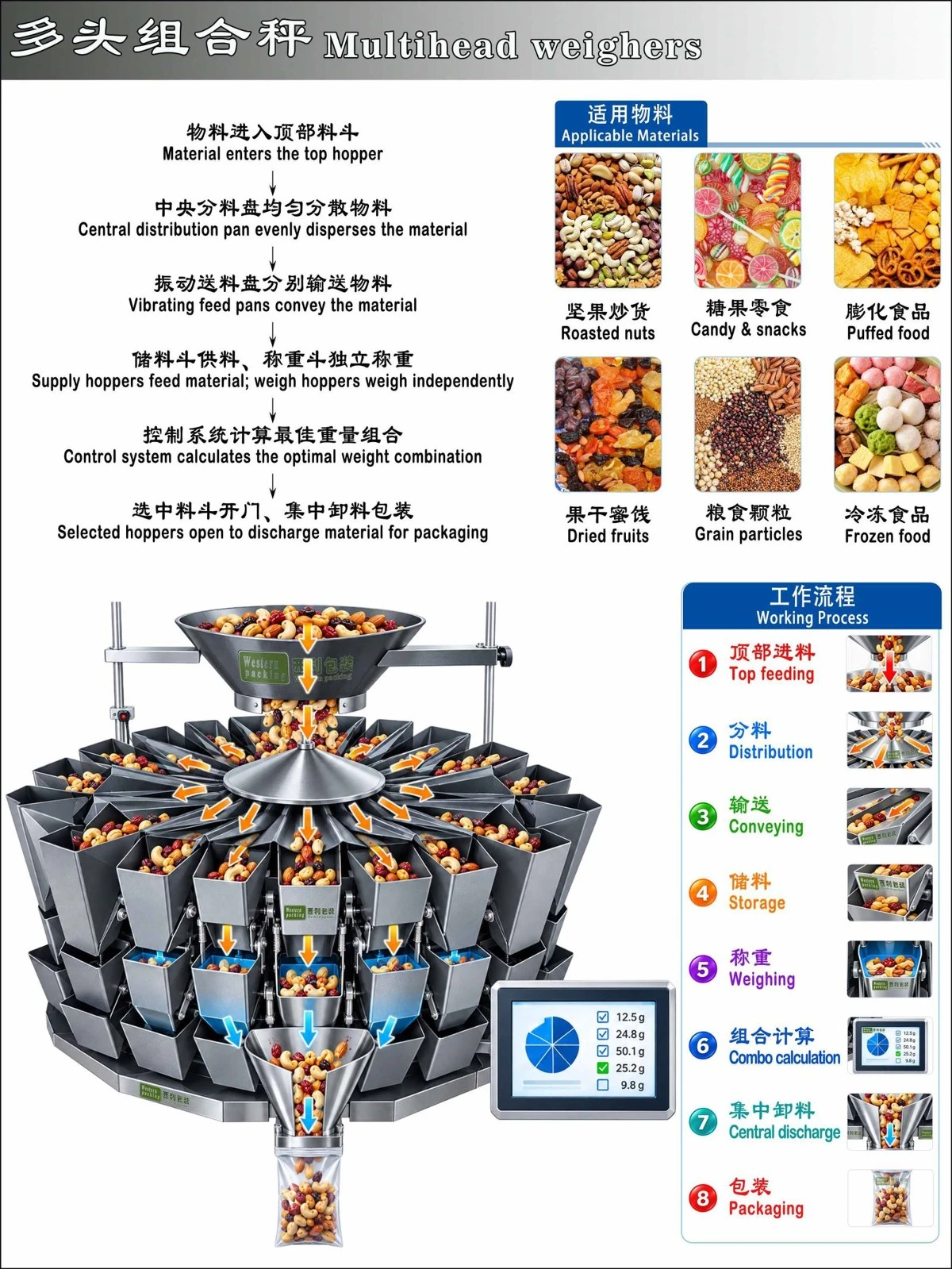

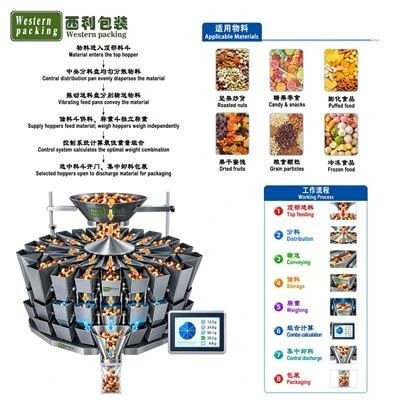

A 10-head combination weigher consists of a distribution mechanism, multiple weigh hoppers, load cells, and a control system. Each weighing unit captures the weight of the product, and the control system performs combinatorial calculations based on a target weight.

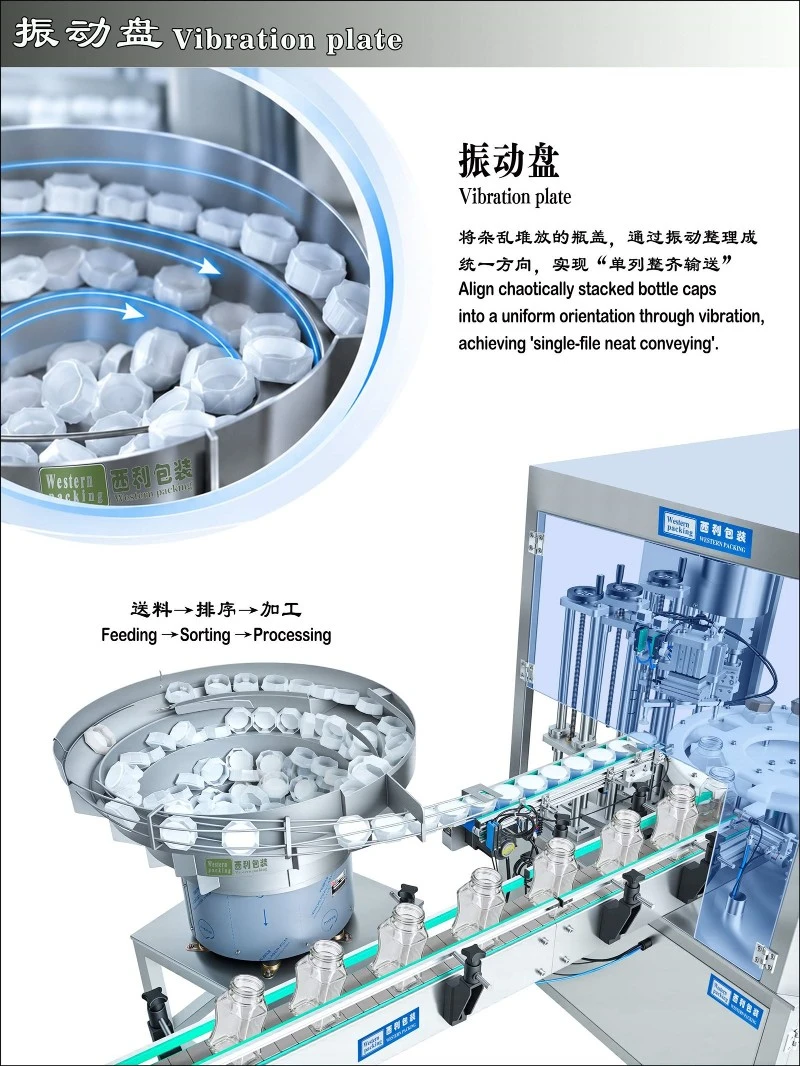

Vibration is used to move particles in a specific direction, facilitating their uniform entry into the subsequent processing stage. Parameters such as vibration amplitude, feed rate, and trough design are adjusted based on the material's particle size, density, frictional properties, and sensitivity to damage.

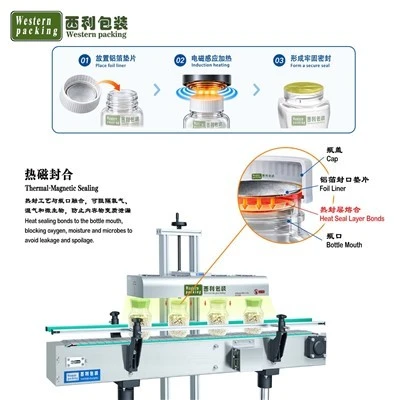

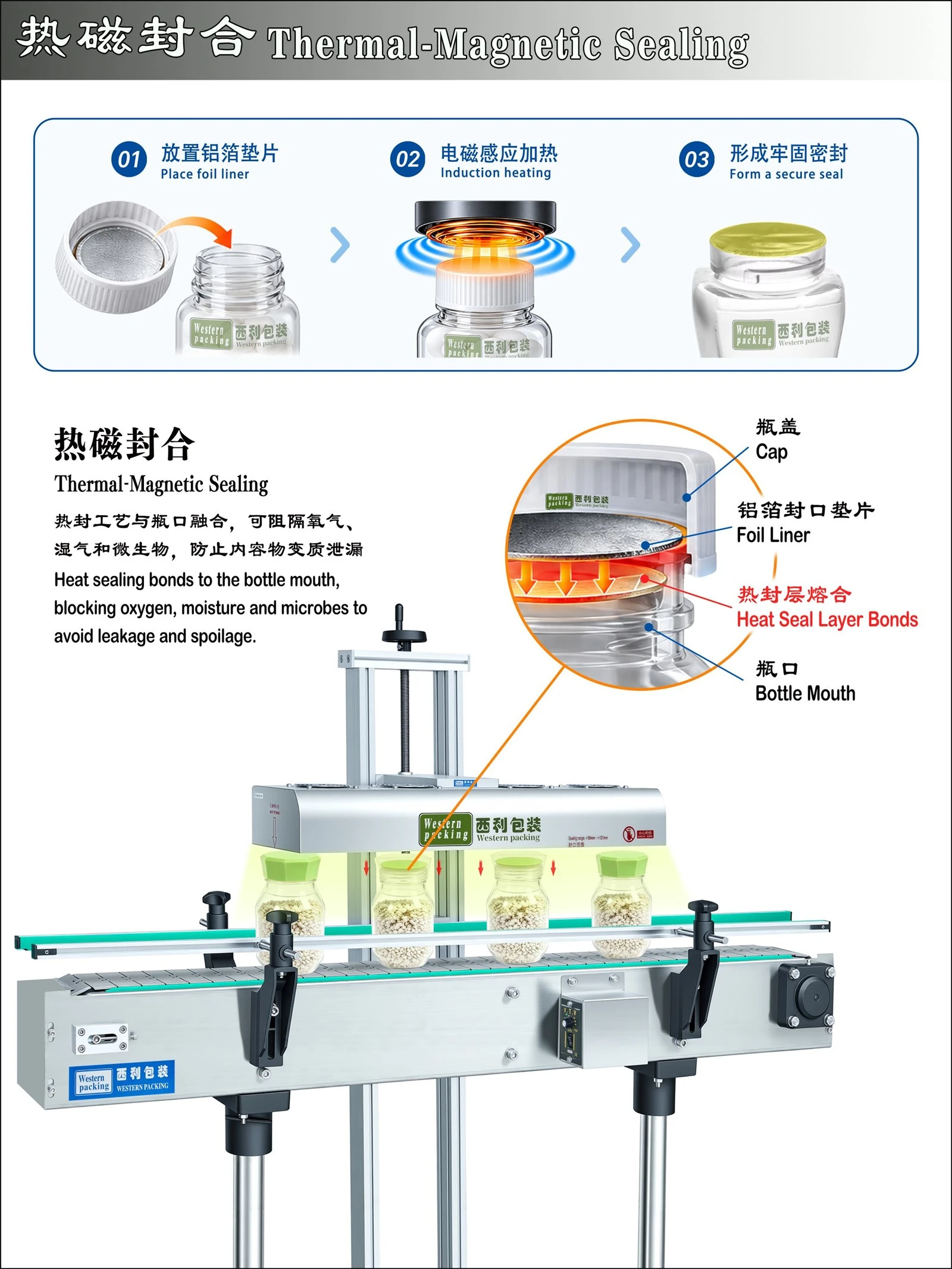

By combining heating with a magnetically driven mechanism, appropriate heat and pressure are applied to the sealing area of the packaging material; this allows the sealing material to bond effectively within a specified temperature range and duration, resulting in a continuous, uniform seal.

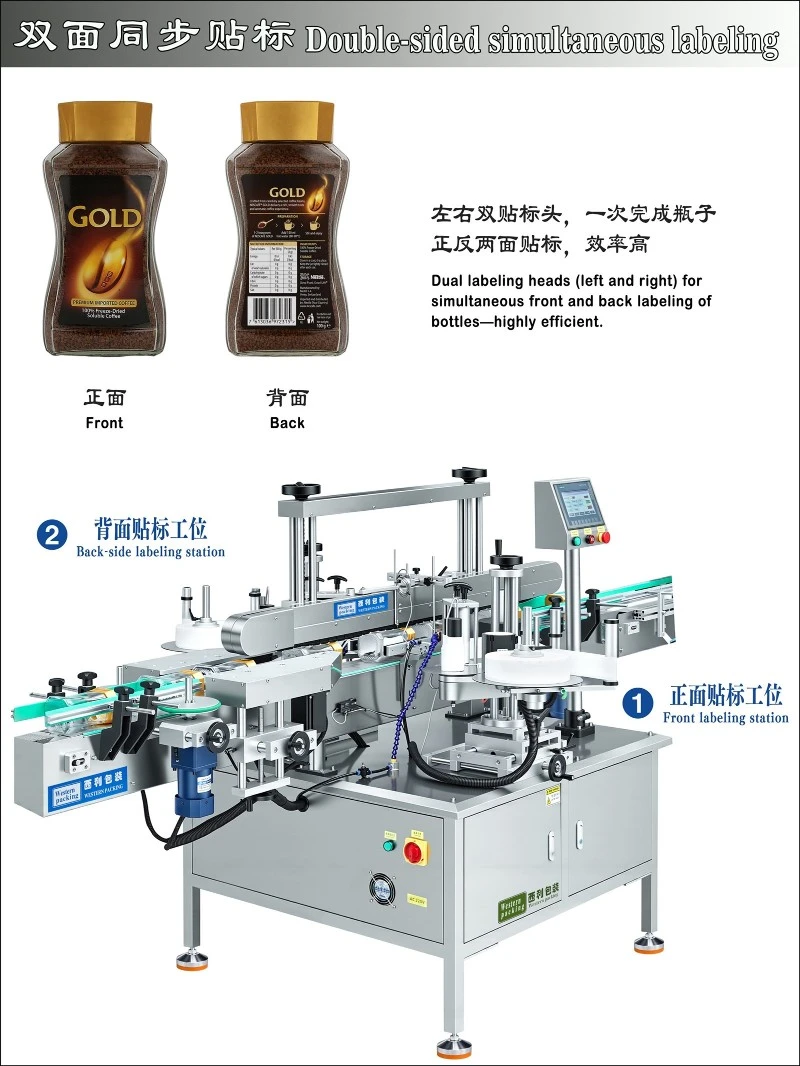

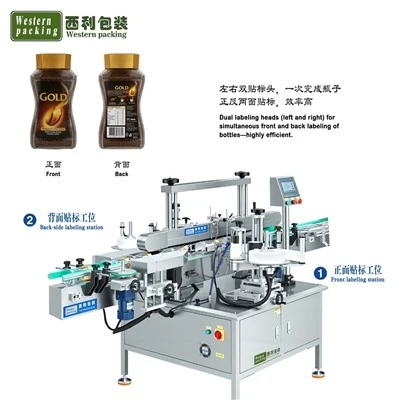

The granule filling machine labeling unit consists of mechanisms for label supply, transport, detection, and application; the specific configuration depends on the type of label and the shape of the container.

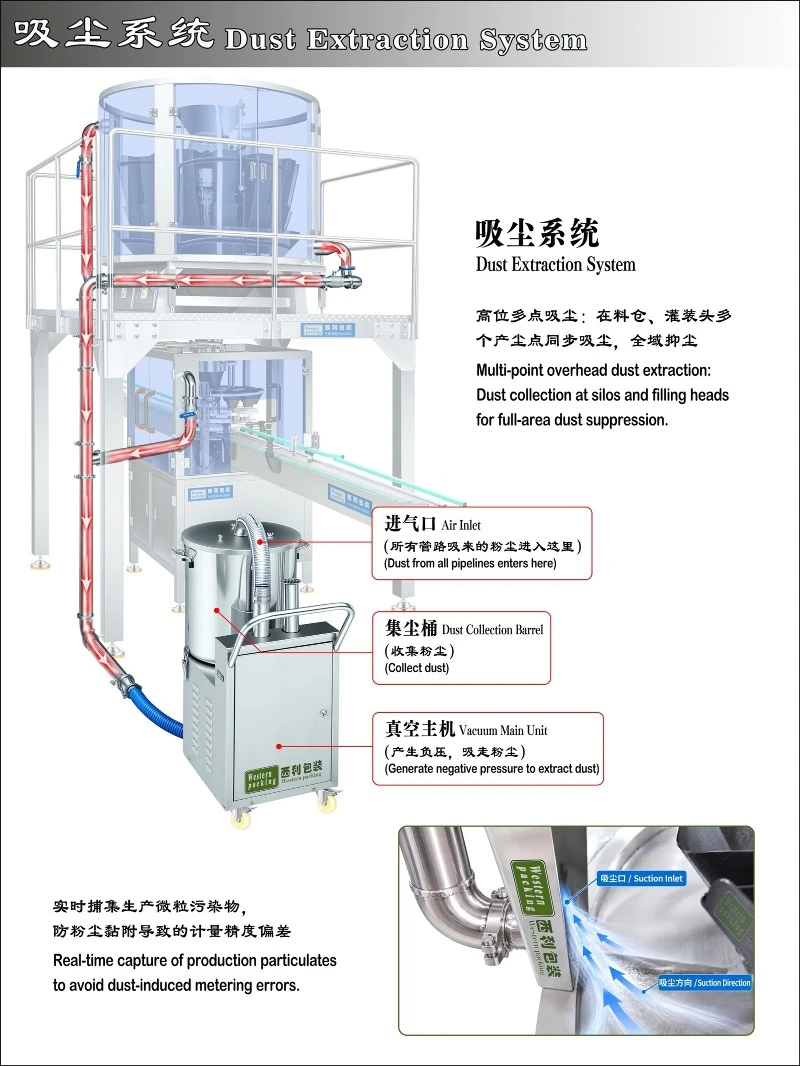

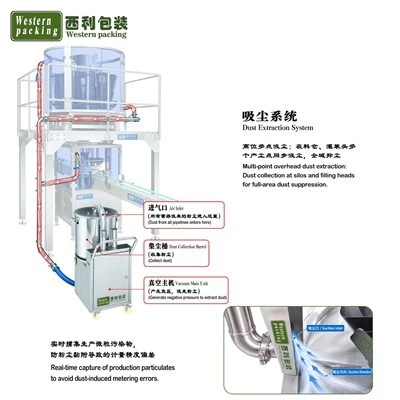

The dust collection system is designed to capture dust and fine particles generated during the processes of pneumatic conveying, material distribution, and quantitative filling, helping to minimize the dispersion of dust around the equipment and keep the work area clean.
