Packing Sealing Machine
video
Packing Sealing Machine

Packing Sealing Machine

A packing sealing machine is a high-speed packaging equipment for automated quantitative packaging of liquids, semi-fluids, and low-viscosity materials.
Send Inquiry
Product Introduction

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of packing sealing machine in China. We warmly welcome you to buy high quality packing sealing machine made in China here from our factory. We also accept customized orders.



small sachet olive oil packaging machine1

Products Description

The multi-lane back-seal liquid packing sealing machine is an intelligent packaging device integrating automatic bag making, liquid metering, automatic filling, heat sealing, and cutting output. The machine uses an automatic roll film feeding system, forming a back-seal bag structure through a longitudinal sealer, followed by sealing and bag cutting by a transverse sealing mechanism, achieving continuous automatic packaging.

The main body of the machine is typically made of 304 stainless steel, meeting food-grade and hygiene-grade production requirements. Parts in contact with materials can be made of 316L stainless steel according to industry needs, effectively improving corrosion resistance. The machine has a compact structure and small footprint and is suitable for workshop assembly line layouts.

Working principle

The multi-lane back-seal liquid packaging machine uses an automatic film feeding system to deliver packaging film to the forming unit. The film is folded to form a bag shape, and a longitudinal heat seal completes the back seal. Subsequently, the liquid material is quantitatively filled into the packaging bag via a metering system. A transverse sealing mechanism then heat-seals the bag opening and simultaneously cuts it to form an individually packaged finished product.

The equipment employs a multi-lane synchronous operation mode, allowing for simultaneous bag making, filling, and sealing, significantly improving packaging efficiency.

Products parameters

Filling Accuracy ≤±1% Power 380V, 28KW
Capacity 200-400 bag/min Weight 480-880 kg
Size of Bag L 50-200 mm W 20-80 mm Lanes 4/6/8/10/12 lanes
Range of measure 1-100 ml/bag Model WP-480YB

Products Details

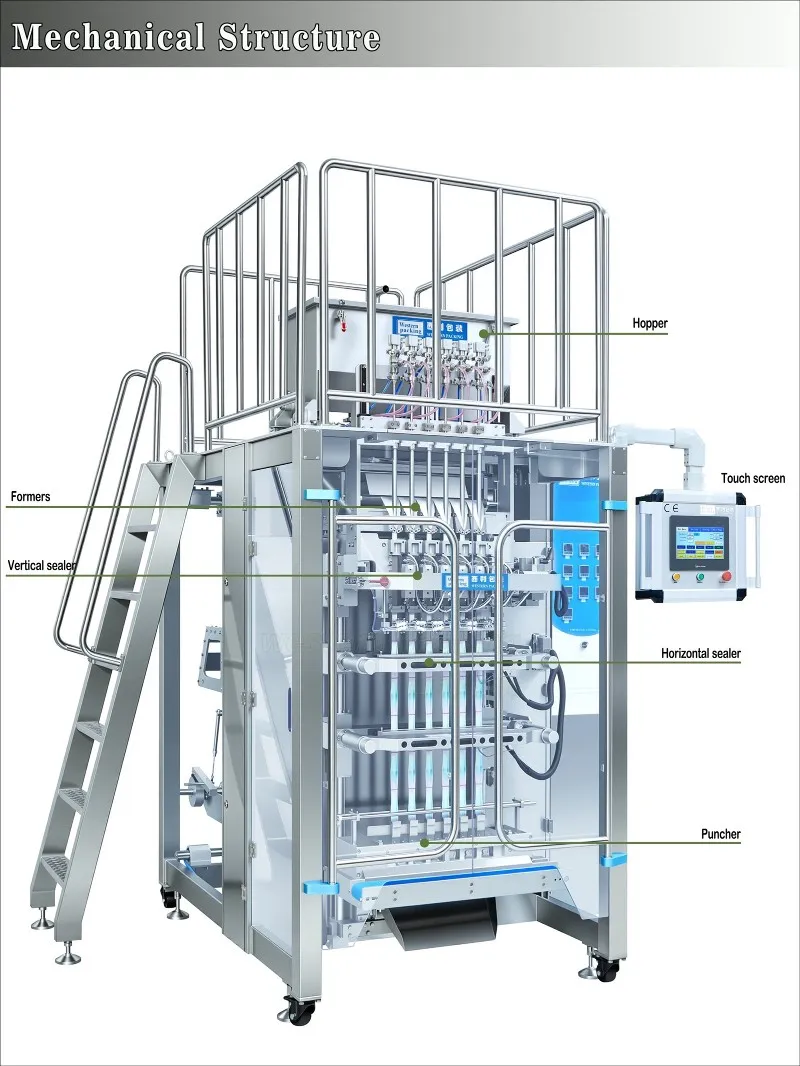

multi lane packing machine
The entire machine is made of high-quality stainless steel, with a clean appearance, strong corrosion resistance and rust prevention, and meets the hygiene standards of the food and pharmaceutical industries.
multi lane sachet packaging machine
The liquid sachet packing sealing machine specialized pump bodies are configured according to different liquid properties to ensure a stable and smooth filling process.
stick packaging machine
Made with high-strength cutting material, it produces clean and smooth cuts, is resistant to wear and tear over long-term use, and reduces maintenance frequency.

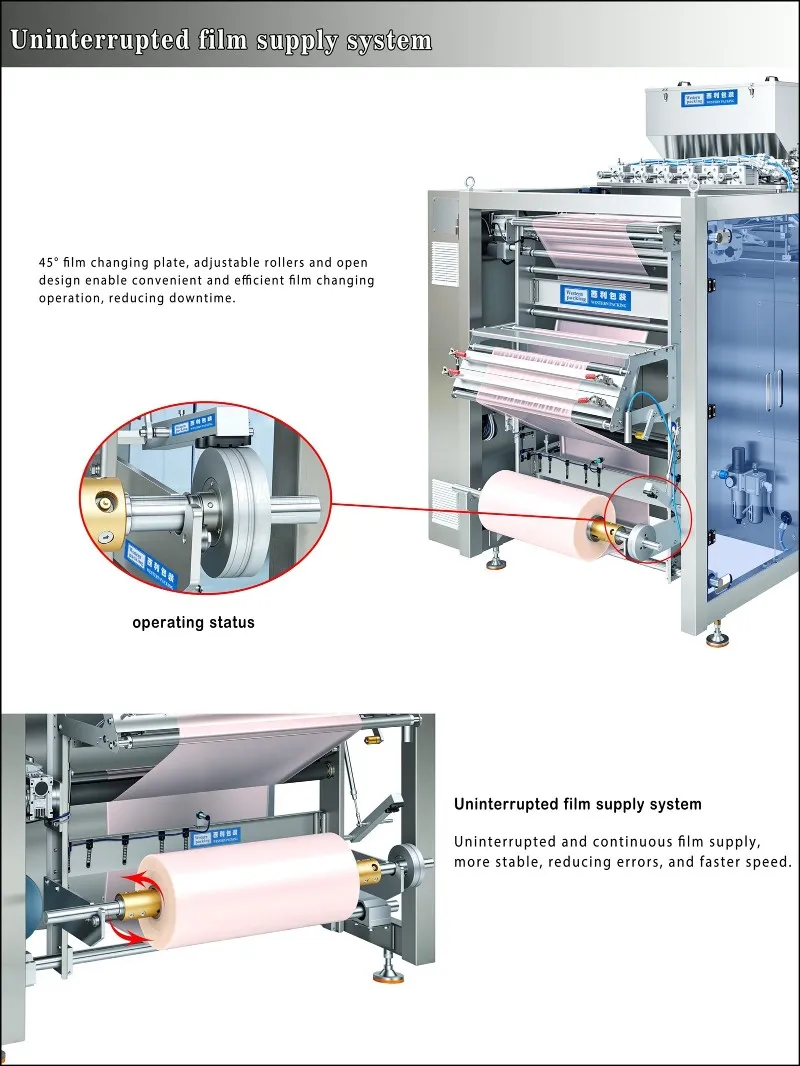

stick pack packaging machine
The high-sensitivity photoelectric detection system automatically identifies the color marks on the packaging film, ensuring the integrity and uniformity of the packaging pattern.

Company Introduction

Western Packing brings you a new concept of Chinese manufacturing-not just the price advantage of China, but also the quality and service you'd expect from Germany. Not only made in China, but truly created in China!

  • liquid paking machine
    Liquid
    The machine can pack various bag types
  • powder packing machine
    Powder
    High degree of automation, continuous and fast packaging
  • granule packing machine
    Granule
    Widely used in food, chemical, pharmaceutical and other industries
  • Western packing
    Packaging Materials
    A variety of packaging materials can be provided

Taking photos with customers

Every collaboration and every group photo is a testament to our shared commitment and mutual benefit. We look forward to deepening our cooperation and creating a brighter future together. We treat all our clients with the same seriousness as we would a friend, and they trust us implicitly.

1-48

1-58

1-119
1-38
1-3

1-23

1-35
1-42
Machine Component
NO. Item Brand
1 PLC SIEMENS(Germany)
2 HMI SIEMENS(Germany)
3 Temperature controller OMRON
4 Promiximity Switch OMRON
5 Relay OMRON
6 Powder Switch SCHNEIDER
7 Pneumatic Component Air Tec
8 Server Pull Motor Delta
