Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of flexible packaging machine in China. We warmly welcome you to buy high quality flexible packaging machine made in China here from our factory. We also accept customized orders.

Products Description

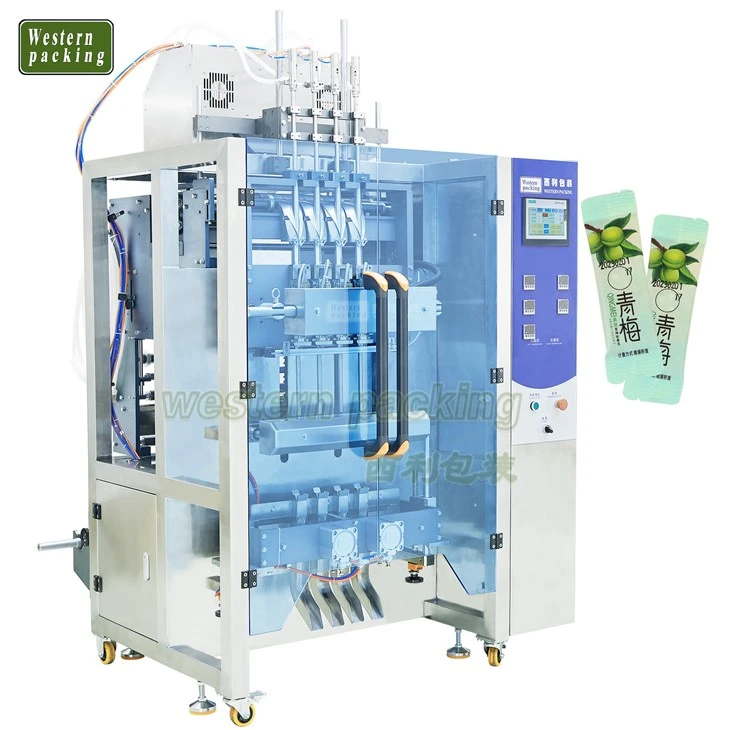

Flexible packaging machines are a popular and essential product in the packaging industry. They are widely used in various industrial areas, including food, cosmetics, pharmaceuticals, and household commodities. This packaging machine is highly effective and efficient in terms of packaging products.

automatic packaging system

Product Features:

Flexible packaging machines are designed with advanced technology to provide high-quality packaging to various industries. They have unique features that make them stand out from other packaging machines. Some of the features of flexible packaging machines are:

1. High speed and accuracy
2. Automated operation
3. Multiple packaging styles
4. Easy to operate
5. Low maintenance
6. Food-grade material construction
7. Seal temperature control

Products Parameters

Bag Style	back sealing	Voltage	AC 380v 3 phases 50Hz
Filling Accuracy	≤±1%	Power	380V 28KW
Capacity	200-400 bag/min	Weight	480-880KG
Size of Bag	L50-200mm W20-80mm	Lanes	4/6/8/10/12 lanes
Range of measure	1-100ml/bag	Model	WP-480YB

Detail Images

Mechanical Structure

Pump option: Piston/ceramicand magnetic pumps
Up-down moving
Filling tubes
Touch screen HMI
Bag formers
Vertical sealer
Horizontal sealer/Film pulling unit
Round corner pouncher
Moving wheels

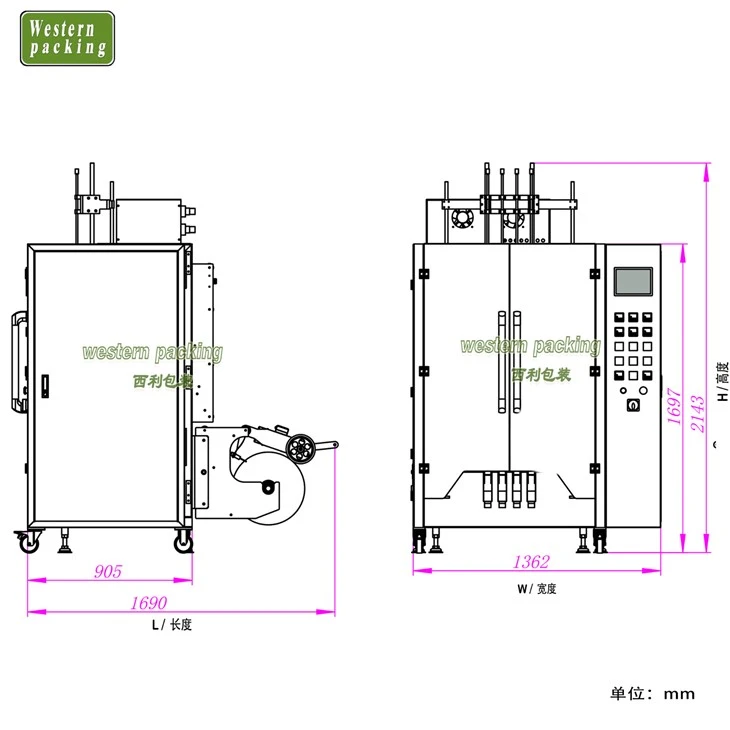

Machine dimensions

Food grade SS304 machine frame,all the contact parst SS316L.stainless steel seamless tube 0.3mm

Part of the details

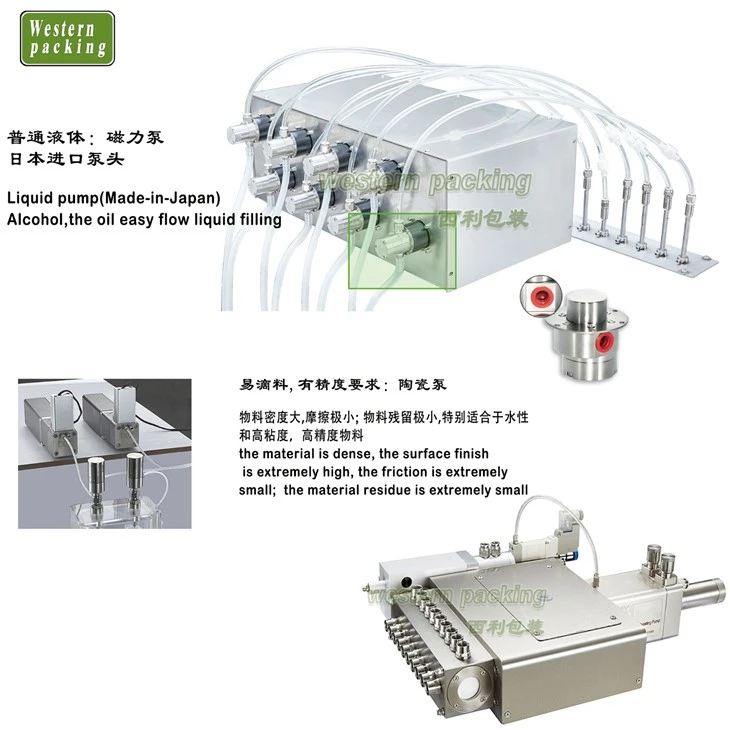

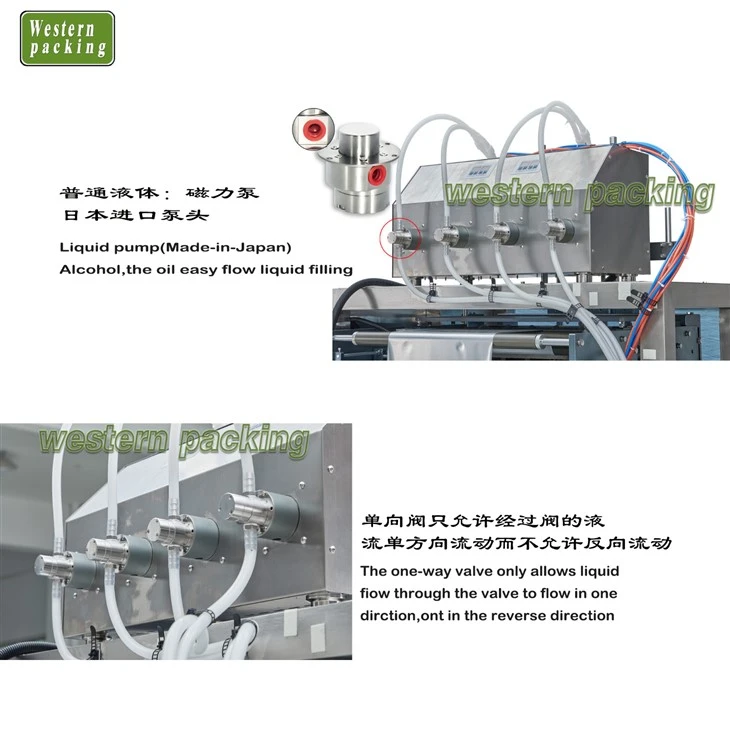

Liquid pump(Made-in-Japan)
Alcohol, oil easy flow liquid filling

Part of the details

Special film unwinding systerm,mechanism control
whatever the the size of the film roll.
Steady, continuous and no jumping

Part of the details

All solid state relays have heat sinks underthem for increased service life twice

jelly pouch packing machine jelly candy packing machine

jelly candy packing machine packing jelly machine

Part of the details

Using Japanese Omron, more sensitive in temperature and can beaccurate to 0.1℃

Part of the details

Siemens PLC，Siemens HMI operate screen
User friendly film unwinding structure,fast film roll changing, film roll detectionsensor, operator friendly film joint design.

All motors is JSCC brand .
Made in Germany

packing jelly machine sipup packing machine

sipup packing machine sipup packing machine price

Packaging Samples

Straight cutting
Zigzag cutting
Round corner
Irregular cutting

Company Introduction:

Our company is a leading manufacturer of packaging machinery that specializes in producing high-quality, reliable, and user-friendly machines. We have been in operation for many years, and our experience and expertise in the industry enable us to develop and produce machines that meet the needs of our clients. Our products are widely used in various industries globally, and we have built a strong reputation based on the quality of our machines, after-sale services, and customer satisfaction.

Working Principle:

Flexible packaging machines operate on a simple principle; the machine seals a package and forms it into the desired shape. The machine starts with the packaging film roll, which is fed through the machine. The film is molded in a die and sealed to create the package. The machine's rollers and heating elements are responsible for creating airtight seals on the packages.

After-Sale Service:

We offer a comprehensive after-sale service that includes installation, commissioning, training, and maintenance of the machines to ensure their optimal performance. Our technical team is readily available to offer assistance and support to our clients whenever required.

Application Industries:

Flexible packaging machines are widely used in various industries. These industries include pharmaceuticals, cosmetics, food, and household commodities. These machines are designed to handle a wide range of packaging types, from small sachets to larger bags.

FAQ

Q: Can this machine fill products of different viscosity levels?

A: Yes, this machine can fill products of different viscosity levels thanks to its adjustable filling volume feature.

Q: What is the maximum bag size that the machine can produce?

A: The machine can produce bags of varying sizes, with the maximum bag size being 200mm × 80mm.

Q: How long does it take to manufacture and deliver the machine?

A: Our manufacturing process takes approximately 15-30 days, and delivery times depend on the shipping arrangements and destination.

conclusion

Flexible packaging machines have revolutionized the packaging industry, providing businesses with a cost-effective and efficient way to package products. The machines are highly versatile, making them indispensable for various industries. The benefits of flexible packaging machines are numerous, including high production speed, accuracy, and minimal waste. The product is critical in enhancing productivity, brand promotion, and reducing the environmental impact of packaging.

**Machine Component**
NO.	Item	Brand
1	PLC	SIEMENS(Germany)
2	HMI	SIEMENS(Germany)
3	Temperature controller	OMRON
4	Promiximity Switch	OMRON
5	Relay	OMRON
6	Powder Switch	SCHNEIDER
7	Pneumatic Component	Air Tec
8	Server Pull Motor	Delta
