Jelly Candy Packing Machine
Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of jelly candy packing machine in China. We warmly welcome you to buy high quality jelly candy packing machine made in China here from our factory. We also accept customized orders.
Products Description
Jelly Candy Packing Machine
Jelly Candy Packing Machine
1. This machine's fill range is 1-100ml, but the fill range can adujust according to your needs.
2. PLC control with stable, reliable, high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Low cost high gain, high speed and efficiency.
5. We use famous brand components, ensure the quality and durability of the machine.
Products Parameters
| Bag Style | back sealing | Voltage | AC 380v 3 phases 50Hz |
| Filling Accuracy | ≤±1% | Power | 380V 28KW |
| Capacity | 200-400 bag/min | Weight | 480-880KG |
| Size of Bag | L50-200mm W20-80mm | Lanes | 4/6/8/10/12 lanes |
| Range of measure | 1-100ml/bag | Model | WP-480YB |
Detail Images
Mechanical Structure
- Pump option: Piston/ceramicand magnetic pumps
- Up-down moving
- Filling tubes
- Touch screen HMI
- Bag formers
- Vertical sealer
- Horizontal sealer/Film pulling unit
- Round corner pouncher
- Moving wheels

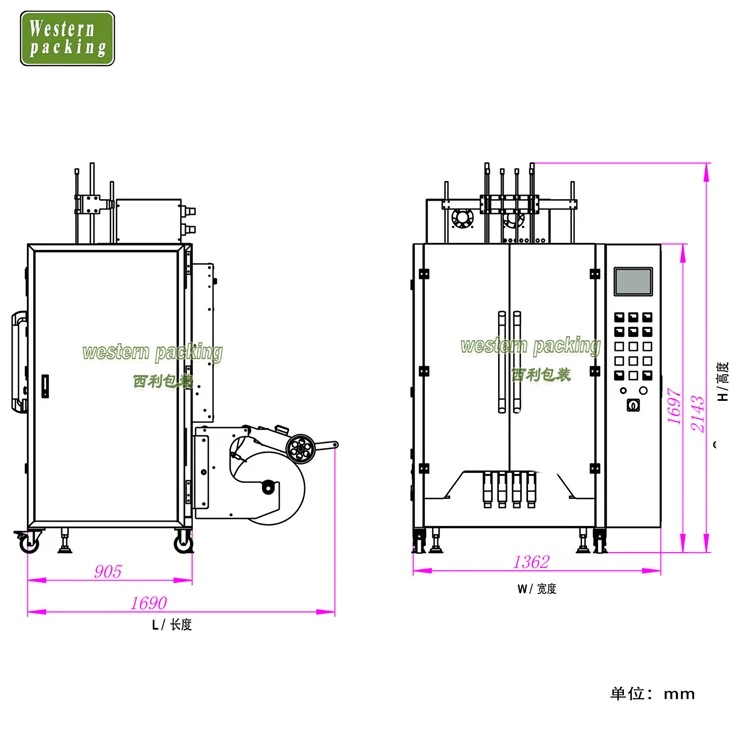

Machine dimensions

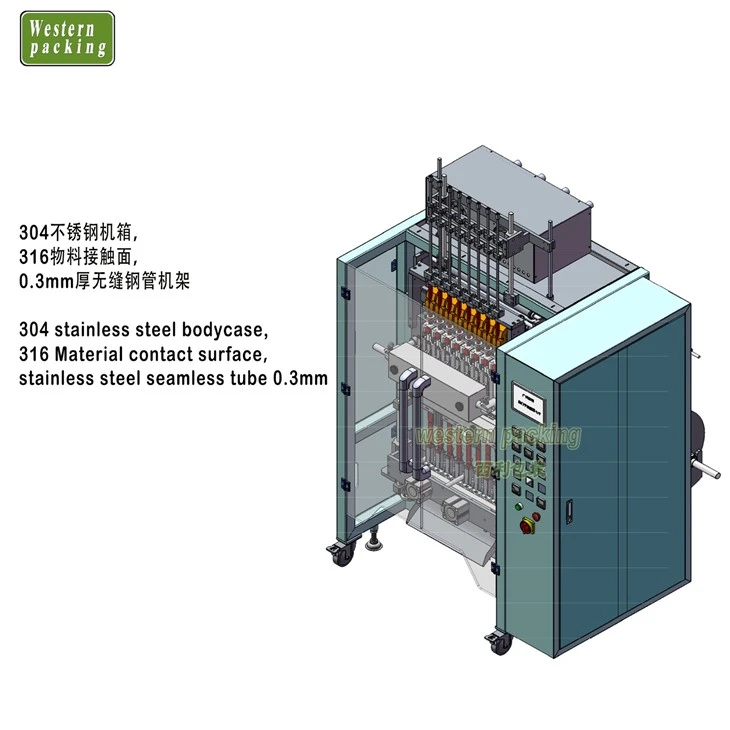

Food grade SS304 machine frame,all the contact parst SS316L.stainless steel seamless tube 0.3mm
Part of the details

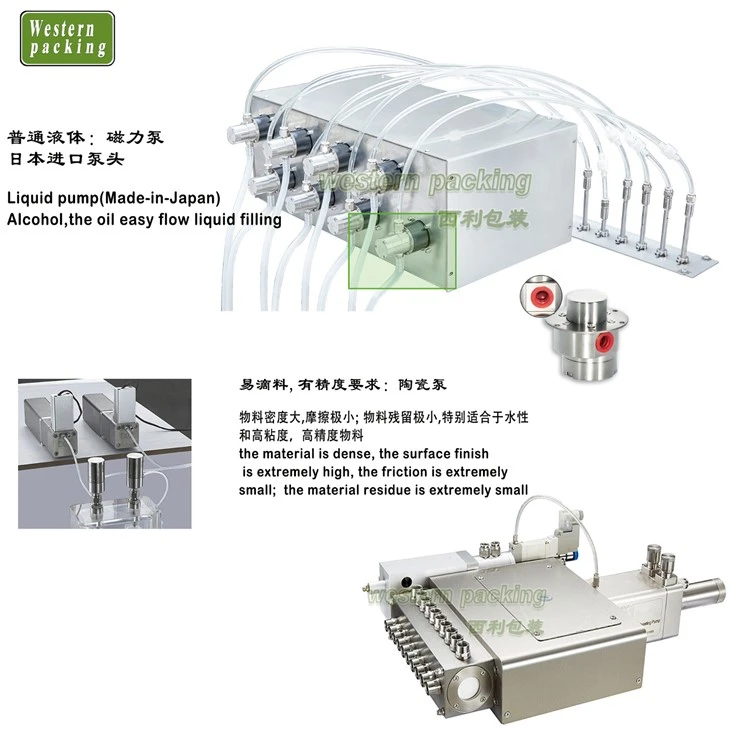

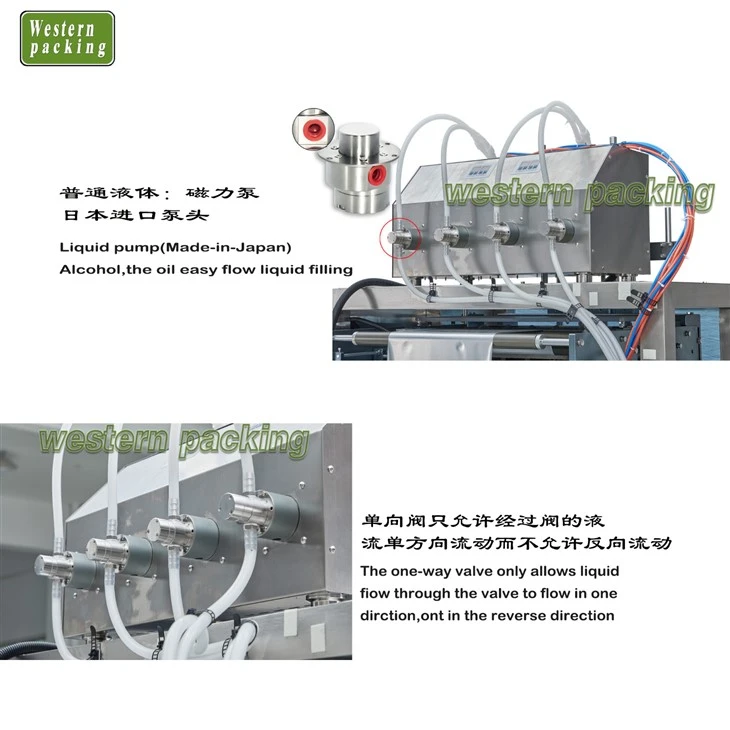

- Liquid pump(Made-in-Japan)
- Alcohol, oil easy flow liquid filling
Part of the details
- Special film unwinding systerm,mechanism control
- whatever the the size of the film roll.
- Steady, continuous and no jumping
Part of the details
All solid state relays have heat sinks underthem for increased service life twice
Part of the details
Using Japanese Omron, more sensitive in temperature and can beaccurate to 0.1℃
Part of the details
- Siemens PLC，Siemens HMI operate screen
- User friendly film unwinding structure,fast film roll changing, film roll detectionsensor, operator friendly film joint design.
- All motors is JSCC brand .
- Made in Germany
Packaging Samples
- Straight cutting
- Zigzag cutting
- Round corner
- Irregular cutting
Company Profile
Company profile
We are a leading industrial machinery manufacturer that specializes in designing and producing machines that cater to the needs of the food and beverage industry. Our extensive experience and expertise in the field enable us to produce high-quality machines with cutting-edge technology.
product description
Jelly Candy Packing Machine Features
- Fully automated and programmable control system.
- High accuracy in filling and packing the product.
- Able to handle a wide variety of packaging materials.
- User-friendly interface and easy to operate.
Product Advantages
- Saves time and increases efficiency.
- Reduces labor costs significantly.
- Helps to achieve consistent and uniform product packaging.
- Increases the shelf-life of the packed product.
FAQ
Q: Can the machine handle viscous products?
Q: What is the maximum filling capacity of the machine?
Q: Can the machine handle different packaging bag sizes?
| NO. | Item | Brand |
| 1 | PLC | SIEMENS(Germany) |
| 2 | HMI | SIEMENS(Germany) |
| 3 | Temperature controller | OMRON |
| 4 | Promiximity Switch | OMRON |
| 5 | Relay | OMRON |
| 6 | Powder Switch | SCHNEIDER |
| 7 | Pneumatic Component | Air Tec |
| 8 | Server Pull Motor | Delta |
