Product Description

Sipup Packing Machine

The Sipup Packing Machine is a versatile and flexible packaging equipment that can handle a wide range of products and packaging materials. It is designed to handle liquid, semi-liquid, and powder products such as oil, sauce, ketchup, coffee, powders, and other types of products. The machine is highly customizable and provides excellent control features that allow it to meet different product demands.

automatic liquid packaging machine

Products Parameters

Bag Style	4-side seal	Voltage	AC 380v 3 phases 50Hz
Filling Accuracy	≤±1%	Power	380V 28KW
Capacity	200-400 bag/min	Weight	480-880KG
Size of Bag	L50-200mm W20-80mm	Lanes	4/6/8/10/12 lanes
Range of measure	1-100ml/bag	Model	WP-680YS

Detail Images

Mechanical Structure

Filling tube
Film feeding device
Touch screen HMI
Vertical sealer
Horizontal sealer
Control panel
Warm sealer mold
Cold sealer mold
Cutter assembly
Foot cups
Conveyor

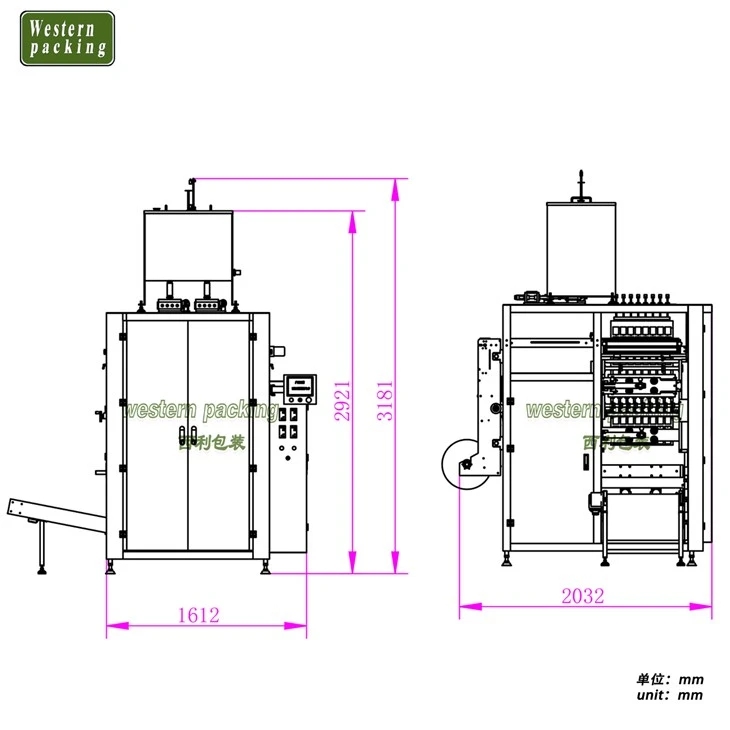

Machine dimensions

Food grade SS304 machine frame,all the contact parst SS316L.stainless steel seamless tube 0.3mm

Part of the details

Up and down two sets of bag-pulling wheels
Pull the bag smoothly,make thebag shape flat and beautiful

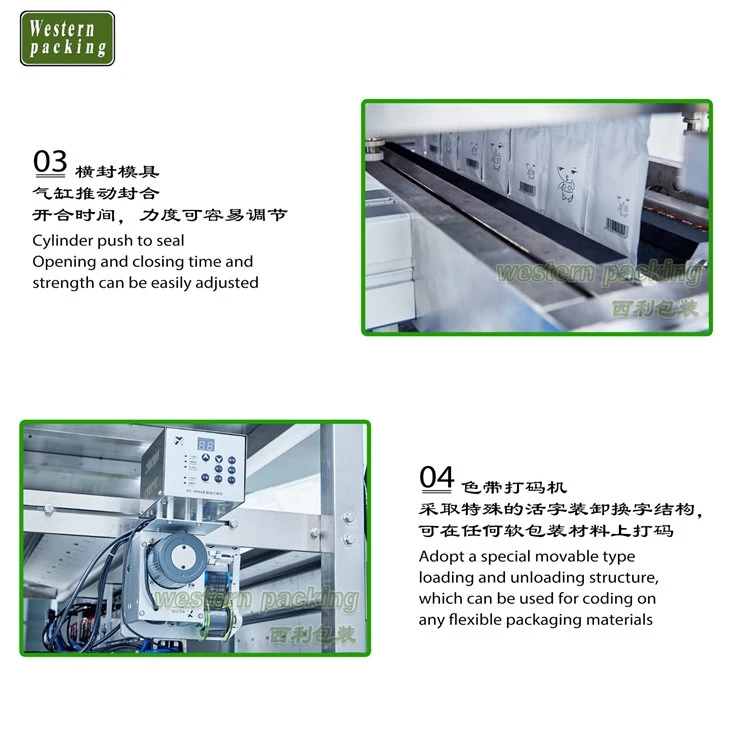

Film compress device

Adopt a special movable typeloading and unloading structure,which can be used for coding onany flexible packaging materials

Part of the details

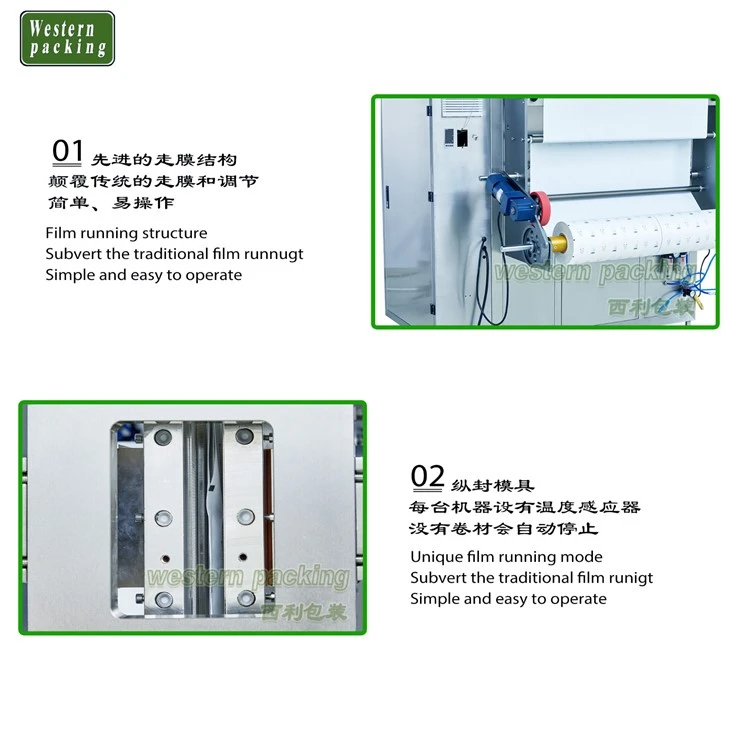

Unique film running mode
Automatically stops when there is no roll material
Simple and easy to operate

beverage packaging machine beverage packaging machinery

beverage packaging machinery jelly packing machine

Part of the details

Unique film running mode
Automatically stops when there is no roll material
Simple and easy to operate

Part of the details

Up and down two sets of bag-pulling wheels
Pull the bag smoothly,make thebag shape flat and beautiful

jelly packing machine juice filling and sealing machine

juice filling and sealing machine juice packaging machine

Packing samples

Range of measure： 1-100ml/bag

Size of Bag： L50-200mm
Size of Bag： W20-80mm

Straight cutting / zigzag cutting

Company Introduction

Our company is a leading producer of industrial machines and equipment, and we are committed to providing our clients with high-quality and innovative products. The Sipup Packing Machine is one of our most popular machines, and it is widely used in various industries across the world.

Product Performance

The Sipup Packing Machine is designed with the most advanced technologies to provide optimal performance, efficiency, and accuracy. It features automatic controls, high-speed operation, and adjustable parameters that enable it to produce consistent quality products with minimal product waste. With its high-speed performance, the Sipup Packing Machine can fill and seal up to 60 bags per minute, depending on the product characteristics.

Product Functionality

The Sipup Packing Machine has a wide range of functions. It can package liquids or pastes in sachets of various sizes and shapes. It can also perform automatic cutting, sealing, and filling of the sachets. Additionally, the machine is also capable of printing product information on the sachets.

Product Applications

The Sipup Packing Machine is widely used in various industries and sectors, including:

Food and beverage industry: ice cream, pastry, confectionery, bakery, sauce, and condiment packaging
Pharmaceutical industry: pills, powders, tablets, and capsules packaging
Chemical and agriculture industry: fertilizer, pesticide, and chemical packaging
Cosmetics and personal care industry: shampoo, lotion, moisturizer, and beauty products packaging.

Product Scene

The Sipup Packing Machine can be used in various packaging scenes, such as:

Factory production lines where high-speed, high-volume packaging is required
Retail stores where product packaging occurs on-site
Online stores where product packaging and shipping occur.

FAQ

Q: Is the Sipup Packing Machine easy to operate?

A: Yes, the machine has a user-friendly interface that can be easily operated by anyone.

Q: What kind of products can the machine package?

A: The machine is specifically designed to package liquids or pastes in small sachets at high speed. It can package a wide range of products such as shampoo, jelly, lotion, hand washing, liquid soap, liquid flavors, juice, oil, jam, honey, soy sauce, mayonnaise, and many more.

Q: What industries commonly use the Sipup Packing Machine?

A: The machine is widely used in various industries such as the food and beverage industry, cosmetic industry, and pharmaceutical industry.

Conclusion

The Sipup Packing Machine is an innovative and excellent packaging equipment that provides optimal performance, efficiency, and flexibility. It delivers precise, safe, and high-quality packaging solutions to various industries and sectors. With its exceptional features, reliable operation, and wide applicability, the Sipup Packing Machine is a must-have for any business that requires superior packaging solutions.

**Dry Powder Packing Machine Component**

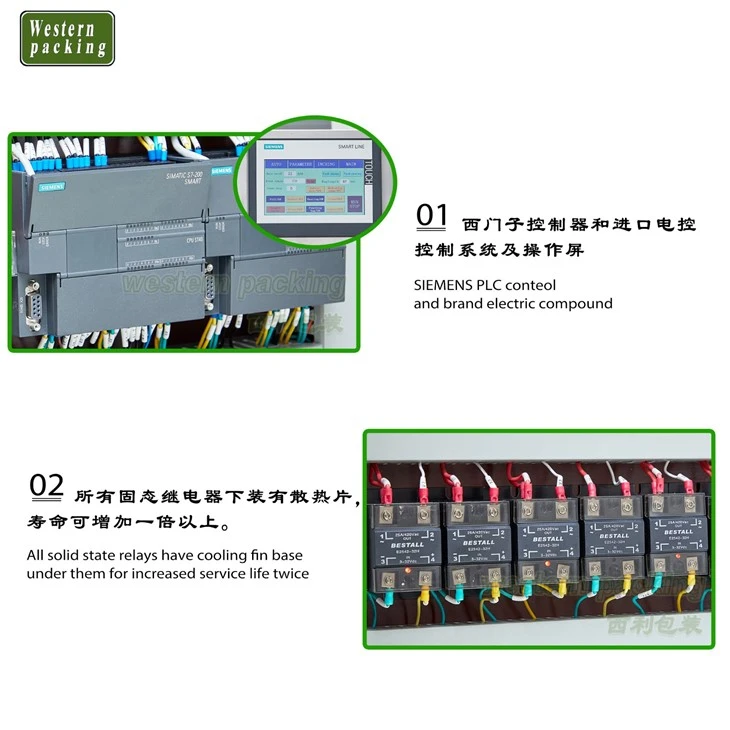

NO.	Item	Brand
1	PLC	SIEMENS(Germany)
2	HMI	SIEMENS(Germany)
3	Temperature controller	OMRON
4	Promiximity Switch	OMRON
5	Relay	OMRON
6	Powder Switch	SCHNEIDER
7	Pneumatic Component	Air Tec
8	Server Pull Motor	Delta
