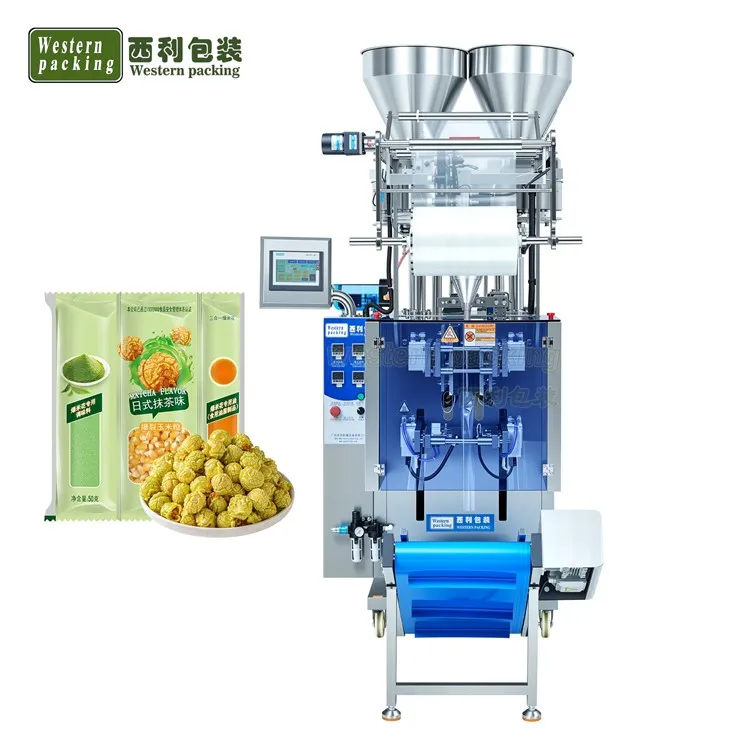

Corn Flakes Packing Machine
Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of corn flakes packing machine in China. We warmly welcome you to buy high quality corn flakes packing machine made in China here from our factory. We also accept customized orders.
work principle

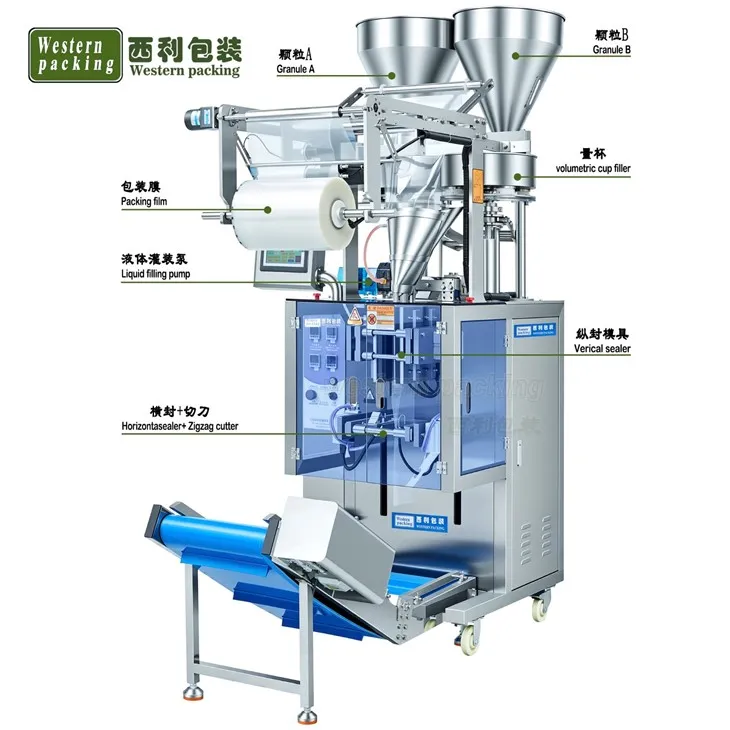

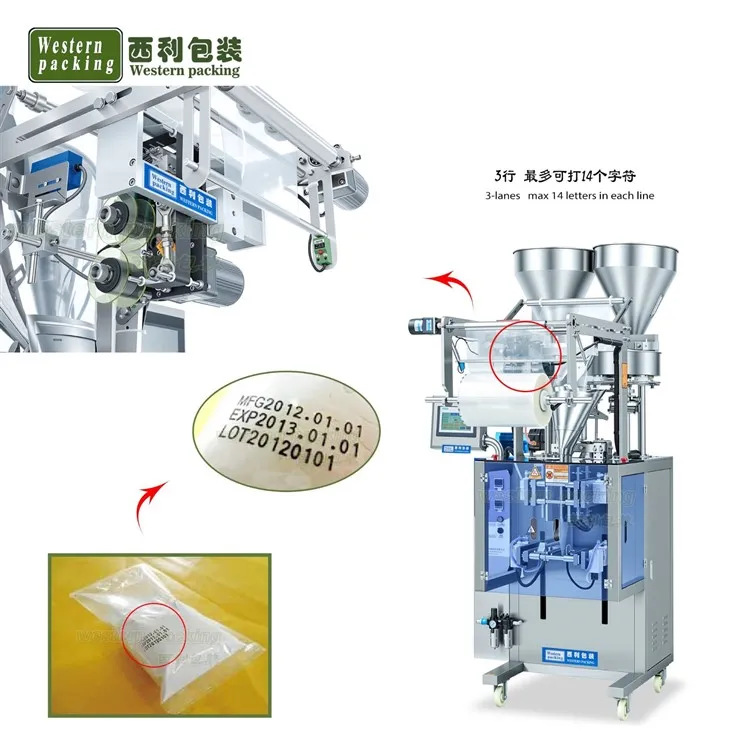

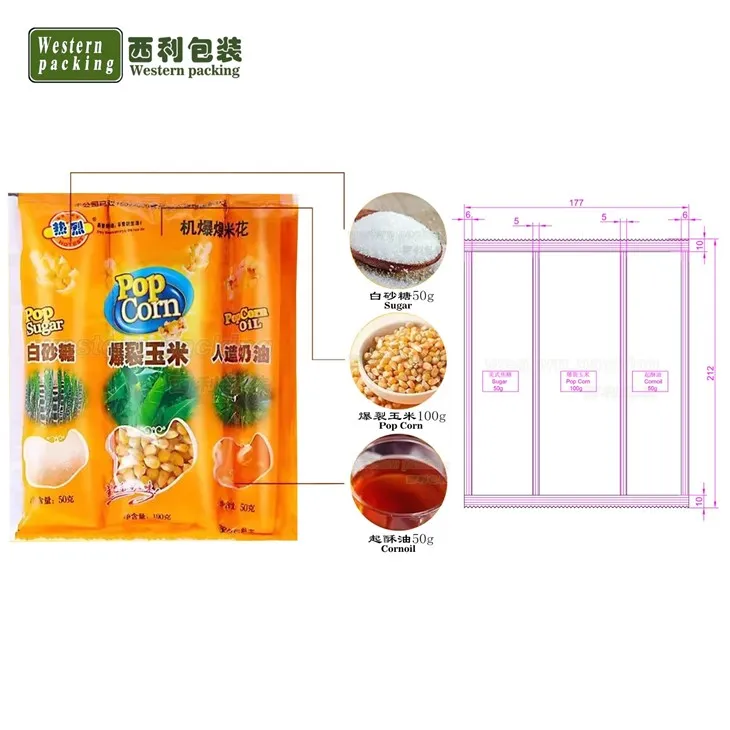

The corn flakes packing machine uses a PLC and servo drive as the control core, completing the entire process of automated operations according to a set rhythm. The film is conveyed through tension control and photoelectric alignment to the zoned forming device, first completing the longitudinal center seal and the middle compartment seal, dividing the bag into left, middle, and right chambers; granules are accurately dispensed by a volumetric cup into the left and right chambers simultaneously, while the middle liquid is quantitatively injected into the middle chamber by a pump. After filling each chamber, the horizontal heat sealing mechanism completes the top and bottom seals according to the set temperature and pressure, while the coder simultaneously prints the batch number and date. Finally, the servo cutter cuts along the sealing line, and the finished product is output via the conveyor. Throughout the process, sensors monitor film position, material levels, sealing temperature, and filling volume in real time, automatically triggering alarms and stopping the machine in case of abnormalities, ensuring each bag has independently partitioned materials, accurate measurement, and intact sealing.
product features

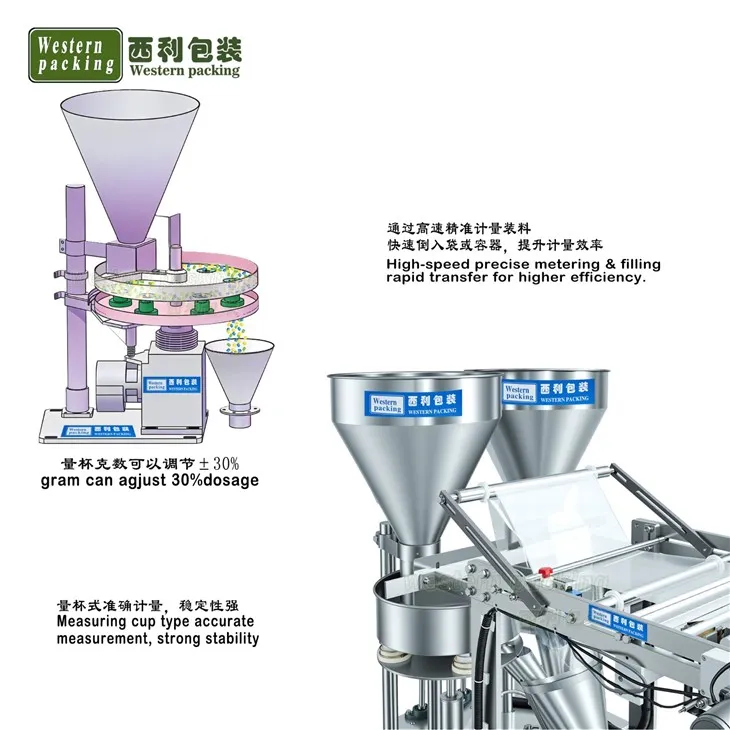

1. High-precision measurement: Granules are measured with a measuring cup, and liquids are measured with a pump, with a measurement accuracy of ±0.5%~1%, stable and reliable.
2. Fully automated process: Automatic film feeding, forming, filling, sealing, coding, cutting, and counting; one-touch start and stop, reducing manual intervention.
3. Excellent sealing quality: Constant temperature PID control, dual-cylinder pressure sealing; firm edges with no leakage, suitable for high and low temperature, oily, and aqueous materials.
4. Strong adaptability: Bag length, bag width, measurement volume, and sealing temperature can be adjusted via touchscreen; quick changeover; compatible with various composite films and bag types.
5. Safety, hygiene, and compliance: Material contact parts made of 304 stainless steel, easy to disassemble and clean with no dead corners, compliant with food/pharmaceutical GMP hygiene requirements.
Products Parameters
| Name | corn flakes packing machine |
| Model Number | WP-480K-3 |
| Capacity (bag/min) | 20-30 pcs per min |
| Range of measurement (ml) | Customization is available upon negotiation. |
| Bag size (mm) | (L) 40-140, (W) 40-80 |
| Power (W) | 1100 |
| Source voltage | 380V/50Hz, 220V/50-60Hz |
| Packing material | Paper/PE, PET/AL foil/PE, PET/PE, NYLON/PE, tea-leaf filtering paper, etc. |
| Net weight (kg) | 220 |
| Overall Dimensions | 825X950X1800 mm (LxWxH) |
