Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of machine for food packaging in China. We warmly welcome you to buy high quality machine for food packaging made in China here from our factory. We also accept customized orders.

product introduction

The machine for food packaging utilizes a modular design to organically integrate a granule metering system with a liquid filling system, completing zoned filling and bagging on a single production line.

This equipment is widely used in the food, condiment, daily chemical, and pharmaceutical industries, for example, in sauce + dry ingredients, hot pot base combination packs, and three-in-one seasoning packaging, significantly enhancing product added value and packaging differentiation.

Working principle

During operation, the film feeding system first feeds the packaging film into the forming unit, where it is positioned by guide rollers to form a bag-shaped channel with a partitioned structure. Then, the multi-material synchronous filling stage begins:

Particles on the left and right sides are fed to their respective channels via independent feeding devices (such as measuring cups) and dispensed according to a set weight; Liquid in the middle is delivered to a metering pump via pipeline and quantitatively injected within a set time; The three materials simultaneously enter the partially sealed bag in their respective independent channels without interference;

After filling, the horizontal sealing mechanism heat-seals the bag to form a complete bag, which is then cut to form an individual finished product. The entire process operates continuously and automatically, with sensors and a control system ensuring coordination and synchronization between each station, guaranteeing filling accuracy and sealing quality.

Products Parameters

Name	machine for food packaging
Model Number	WP-480K-3
Capacity (bag/min)	20-30 pcs per min
Range of measurement (ml)	Customization is available upon negotiation.
Bag size (mm)	(L) 40-140, (W) 40-80
Power (W)	1100
Source voltage	380V/50Hz, 220V/50-60Hz
Packing material	Paper/PE, PET/AL foil/PE, PET/PE, NYLON/PE, tea-leaf filtering paper, etc.
Net weight (kg)	220
Overall Dimensions	825X950X1800 mm (LxWxH)

Products Details

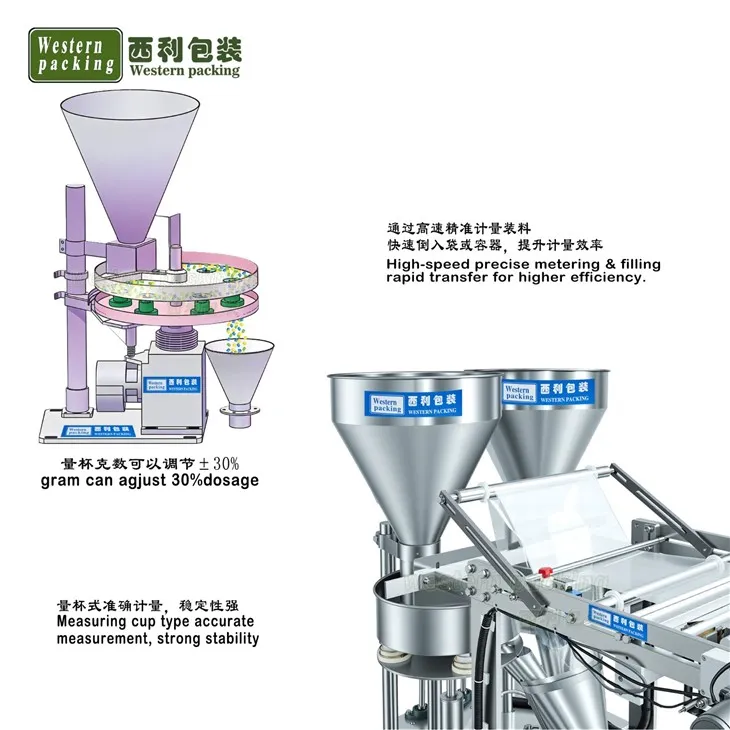

multi-material packing machine for popcorn

The segmented forming unit uses a precision structure to divide the packaging film into multiple independent channels, ensuring that different materials do not mix during the filling process.

Equipped with an automatic deviation correction device, the packaging film position is adjusted in real time to prevent deviation or wrinkling, ensuring bag making accuracy.

The ribbon drive assembly, through a combination of motor drive and tensioning structure, achieves stable ribbon delivery and synchronization with the packaging rhythm.

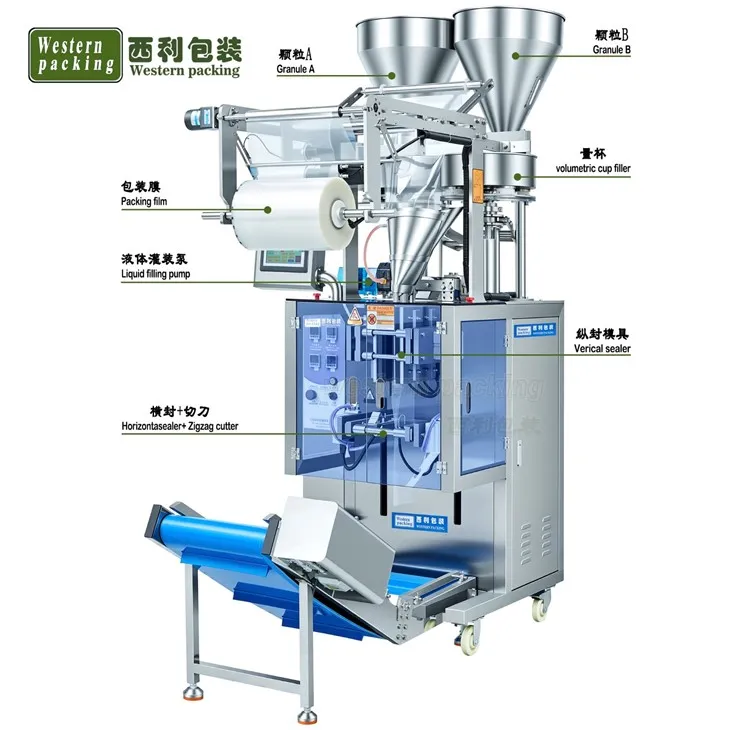

automatic popcorn sachet packing machine

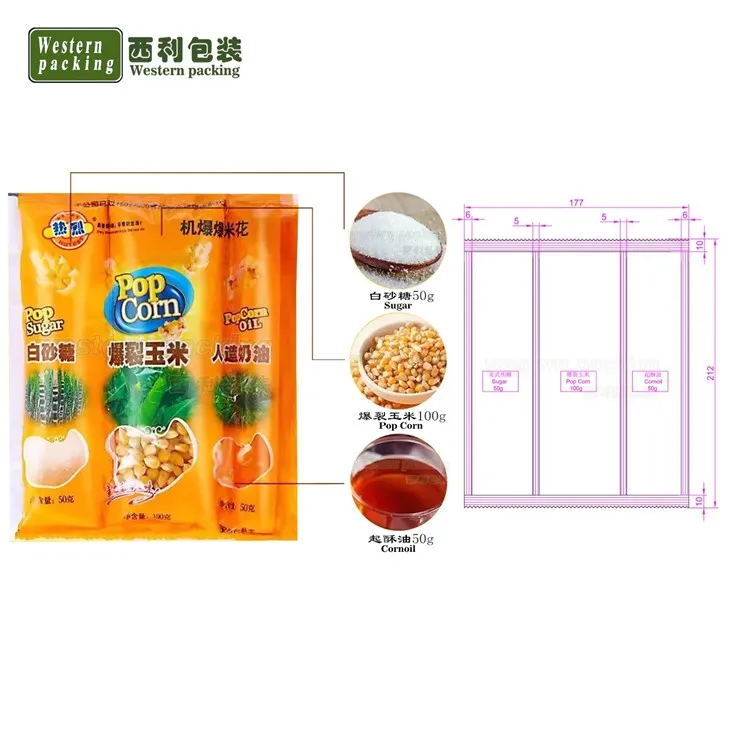

The three-section bag structure divides the bag into three independent zones: left and right granules, and a middle liquid zone, through internal partitions.
