Irregular Shape Pouch Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of irregular shape pouch machine in China. We warmly welcome you to buy high quality irregular shape pouch machine made in China here from our factory. We also accept customized orders.

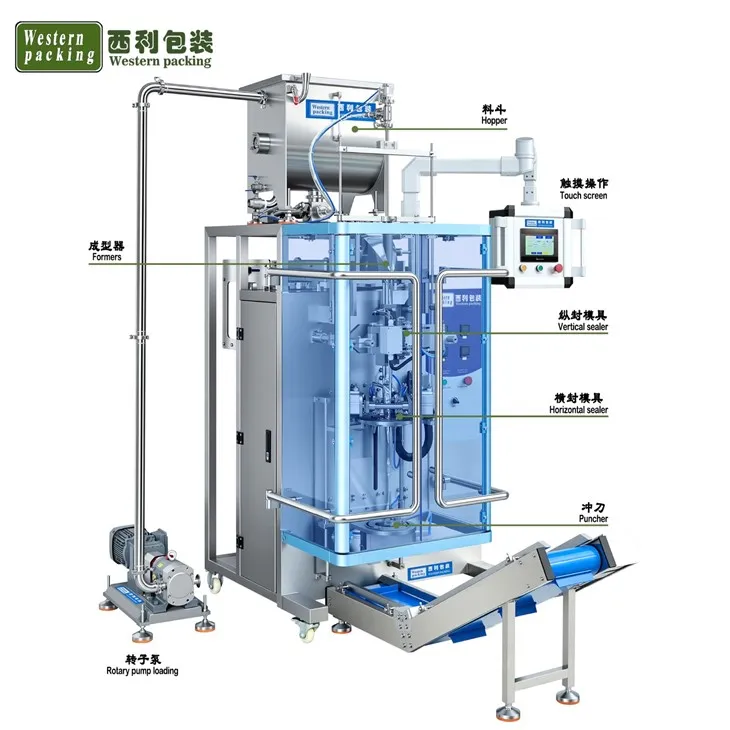

From a system composition perspective, the irregular shape pouch machine consists of seven main parts: a film supply system, a forming system, a sealing system, a filling system, a sealing system, a cutting system, and a control system. These parts are interconnected through synchronous control.

Regarding material handling, the equipment supports fine adjustment within a wide range of film roll widths and can be adapted to different bag widths by changing the forming components. For the liquid delivery section, the system can adjust the filling rhythm and back-suction action based on the material's rheological characteristics (such as viscosity and particle content) to prevent dripping or stringing.

Furthermore, the equipment supports batch parameter storage, allowing for quick recall of pre-defined parameters for different product specifications, reducing repeated debugging time and improving production changeover efficiency.

Precise Cycle Control: Stable operation of different materials at different speeds can be achieved by adjusting the sealing dwell time and filling sequence.

Highly Adjustable Sealing Position: The sealing structure can be offset or positioned within a designated area of ​​the bag to meet different design requirements.

High Sealing Consistency: Consistent sealing quality is ensured for each bag through the coordinated control of temperature, pressure, and time.

Rapid Response to Abnormal Conditions: The system can immediately detect and implement shutdown or alarm actions in cases such as film shortage, material blockage, or abnormal temperature.

Suitable for Multi-Specification Small-Batch Production: High efficiency can be maintained without relying on large-scale continuous production, adapting to flexible production modes.

High Structural Durability: Key moving parts are treated with wear-resistant materials to reduce precision degradation during long-term operation.

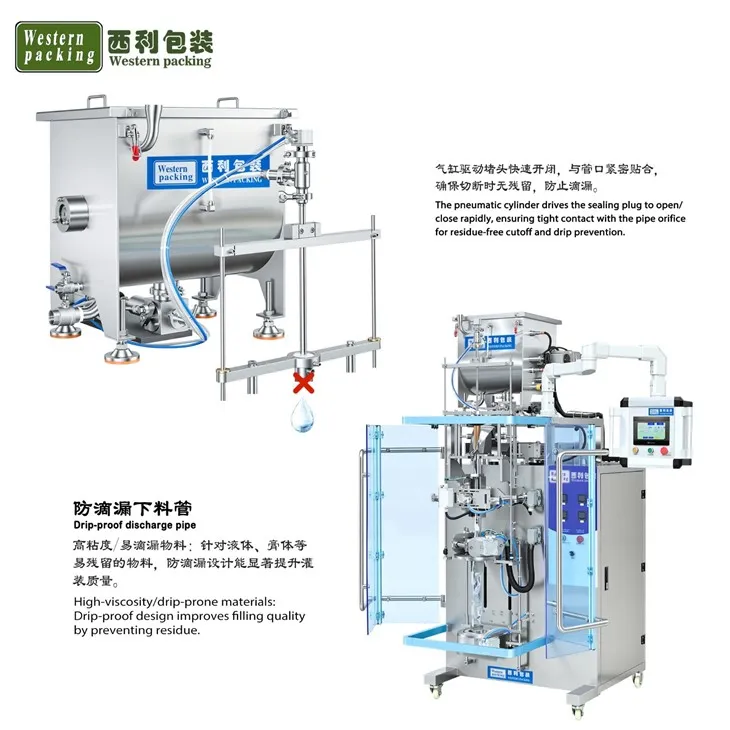

The filling head has a back-suction function, which creates negative pressure the instant the dispensing stops to prevent dripping.

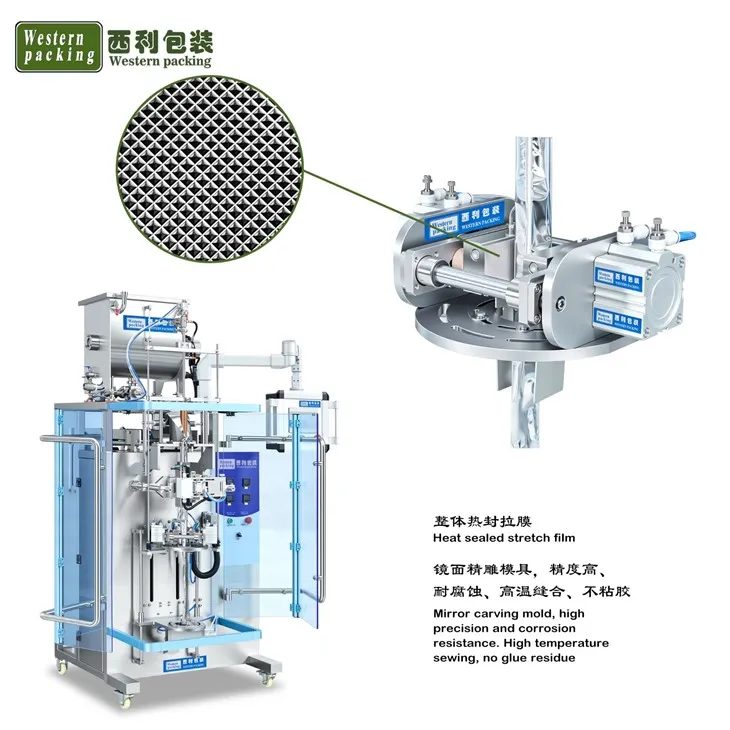

The irregular shape pouch machine horizontal sealing mold should maintain parallel movement when closing to avoid uneven sealing thickness.

The membrane feeding section adopts an adjustable structural design, combined with an automatic correction system, to ensure that the membrane material is always on the correct operating track.

Scrap materials generated during the irregular cutting process are usually collected and recycled through a waste collection device to prevent them from scattering and affecting equipment operation.
