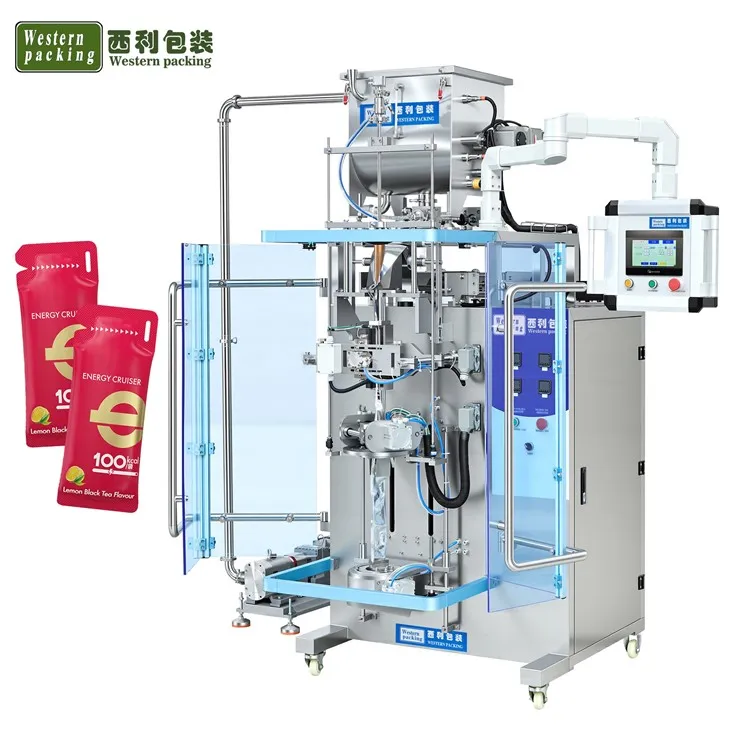

Energy Pharma Gel Sachet Packing Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of energy pharma gel sachet packing machine in China. We warmly welcome you to buy high quality energy pharma gel sachet packing machine made in China here from our factory. We also accept customized orders.

The energy pharma gel sachet packing machine uses a back-seal bag as its basic structure, and through additional sealing processes and contour cutting technology, it achieves irregularly shaped packaging forms that combine functionality and aesthetics.

This machine is suitable for products in the food, daily chemical, pharmaceutical, and chemical industries that require differentiated packaging appearances and is especially suitable for small-sized packaging production for single-use applications.

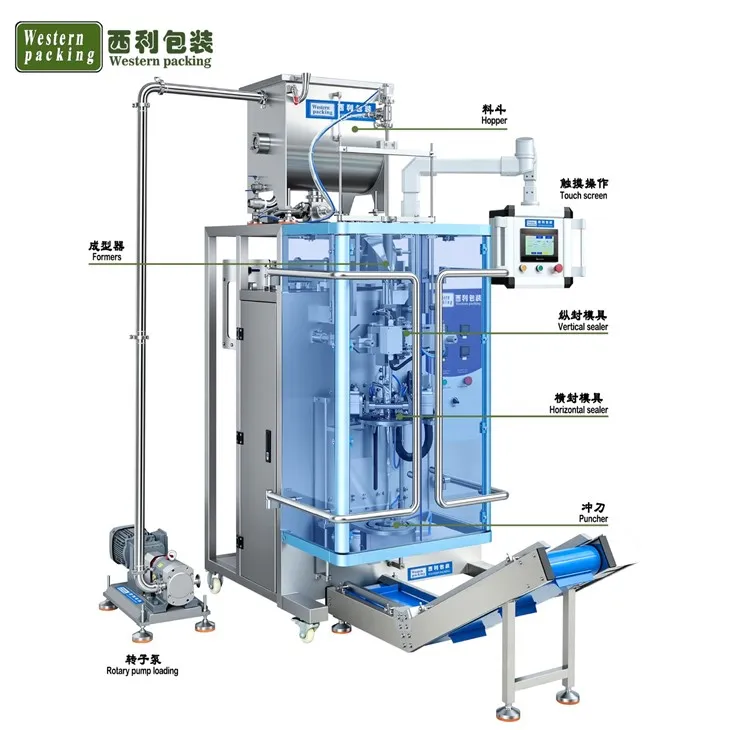

The equipment operates based on the coordinated use of mechanical transmission and electronic control. Its core principles are reflected in the following aspects:

Film Material Conveying and Tension Control: The packaging film is synchronously conveyed via drive rollers and a tension system, ensuring no deviation or slack during operation.

Cylindrical Forming and Longitudinal Sealing: After being folded into a tubular structure, the film undergoes continuous sealing under the action of a longitudinal sealing device, forming a back seal line.

Synchronous Liquid Filling: Before the bag is completely cut, a metered amount of liquid is injected into the bag via a filling mechanism, achieving simultaneous "bag making and filling."

Composite Sealing Structure Formation: Sealing material or functional layers enter the sealing area via an independent feeding mechanism and bond with the main bag body under heat and pressure.

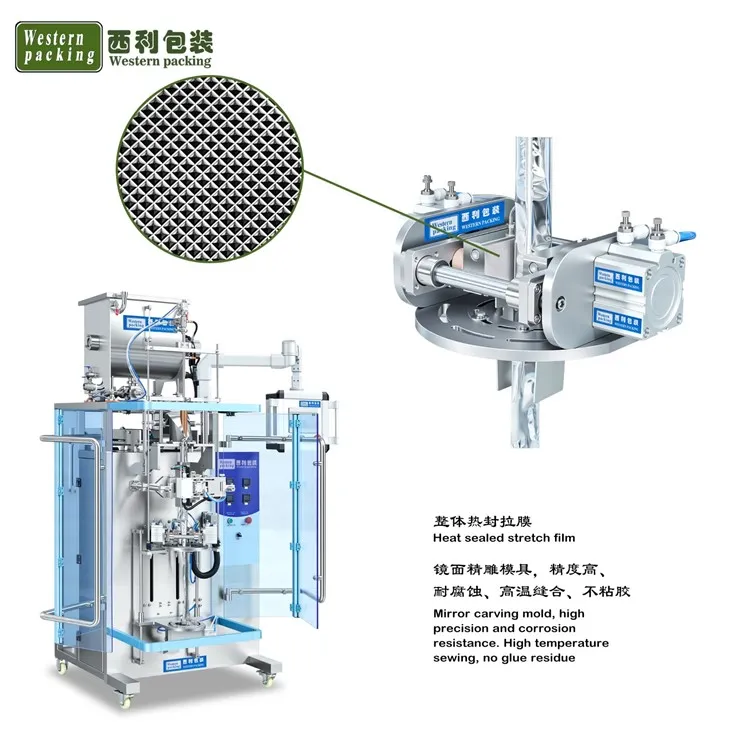

Transverse Sealing and Cutting: The transverse sealing assembly seals the top and bottom of the bag and cuts it in one go using a contour cutter, forming the final irregular structure.

Automatic Discharge: The finished product is conveyed to the discharge port via a guiding device, entering the next process or a collection device.

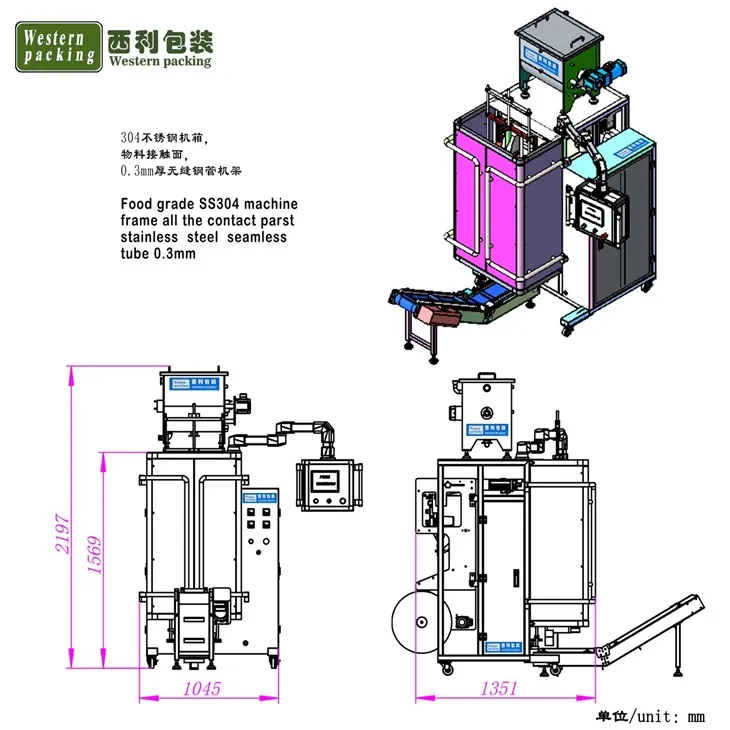

Parts that come into contact with materials are mostly made of food-grade stainless steel (such as 304 or 316), and the surface is polished to reduce residue adhesion.

The equipment is generally equipped with a transparent protective cover or safety door, and has a door-opening stop function; critical moving parts are equipped with limit protection to prevent damage caused by misoperation.

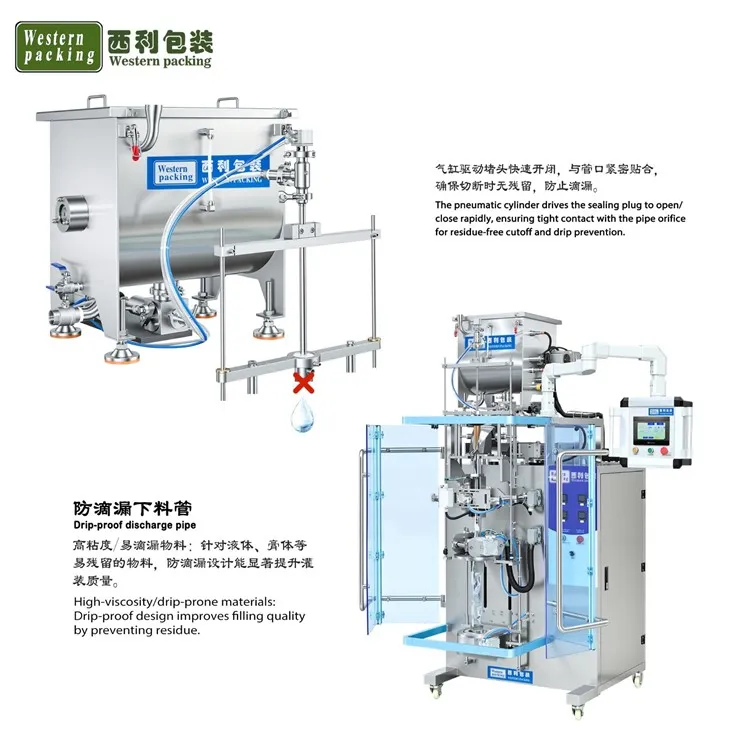

For liquid materials, especially viscous sauces or personal care products, filling nozzles are usually equipped with shut-off valves or back-suction functions. These valves quickly close and back-suction a small amount of liquid after each filling, preventing dripping and contamination of the sealing area.

The energy pharma gel sachet packing machine horizontal sealing pressure, cutting action, and some sealing functions are usually driven by pneumatic components, equipped with pressure regulating valves and filters to ensure a stable and clean air supply.

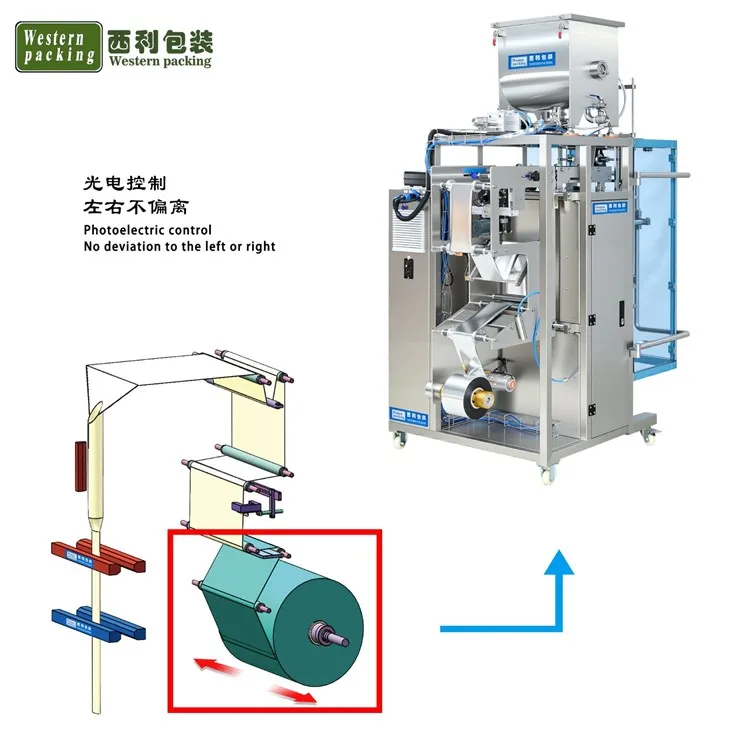

The membrane feeding section adopts an adjustable structural design, combined with an automatic correction system, to ensure that the membrane material is always on the correct operating track.

Scrap materials generated during the irregular cutting process are usually collected and recycled through a waste collection device to prevent them from scattering and affecting equipment operation.
