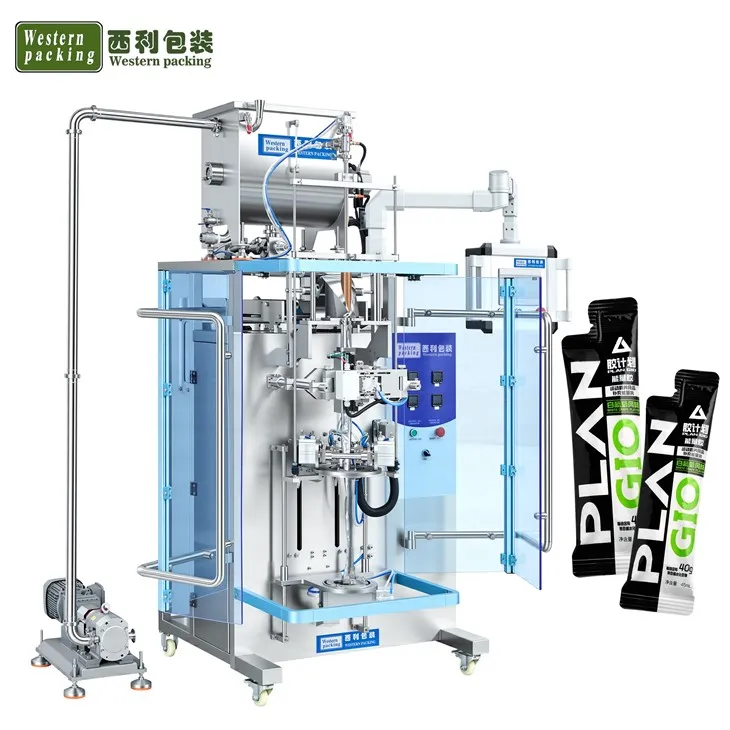

Sport Energy Gel Irregular Shape Stick Packing Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of sport energy gel irregular shape stick packing machine in China. We warmly welcome you to buy high quality sport energy gel irregular shape stick packing machine made in China here from our factory. We also accept customized orders.

This equipment integrates an automated control system with a precision mechanical structure, enabling it to complete the entire process from film unloading to finished product output. It is compatible with various composite film materials, such as PET/PE and NY/PE, and can be equipped with different filling methods (such as piston pumps, peristaltic pumps, or gear pumps) depending on the material characteristics.

During operation, the equipment forms a back-sealed bag structure through longitudinal heat sealing, combined with transverse sealing and irregular cutting blades, to achieve bag output with special contours (such as rounded corners, curves, bottle shapes, etc.). The sealing process can be used to add functional structures (such as easy-tear openings, hanging holes, reinforced edges, etc.) to make the packaging more suitable for actual use needs.

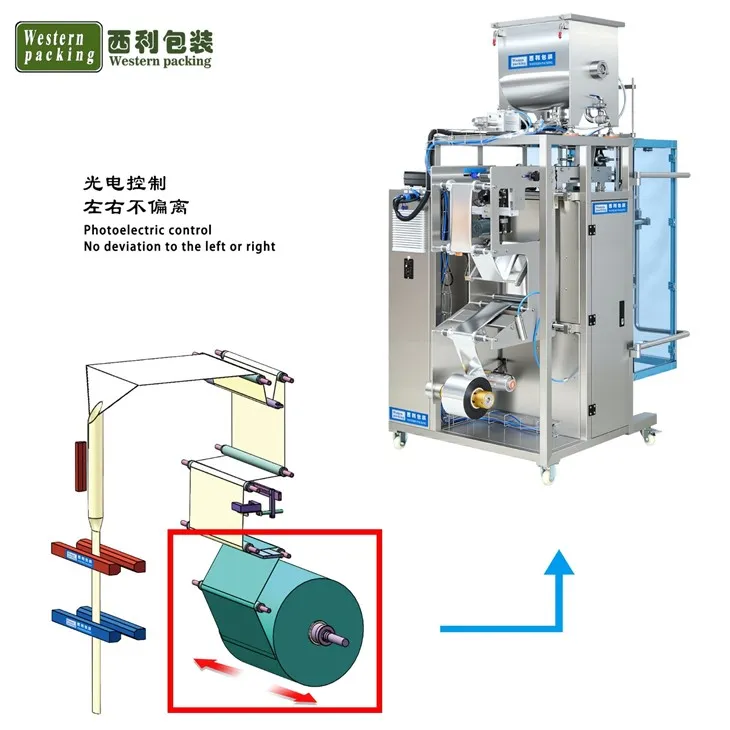

The sport energy gel irregular shape stick packing machine supports a touch screen operating interface with intuitive parameter settings and features automatic correction, cursor tracking, and film-free shutdown functions, ensuring a stable and reliable production process.

Compact and Adaptable: The single-lane design saves space, is suitable for various production environments, and facilitates equipment relocation and layout adjustments.

Diverse Bag Types: Supports irregular cutting and sealing processes, allowing for customized packaging appearances to meet individual brand needs.

Precise and Stable Metering: The high-precision metering system can be adjusted according to material viscosity, ensuring high consistency in bag volume.

Simple and Intelligent Operation: Equipped with a human-machine interface, parameters can be set with one click, and fault indication and automatic protection functions reduce operational difficulty.

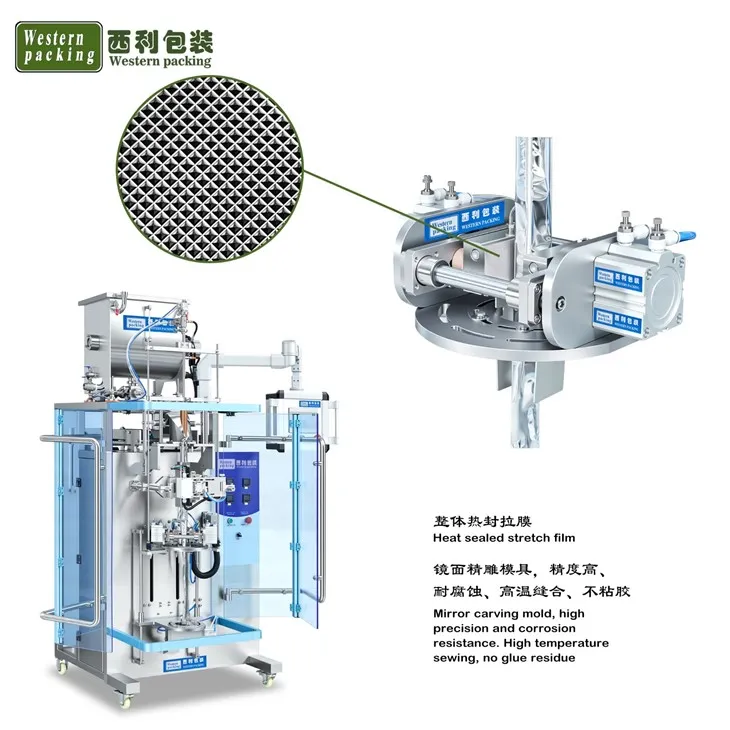

Excellent Sealing Performance: Utilizes a constant temperature control and pressure regulation mechanism, resulting in a strong and aesthetically pleasing seal that effectively prevents leakage.

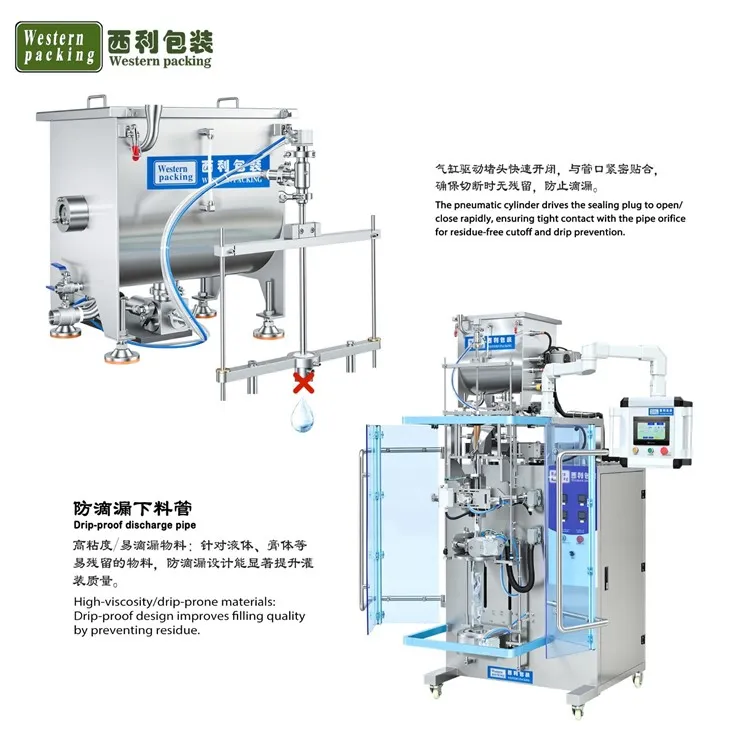

The negative pressure backflow at the moment of shutdown reduces residual liquid, and the optimized valve nozzle cut-off structure avoids the residue of fine filaments. These details effectively prevent sealing contamination.

The protective cover has a safety switch that stops the sport energy gel irregular shape stick packing machine immediately when opened, and is equipped with an emergency stop button.

The equipment is equipped with an automatic tension control mechanism that adjusts the membrane tension in real time via pneumatics to prevent misalignment or wrinkling caused by uneven tension.

It supports pneumatic or servo-driven cutters to improve cutting consistency. The cutters are mostly made of high-hardness alloy steel, extending their service life.
