Doy Stand-up Pouch Machine

In pet food manufacturing, granular products can vary considerably in particle size, shape, density, and flowability. Cat food, dog food, and pet treats may behave differently during feeding, weighing, and discharge, making material compatibility an important consideration in packaging line design. To achieve consistent portion weights and reliable packaging results, the equipment must coordinate the weighing process with the bag-handling mechanism according to the characteristics of the product.

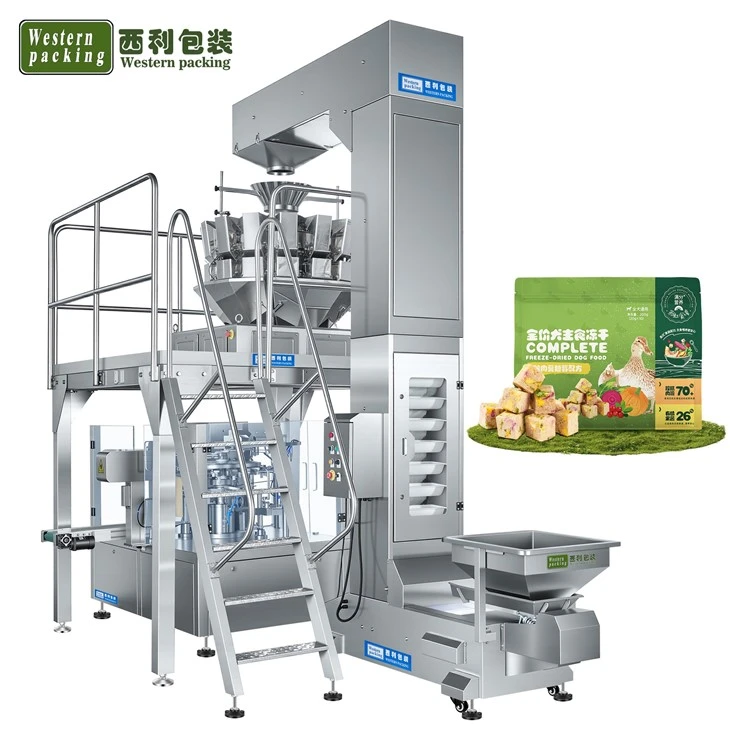

This doy stand-up pouch machine combines a multihead weigher with an automatic pre-made pouch packaging system. The upper weighing unit distributes and measures the granular product to reach the preset target weight, while the lower packaging section handles pouch feeding, opening, filling, and sealing. By integrating these operations into one machine, the system provides a coordinated packaging process for granular pet food and treats in stand-up pouches.

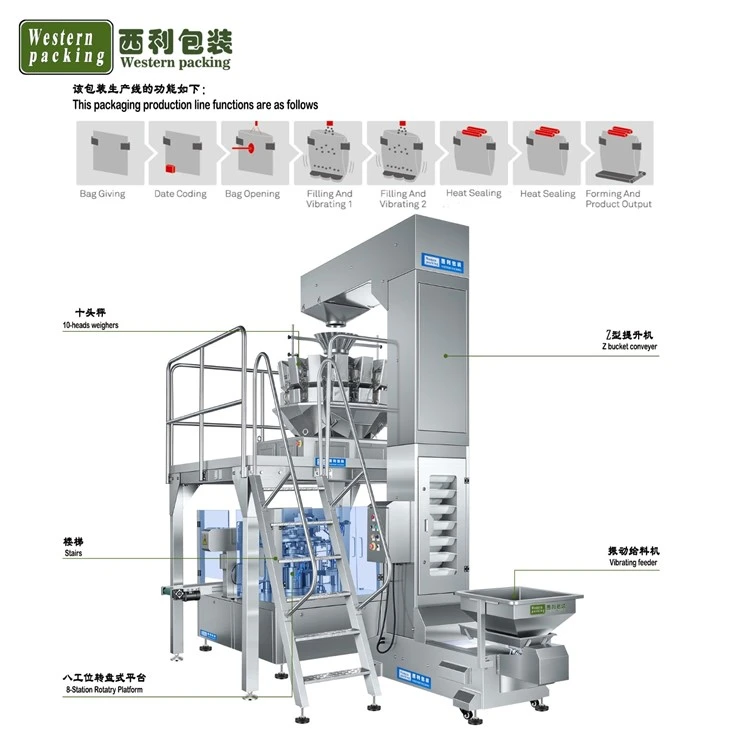

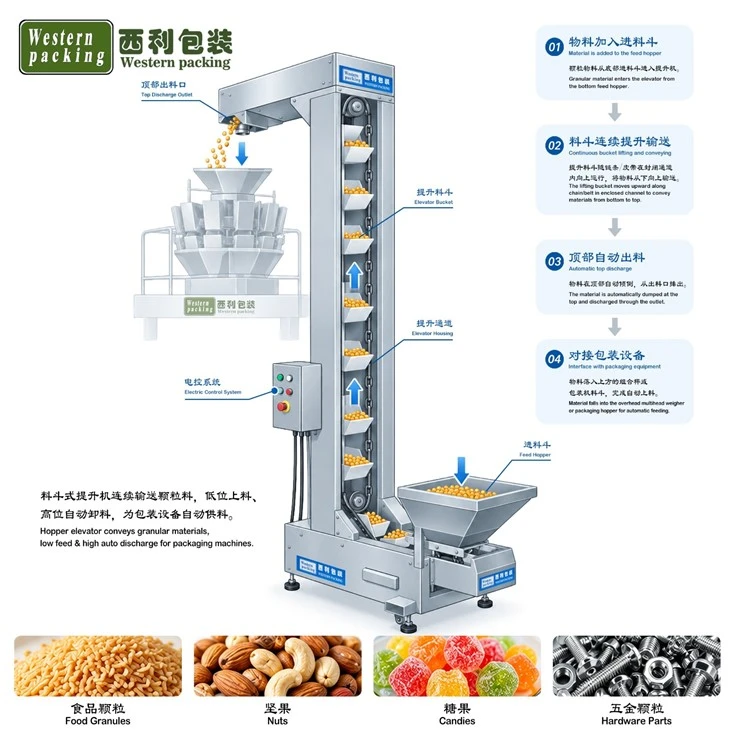

During operation, granular pet food first enters the feeding system, where it is distributed among the various weighing units of a multihead weigher. Each weigh hopper independently measures the weight of the material it contains; the control system then calculates all possible weight combinations to meet the target net weight, selecting the optimal combination that satisfies the pre-set criteria for discharge.

Simultaneously, the bag-feeding mechanism delivers packaging pouches to a designated station according to a programmed sequence. Once a pouch is correctly positioned and opened, the system waits for the weighing units to release the measured portion of the product. The granules travel through a discharge chute into the pouch, which is then transported to the sealing area.

In the sealing phase, the equipment performs the appropriate sealing operation based on the specific packaging material and sealing requirements. During the sealing stage, the equipment performs the appropriate sealing operation based on the specific packaging material and sealing requirements. Once sealing is complete, the packaging bag is discharged from the machine and moves on to the next stage of the process.

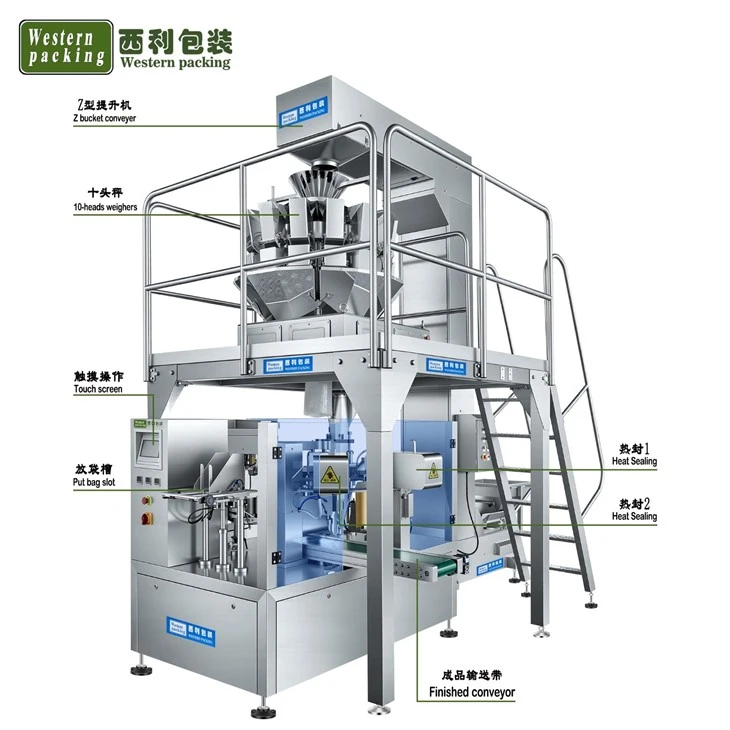

Equipped with a heavy-duty indexing rotary turntable featuring anti-slip bag clamps. Each station securely holds a single packaging bag.

10-head combination weigher. Each weigh hopper weighs pet food pellets independently; a controller then automatically selects the optimal combination of hoppers to achieve the target weight.

Equipped with front and rear sealing stations, each featuring independent heating elements and temperature sensors. A dual-sealing design is employed to ensure a secure and robust seal.

The doy stand-up pouch machine PLC and HMI (human-machine interface) touchscreen control cabinet is housed within a separate, dustproof electrical enclosure.

Guangzhou Western Co., Ltd. designs, manufactures, sells, and services vertical form-fill-seal and bottle-shaped sachet packaging machines for the packaging industry. Our machines serve a wide range of global markets, including food, beverage, nutraceuticals, and chemicals. We provide high-speed, continuous-motion stick pack and sachet machines, as well as versatile vertical baggers capable of producing a variety of bag styles-from pyramid bags to irregular shapes-customized to your specific needs.

Our team is highly skilled, professional, and service-oriented, offering customers comprehensive support, from technical consulting to one-stop after-sales maintenance, ensuring smooth operation and long-term reliability.

Taking photos with customers

Behind every photo is a real connection built through meetings, discussions, and shared goals. Each interaction gives us the opportunity to better understand our customers' needs, share our expertise, and explore tailored packaging solutions together. Whether we meet at international exhibitions or welcome customers to our factory for in-depth discussions and machine inspections, we value every moment that strengthens mutual trust. These meaningful encounters continue to bring us closer to long-term cooperation and sustainable partnerships around the world.

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of doy stand-up pouch machine in China. We warmly welcome you to buy high quality doy stand-up pouch machine made in China here from our factory. We also accept customized orders.
