Snack Packing Machine

Snack Packing Machine

The multi-head scale granule bag packaging machine is an automated packaging equipment developed for granular, block, and mixed materials, integrating precise metering, high-speed packaging, and intelligent control.
Send Inquiry
Product Introduction

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of snack packing machine in China. We warmly welcome you to buy high quality snack packing machine made in China here from our factory. We also accept customized orders.



nuts packaging machine

Products Description

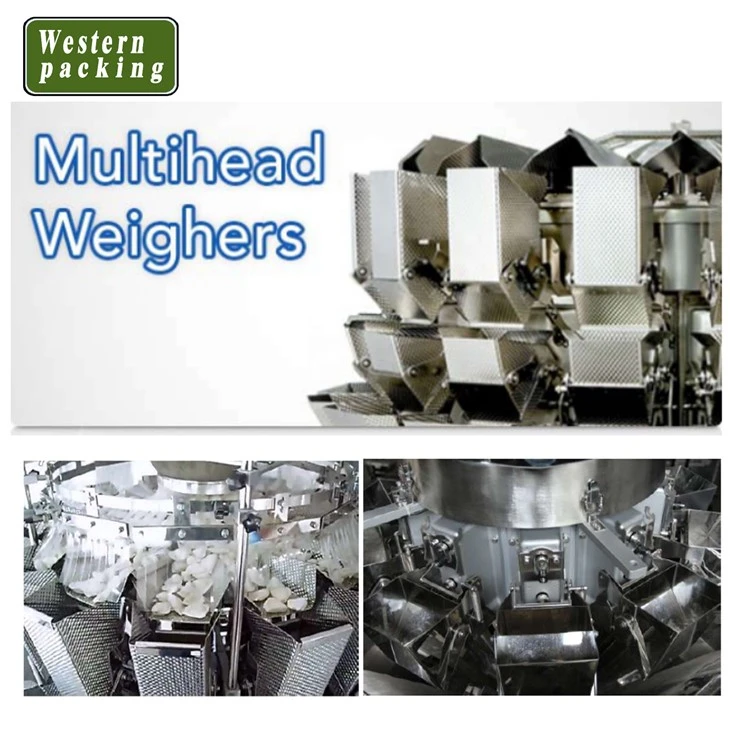

The snack packing machine employs multi-head combined weighing technology, automatically matching the optimal weighing combination scheme according to the weight requirements of different products, achieving fast and stable packaging operations.

This equipment is particularly suitable for packaging potato chips, pistachios, cashews, peanuts, popcorn, candy, biscuit granules, frozen foods, pet snacks, and industrial pellet products. The machine has a compact structure and small footprint, meeting the automated packaging production needs of food processing plants, central kitchens, snack food companies, and export processing enterprises.

Product Advantages

1. More stable packaging accuracy: Compared to traditional measuring cups, multi-head combination weighing can dynamically adjust the combination scheme according to the actual weight, reducing packaging weight fluctuations.

2. Reduced production management pressure: A high degree of automation reduces manual measurement errors and operational instability, improving the standardization of the production process.

3. Increased equipment utilization: Different products and specifications can be packaged simply by changing parameters, eliminating the need for frequent equipment changes and enhancing production flexibility.

Products parameters

Name Snack Packing Machine
Model WP-520KB
Range of measure 10-1000-2000 g/bag

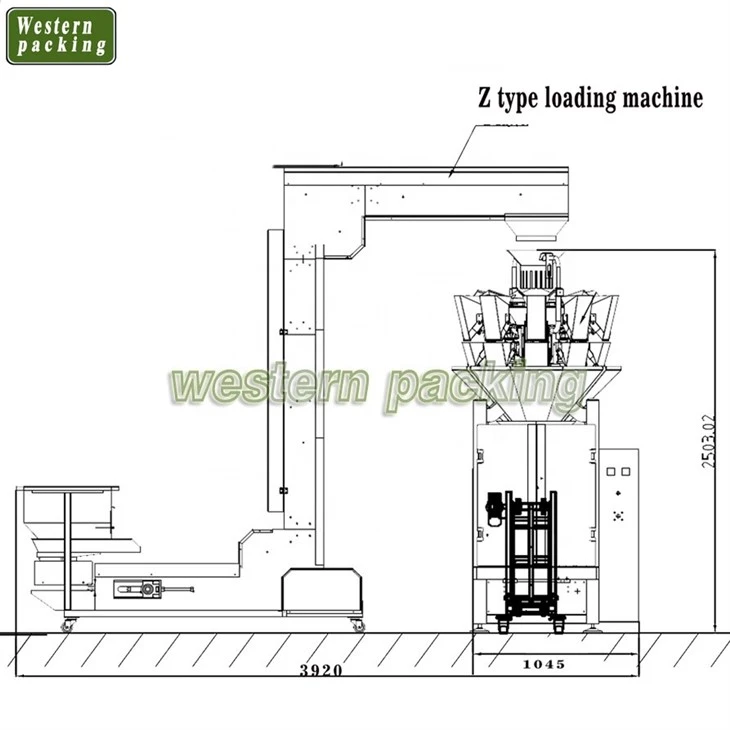

Dimension 1200*1100*3750mm (L*W*H)
Capacity 40-60 bags/min
Packing material Pape/PE, PET/AL foil/PE, PET/PE, NYLON/PE, Tea-leaf filtering paper, etc.
Weight 580 kg
Bag Size 50-250 mm
Bag Style Pillow bag, gusset bag, chain bag, top hang hole bag

Products Details

betel nut packing machine
cashew nut packing machine
nut packaging machine
The equipment is equipped with an automatic material distribution mechanism at the top, which can evenly distribute the incoming material to each feeding area.
automatic granule packing machine
The feeding channel adopts a large-angle flow channel design to reduce the retention and blockage of particles during the conveying process, ensuring smooth material discharge.
Potato Chips Package Machine
The system automatically monitors the operating position during the packaging film conveying process and corrects any deviations in real time to prevent issues such as misalignment of the packaging bag pattern and uneven sealing.
Fully Automatic Vertical Granule Packing Machine
The snack packing machine each heat sealing module can be individually set to a specific temperature, and the sealing parameters can be adjusted according to different packaging materials.
Company introduce
Western packing machine company

Guangzhou Western Co., Ltd. designs, manufactures, sells, and services vertical form-fill-seal and bottle-shaped sachet packaging machines for the packaging industry. Our machines serve a wide range of global markets, including food, beverage, nutraceuticals, and chemicals. We provide high-speed, continuous-motion stick pack and sachet machines, as well as versatile vertical baggers capable of producing a variety of bag styles-from pyramid bags to irregular shapes-customized to your specific needs.

Our team is highly skilled, professional, and service-oriented, offering customers comprehensive support, from technical consulting to one-stop after-sales maintenance, ensuring smooth operation and long-term reliability.

Taking photos with customers

1-54

1-45

1-42
1-75
1-63

1-64

1-34
1-76
Packing Machine Component
NO. Item Brand
1 PLC SIEMENS(Germany)
2 HMI SIEMENS(Germany)
3 Temperature controller OMRON
4 Promiximity Switch OMRON
5 Relay OMRON
6 Powder Switch SCHNEIDER
7 Pneumatic Component Air Tec
8 Server Pull Motor Delta
