Name: China Multilane 3 Side Stick Yogurt Packaging Machine Manufacturers Suppliers Factory - Western Packing
Brand: Western Packing
SKU: 196722472

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of multilane 3 side stick yogurt packaging machine in China. We warmly welcome you to buy high quality multilane 3 side stick yogurt packaging machine made in China here from our factory. We also accept customized orders.

Products Description

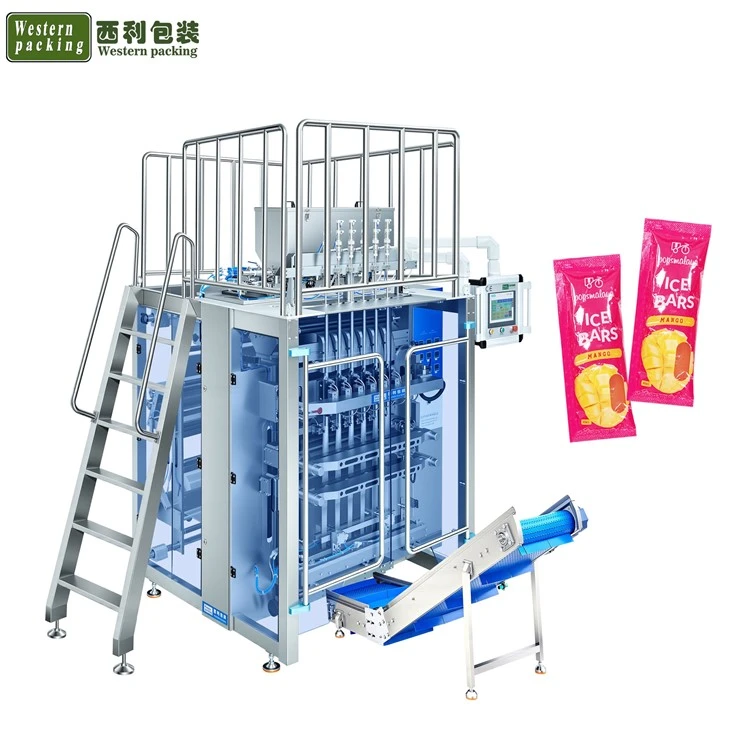

This multilane 3 side stick yogurt packaging machine adopts a multi-channel parallel working principle to achieve efficient and stable small bag packaging production. During operation, the equipment can simultaneously complete multiple bag forming and filling, effectively improving output capacity per unit time.

The machine's structural layout emphasizes rationality and stability. Packaging actions in each row are synchronized and coordinated, ensuring uniform bag size and consistent sealing quality. The liquid filling system and bag making system work precisely together, resulting in a smooth and continuous filling process, reducing liquid residue and packaging contamination, and achieving a high finished product qualification rate.

The sealing section features an independent temperature control design, allowing for flexible parameter adjustments based on different packaging materials to ensure strong sealing and clear lines. The entire machine operates smoothly and reliably, adapting to the needs of long-term continuous production.

Products Parameters

Model Number	WP-480Y	WP-680Y	WP-880Y	WP-1080Y
Capactity(bag/min)	40-50 bag per min
Range of measurement(ml)	3-18ml 30-70ml(According to product size)
Bag size(mm)	(L)50-160 (W)35-100()
Power(W)	2700w	3300w	3500w	4000W
Source voltage	380V/50Hz 220V/50-60Hz
Packing material	PE/PET/Aluminum
Packing weight(kg)	750KG	850KG	950KG	1050KG

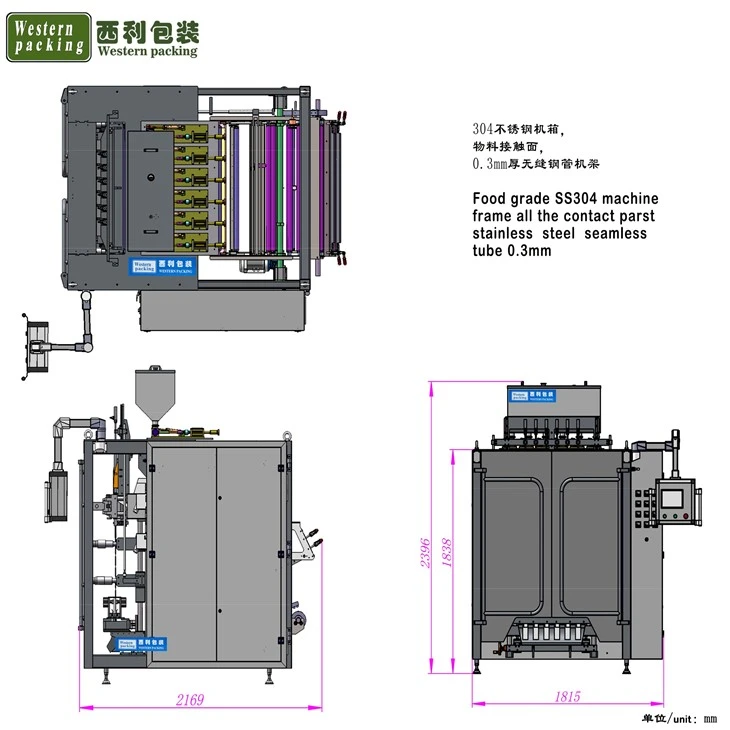

Overall dimensions	L1500 W1045 H2130mm	L1690 W1180 H2785mm	L1790 W1380 H2985mm	L1890 W1580 H2985mm

Products Details

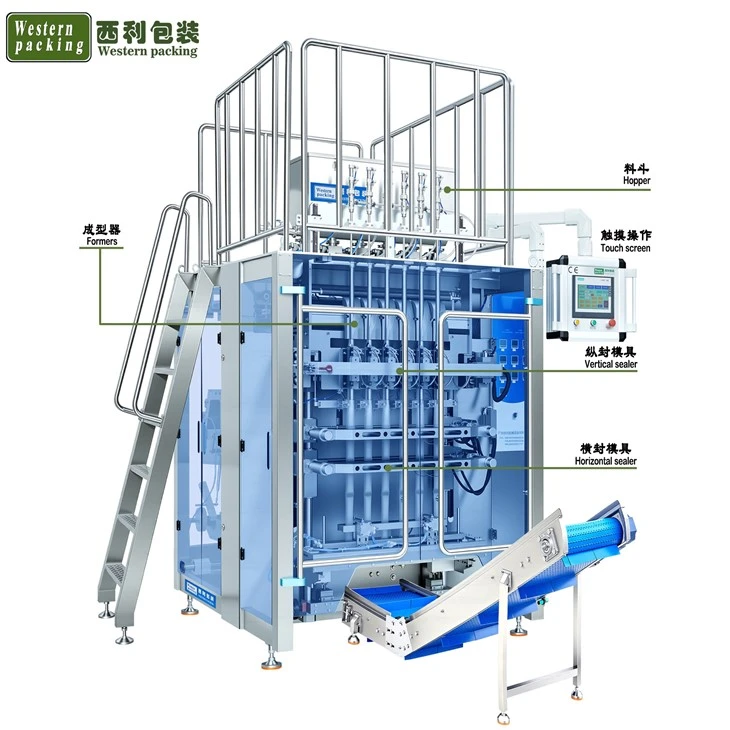

The longitudinal and transverse sealing mechanisms feature a variable stroke design, allowing for flexible adjustment of the sealing position and stroke to suit different bag lengths, widths, and packaging specifications, thus meeting the packaging needs of various product sizes.

The multilane 3 side stick yogurt packaging machine horizontal sealing clamping mechanism integrates sealing and traction functions, with precise action and smooth operation.

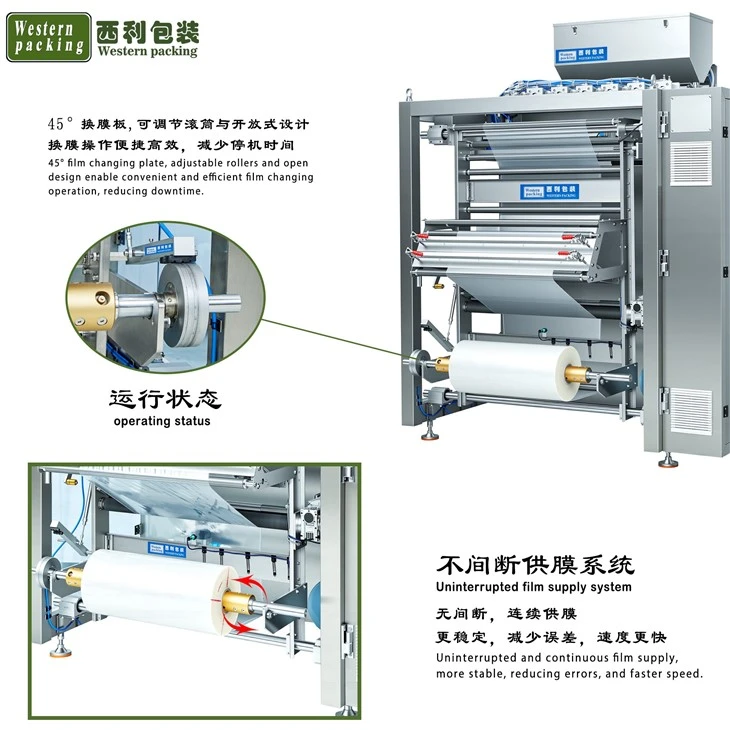

The equipment adopts an uninterrupted film supply structure design, which enables continuous conveying and stable tension control of packaging film without stopping the machine.

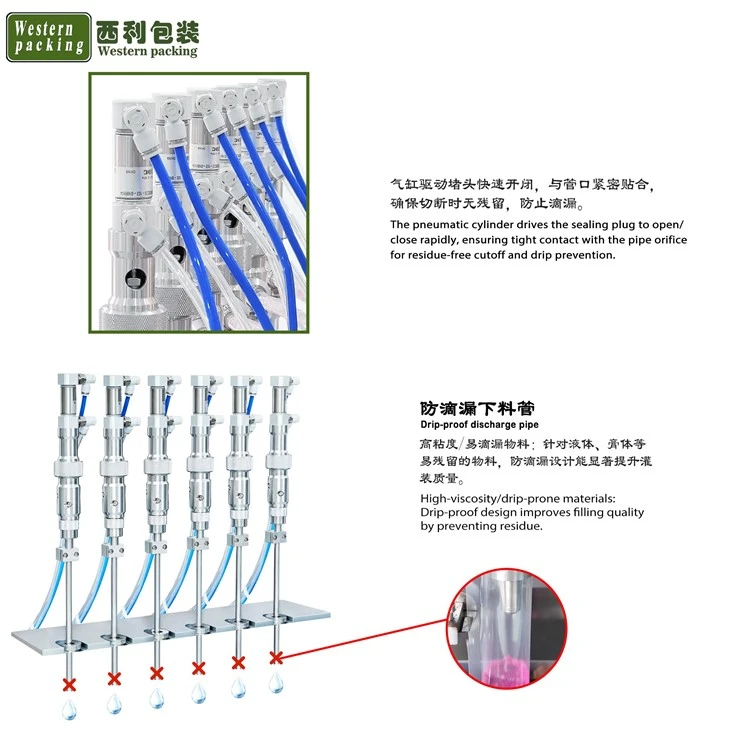

The feeding section features an anti-drip design, which effectively cuts off residual liquid after filling, preventing dripping and stringing.

Company Introduce

The company has continuously invested in research and development and has gradually established a professional and experienced R&D team, which has provided strong support for the technological innovation and upgrading of products and obtained a number of patents.
