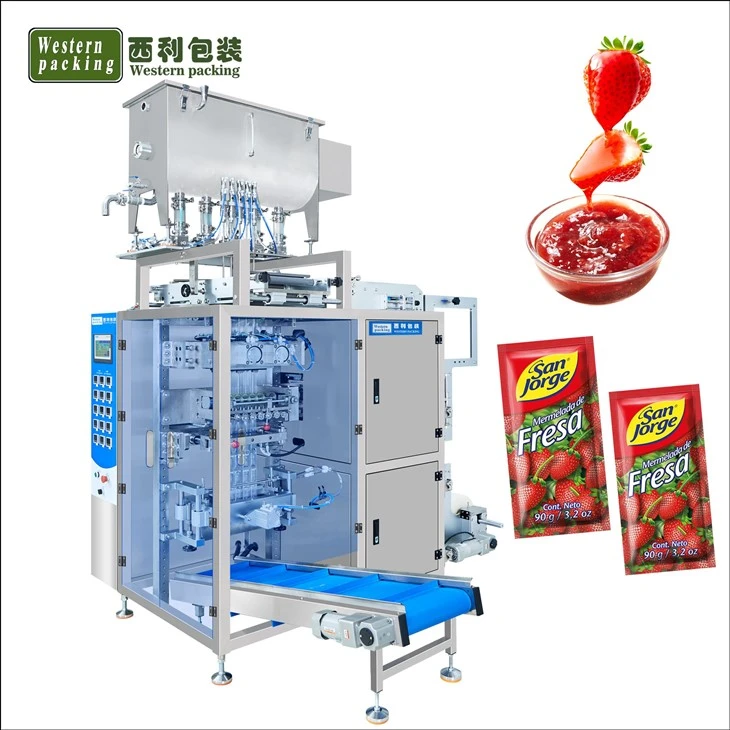

Multi-lane Chilli Sauce Sachet Filling Packaging Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of multi-lane chilli sauce sachet filling packaging machine in China. We warmly welcome you to buy high quality multi-lane chilli sauce sachet filling packaging machine made in China here from our factory. We also accept customized orders.

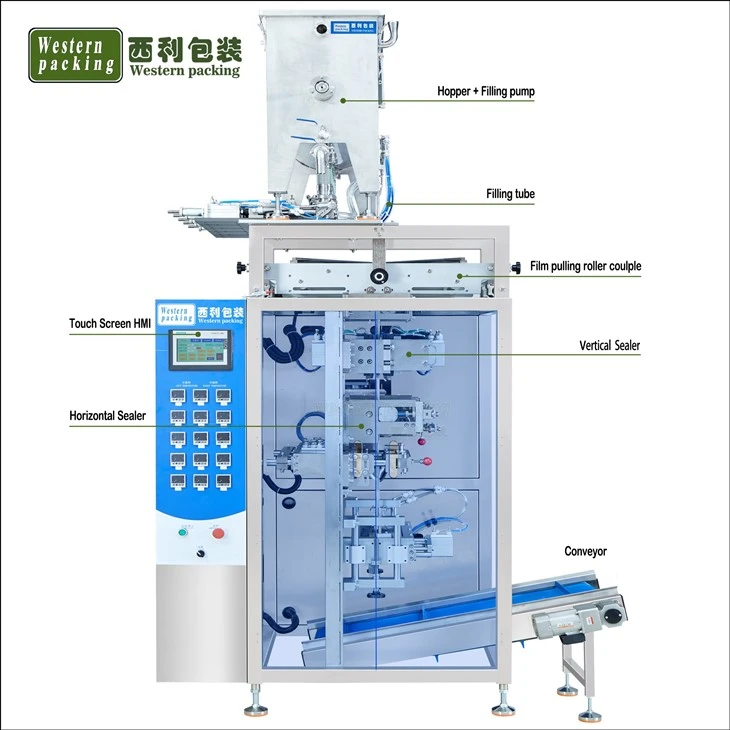

The Multi-lane Chilli Sauce Sachet Filling Packaging Machine is a high-efficiency liquid packaging equipment that integrates automatic bag making, quantitative filling, sealing, and bag cutting. It is specially designed for high-viscosity or particulate liquids (such as chili sauce, garlic sauce, and bean paste). The equipment adopts a multi-row synchronous operation structure, which can package multiple bags at the same time, greatly improving production efficiency. It is widely used in the food condiment, restaurant chain, convenience food, and condiment OEM manufacturing fields.

Scope of application

Suitable for small-bag packaging of liquid or semi-liquid products such as chili sauce, spicy sauce, fermented black bean sauce, garlic sauce, hot pot base, salad dressing, and ketchup.

Working Principle

The machine uses roll film as packaging material. An automatic film feeding and bag-making device completes the four-side seal bag formation. After the material is quantitatively filled into the packaging bag by a high-precision metering pump, the longitudinal and transverse sealing devices simultaneously heat-seal the bag. Finally, the bag is cut into individual finished bags by a cutter, achieving a fully automated packaging process.

Multi-column high-efficiency packaging: The multi-column independent operation structure allows for simultaneous packaging of 4-10 rows, increasing efficiency by 3-5 times.

Precision filling system: Employs a dedicated plunger or piston pump for high-viscosity liquids, ensuring uniform, accurate, and leak-free filling.

Four-side sealing bag type: Finished bags are flat, crisp, and aesthetically pleasing, suitable for the mid-to-high-end food market.

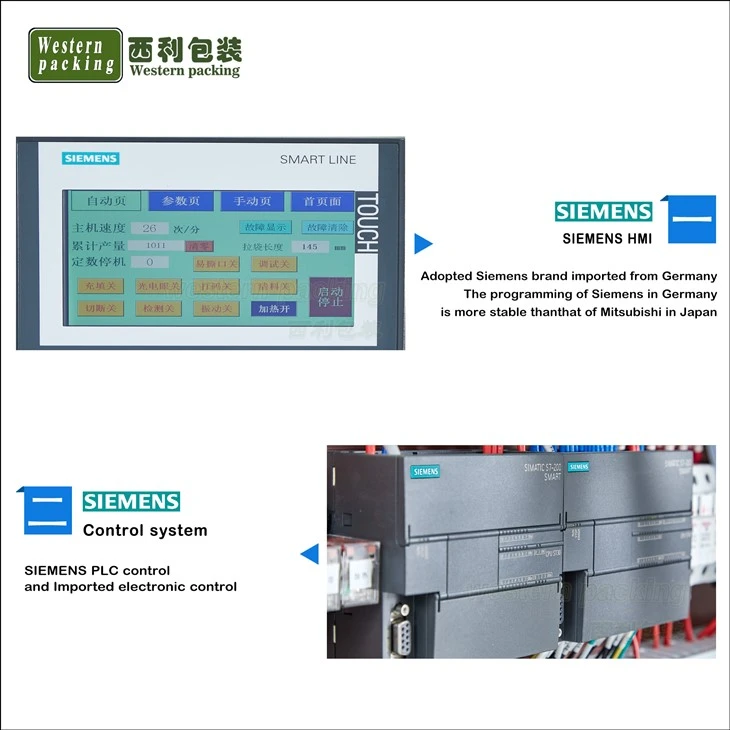

Intelligent control system: Equipped with PLC control and a touchscreen interface, allowing real-time adjustment of filling volume, sealing temperature, and production speed.

Stable and reliable: The entire machine is constructed of food-grade 304 stainless steel, with optional 316 stainless steel for contact parts, offering corrosion resistance and easy cleaning.

Film alignment and tracking: Photoelectric detection automatically aligns the printed pattern, ensuring accurate and aesthetically pleasing sealing.

Multi-functional expansion: Optional features include a stirring, heating, automatic cleaning system, and date coding device.

The overall design features a thickened welded frame, ensuring a stable center of gravity and making it suitable for continuous operation over extended periods.

Transparent protective covers can ensure the safety of operators.

It features a drip-proof design and an automatic back-suction function to prevent material from contaminating the sealing area.

Photoelectric sensors automatically detect printed marks and make real-time fine adjustments to prevent seal misalignment.

It adopts an air-expansion shaft rapid film loading system with automatic tension control to ensure smooth film material delivery.

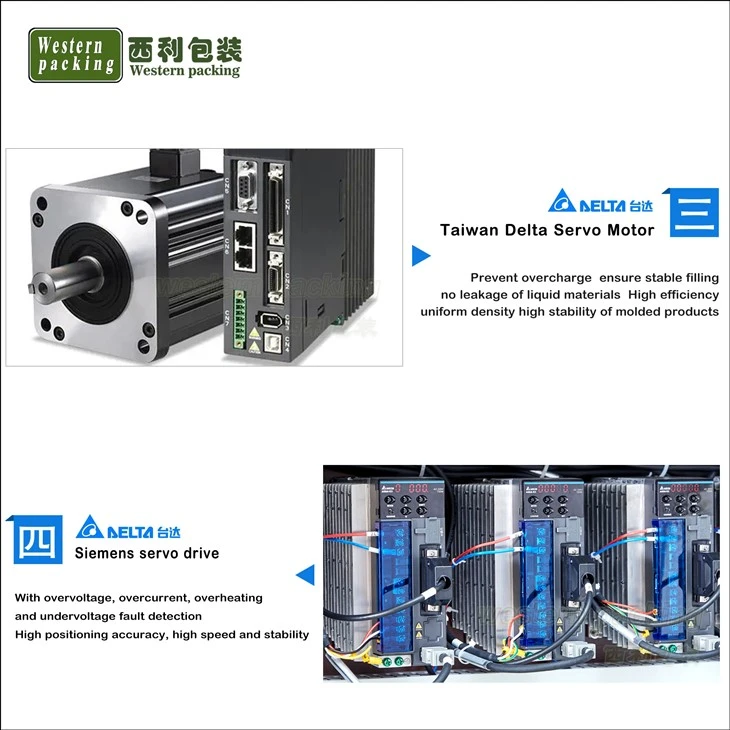

Servo synchronous control of the slitting blade supports multiple modes such as flat cut, easy-tear cut, and bag-connected cut.
