Coconut Oil Pouch Packing Machine
Products Description

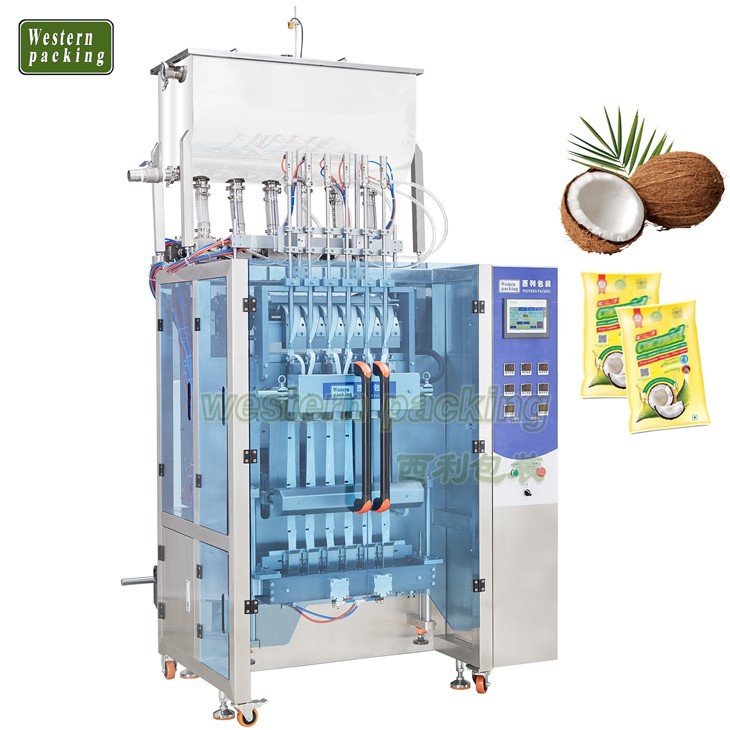

Coconut Oil Pouch Packing Machine
Applications
The machine is widely used in various industries such as food and beverage, pharmaceutical, cosmetic, and chemical industries. It is ideal for small and large scale productions. Also suitable for packaging various liquid products such as honey, ice pops, sauce, ketchup, jelly, gel, juice, jam, mouthwash, syrup, olive oil, mayonnaise, etc. The machine is versatile and can be used to pack a wide range of liquids. The machine is designed to pack various types of pouches, including single-dose sachets, flat pouches, and stand-up pouches. The pouches are made of high-quality materials that ensure the safety and quality of the packed products.
Products Parameters
| Bag Style | 3-side seal | Voltage | AC 380v 3 phases 50Hz |
| Filling Accuracy | ≤±1% | Power | 380V 28KW |
| Capacity | 200-400 bag/min | Weight | 480-880KG |
| Size of Bag | L50-200mm W20-80mm | Lanes | 4/6/8/10/12 lanes |
| Range of measure | 1-100ml/bag | Model | WP-680YS |
Product Working Principle
The machine works by filling the coconut oil into the pouches through a filling nozzle. The oil is then sealed in the pouch with a hermetic seal after which it is capped to prevent spillage. The entire process is automatic, from pouch loading to capping, making it highly efficient.
After-Sales Service
Our company provides after-sales services to ensure that our customers are satisfied with the performance of our machines. We offer various services such as technical support, training, and spare parts supply.
Detail Images
Mechanical Structure
- Mechanical Structure
- Hoppers
- Filling tube
- Film feeding device
- Formers
- Vertical sealer
- Touch screen
- Control panel
- Horizontal sealer
- Foot cups
Machine dimensions
Food grade SS304 machine frame,all the contact parst SS316L.stainless steel seamless tube 0.3mm
Part of the details
- High accuracy roller.
- Film rollingg Silkily Stably
Part of the details
The punching die is made of imported materials, with high hardnesss and durability
Part of the details
Air swelling shaft,Cyilnder pushes the heat sealer Opening and closing time and strength can be easily adjusted
Part of the details

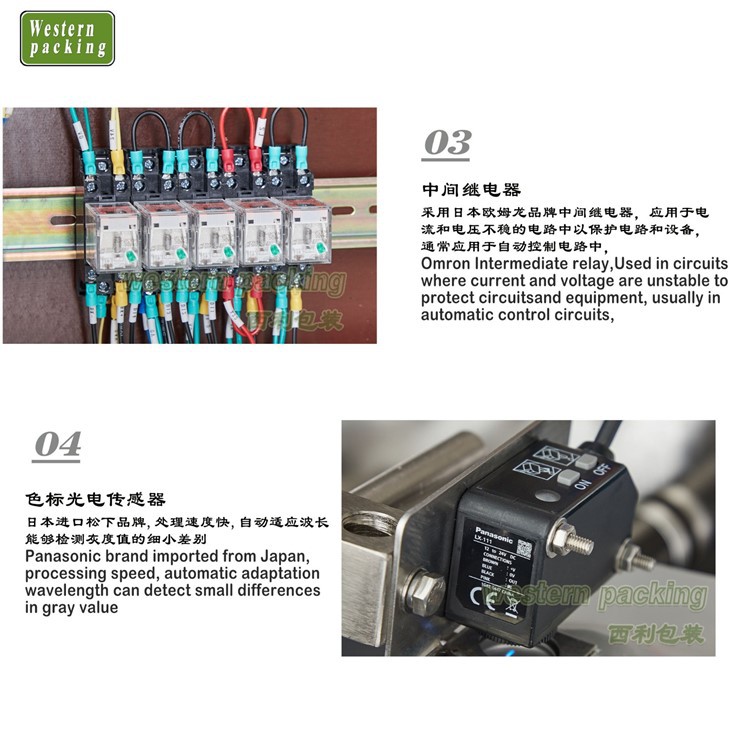

Omron Intermediate relay, Used in circuitswhere current and voltage are unstable to protect circuitsand equipment, usually in automatic control circuits.
Part of the details
- Siemens PLC,Siemens HMIoperate screen
- User friendly film unwinding structure,fast film roll changing, film roll detectionsensor, operator friendly film joint design.
Sample Bag
Opition
- Easy to tear
- Round cutter
Company Introduction
Company profile
Our company is one of the leading manufacturers and suppliers of packaging machinery. We produce high-quality machines that cater to the needs of various industries. We are committed to providing our customers with high-quality products and services that help them achieve their objectives.
FAQ
Q: What is the capacity of the machine?
Q: Is the machine easy to operate?
Q: How long does it take to set up the machine?
Q: What after-sales services do you offer?
| NO. | Item | Brand |
| 1 | PLC | SIEMENS(Germany) |
| 2 | HMI | SIEMENS(Germany) |
| 3 | Temperature controller | OMRON |
| 4 | Promiximity Switch | OMRON |
| 5 | Relay | OMRON |
| 6 | Powder Switch | SCHNEIDER |

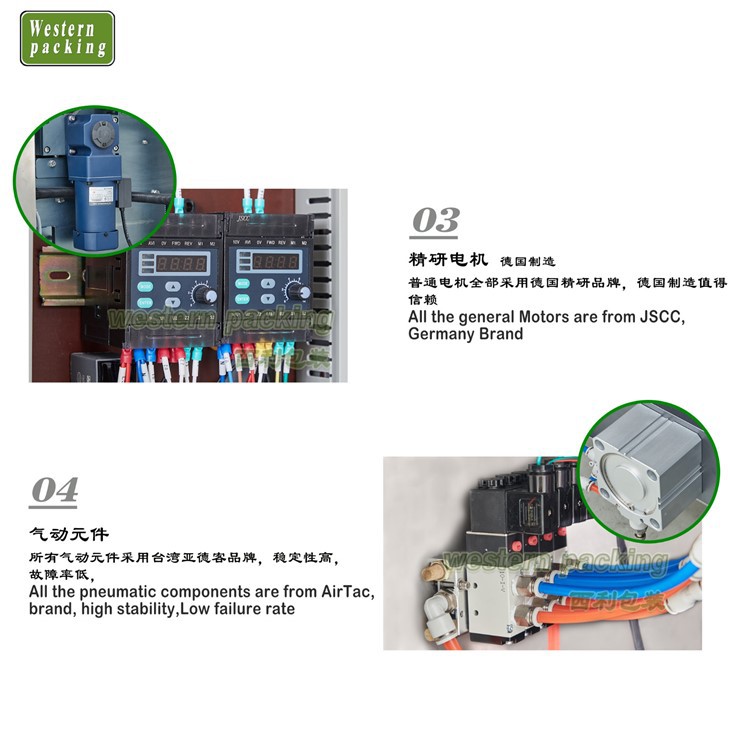

| 7 | Pneumatic Component | Air Tec |
| 8 | Server Pull Motor | Delta |
