Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of stick sachet packet cartoning machine in China. We warmly welcome you to buy high quality stick sachet packet cartoning machine made in China here from our factory. We also accept customized orders.

Products Description

The Stick Sachet Packet Cartoning Machine is a fully automated solution designed for efficiently cartoning various types of small sachets, strip packs, and single-serve packets. Engineered for industries such as food, pharmaceuticals, nutraceuticals, and personal care, this machine streamlines the entire packaging process-from sachet feeding and counting to grouping, carton forming, product insertion, and final carton sealing.

Built with a high-performance PLC control system and a user-friendly HMI, the machine offers precise control, easy operation, and quick adjustments for different sachet sizes and carton configurations. Its servo-driven mechanisms ensure smooth, accurate, and reliable movements, even at high speeds. The equipment's modular design allows for flexible customization, enabling seamless integration into existing production lines.

Products Features

1. Device function: The product is automatically loaded into the carton according to the specified arrangement. The machine line realizes all functions of opening the box, packing the box, sticking the box, and sealing the box at the same time.
2. Flow chart: Carton open box bottom molding → Product automatic cartoning machine → Carton sealing → Finish output

Products Parameters

Model	WP-480/680FB
Product name	Horizontal Automatic Cartoning machine
Product size	According to the actual situation
Sorting size	10-200mm
Packing capacity	Max 80 boxes/min
Machine size	320012001700mm
Carton length	130-230mm
Box Quality Requirement	250-350 g/m² (according to customer request)
Power	1.5 KW (220 V/380 V, 3 PH, 50 HZ)
Compressed Air Working Pressure	>=0.6mpa
*Dimension (LWH)*	3800X1100X1900 mm
Weight	1500 kg
Box Packing Speed	30-80 bags/min
Box Dimension Range	(55-200) mm * (14-160) mm * (13-70) mm Can be customized according to your box shape and size
Features	1. Japan Omron PLC control 2. Japan Omron inverter 3. Japan Omron touch screen 4. Automatic stop when machine is overload 5. Automatic rejection lack of package product and leaflet 6. Automatic trouble display, alarm and counting 7. Stable performance, operation is easy

Detailed Images

interface operating system to automatically display performance parameters such as cartoning speed, quantity, and cause of failure.

box Stick Sachet Packet Cartoning Machine product outlet

The product has been placed in the box, and the carton has been packaged; the finished product is output.

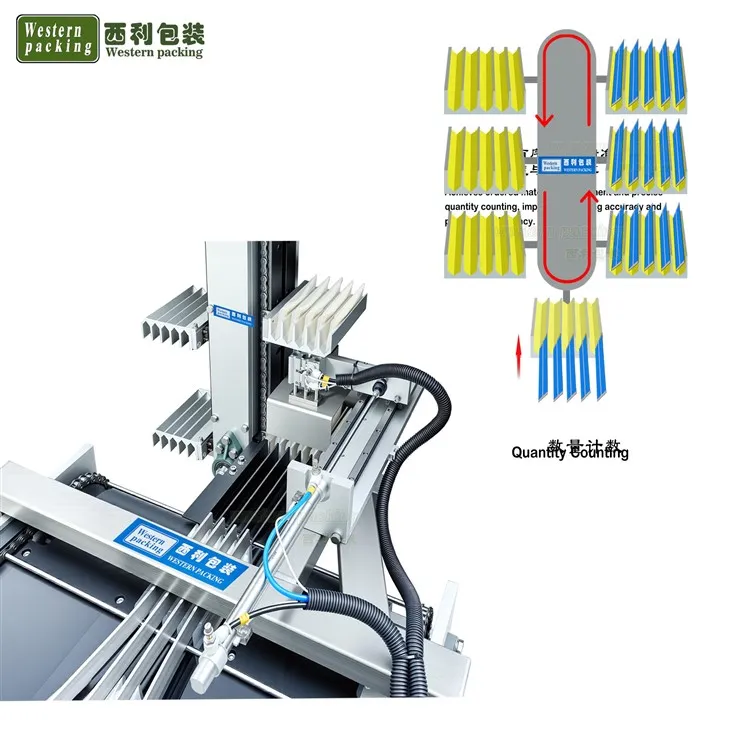

Products conveyor And Box storage device

The product conveyor pulls the product into the formed carton. and the box storage device put the box into the storage slot.

box forming, feeding, folding, glue spraying, sealing

The suction cup automatically sucks the box and shapes the box type. Then push the product into the corresponding tray continuously while the machine is running.

cartoner packaging machine

Company introduce

Guangzhou Western Western Co., Limited manufactures, sells, and services vertical form, fill, and bottle-shaped sachet packaging machines for the packaging industry. Our global markets include food, beverage, nutraceutical, and chemical. We offer high-speed, continuous-motion stick pack and sachet packaging machines. And many other vertical baggers that make a variety of bag styles-from pyramid bags to irregular-shaped bags-customize any shape you want.

The company has formed a team with high professional quality and strong service awareness, which can provide customers with comprehensive, one-stop technical consulting and after-sales maintenance services.

Taking photos with customers

Western Packing is recognized by many customers. We have customers we met at exhibitions, customers introduced by the same industry, and customers introduced by friends. All customers come from our trust and support for us.

The following images are client testimonials.
