Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic stick sachet counting and packing machine in China. We warmly welcome you to buy high quality automatic stick sachet counting and packing machine made in China here from our factory. We also accept customized orders.

Products Description

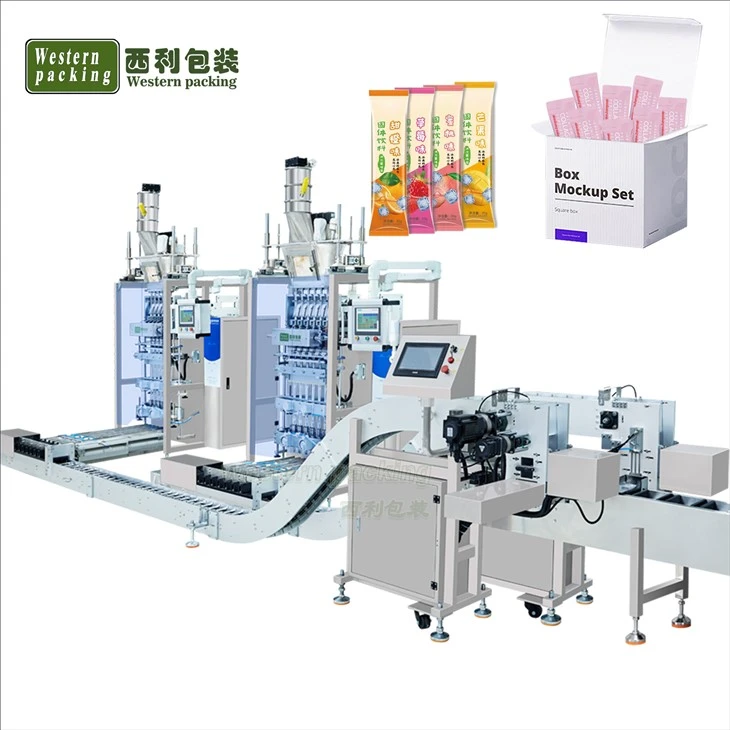

Your operators on the stick sachet automatic cartooning machine packaging line

Packaging lines supplied by our partner Syntegon are built with identical control panels. Your line operator can easily take care of the various machines and equipment in the packaging line. The machines can be connected to the same network and production information can be automatically transferred to a central database.

How does a the stick sachet automatic cartooning machine packaging line for Sachet Work?
A sachet cartoning machine is a carton packaging machine joined by a sachet infeed system and is designed for:
Automatically count and feed sachet onto the cartoner
Monitor the number of sachets fed and whether it meets with the configured number
Reject grouped sachet in case of not enough sachets fed
Introduce the correctly grouped sachets onto the cartoner
Erect the carton blanks into carton box
Insert sachets into the carton box
Fold and tuck-in of carton top and snap-lock bottom

What are the the stick sachet automatic cartooning machine packaging line is Designedfor?
The sachet cartoning machine can be applied for the cartoning packaging of products including Coffee sachet, Tea bagsachet,condom sachet,shampoo sachet, etc.
The sachet styles as follow are available for the countng and cartoning machine:

Packaging Line Composition:
This sachet packaging and bag-in-bag machine system consists of multi-lane sachet pack liquid packaging machine, counting machine and vertical form filling sealing machine. It can realize sachet packed packaging into a bag.

Products Parameters

Model	WP-680FB
Filling	Piston pump for liquid / Aauger filler for powder filling
Bag Style	3/4 side seal and Stick sachet
Dosage	5-10-20-30ml/bag
Packing lines	2-4-6 -8-10 lines can be customized
Capacity	35-45 bags/min/track
Control Style	PLC+Chinese/English Interface
Pneumatic request	0.24 cbm/min,0.6Mpa
Power	6.5kw-10.8KW
Voltage	AC220V Single-phase/380V 3-Phases 50-60hz
Machine Body Shell	304 Stainless steel for body shell and 316 stainles steel parts contacted material

Detail Images

sachet automatic counting and cartooning machine

A packaging line consists of interfaces between different machines.

Stick sachet automatic counting cartooning machine

The conveyor outlet is equipped with a counting sensor and collection device to collect the target number of small bags and discharge them into the chain conveyor.

stick Sachet counting and packing machine price1

Once the cartons are filled with the required number of stick pack batches, the carton sealing mechanism engages to close and seal the cartons. This might involve adhesive tape, glue, or other sealing methods.

Stick powder sachet automatic cartooning machine

The cartoner complete line, count and group stick pack into boxes to fit the requirements of modern distribution of food, pharmaceutical, dairy, cosmetics and chemical products.

stick Sachet counting and packing machine price

Cartoning and collating systems can multi-channel packaging machines to improve your production and packaging efficiency

sachet automatic counting cartooning machine

Empty cartons are loaded onto the carton packing machine's conveyor system.

stick Sachet counting and packing machine

Automatic sachets sorting machine and cartoning machine | stick bag sorting counting system
