Sauce Sachet Machine
Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of sauce sachet machine in China. We warmly welcome you to buy high quality sauce sachet machine made in China here from our factory. We also accept customized orders.
 |
|
Products Description
The sauce sachet machine mainly consists of a film supply system, a bag making system, a liquid supply system, a metering and filling mechanism, a heat sealing mechanism, and a bag cutting and output system. During operation, multiple packaging lanes run synchronously, with each lane independently completing liquid filling and bag sealing, enabling stable and efficient continuous production.
The equipment uses an automatic film conveyor system. After the packaging film enters the forming area, it forms a tubular bag, which is then longitudinally heat-sealed to create a back seal. Liquid material enters the filling mechanism via a conveyor pipe and is automatically fed according to the set capacity, followed by top sealing and cutting.
Working principle
During operation, the packaging film is automatically unwound from the film feeding system and smoothly transported through a tension control mechanism to maintain stable film movement. After entering the forming section, the film is shaped into a continuous tubular structure, while the longitudinal sealing unit securely seals the back side of the pouch.

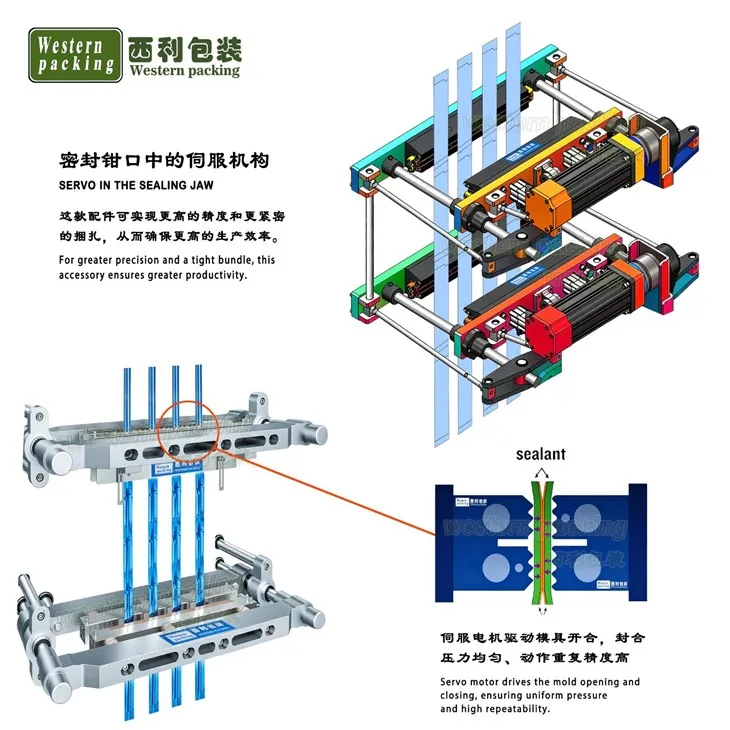

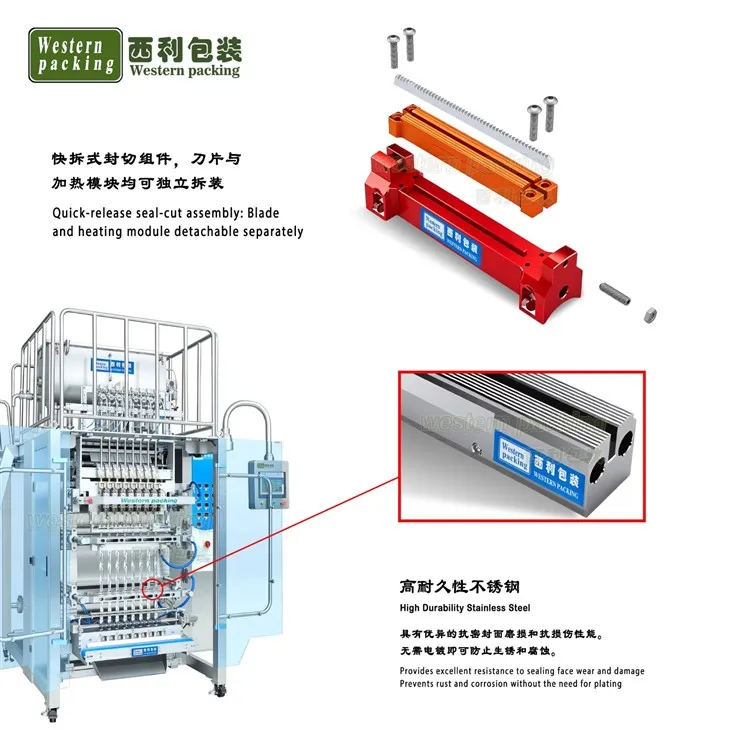

The liquid product is delivered to the filling system through an automatic feeding device, where it is accurately measured and filled according to preset parameters controlled by the PLC system. Once filling is completed, the horizontal sealing unit seals the top and bottom of the pouch with heat, and the cutting device separates each finished package individually.
Throughout the packaging process, the photoelectric tracking system continuously detects the registration marks on the film, ensuring precise alignment between the printed pattern and the cutting position. This helps maintain consistent bag length and delivers neat, professional-looking packaging results.
Products parameters
| Name | sauce sachet machine |
| Model | WP-480YB/680YB |
| Capacity | 40-50 cycles/min/lane |
| Power | 9.8 kW |
| Voltage | AC380v 3 phases 50Hz |
| Weight | 1350 kg |

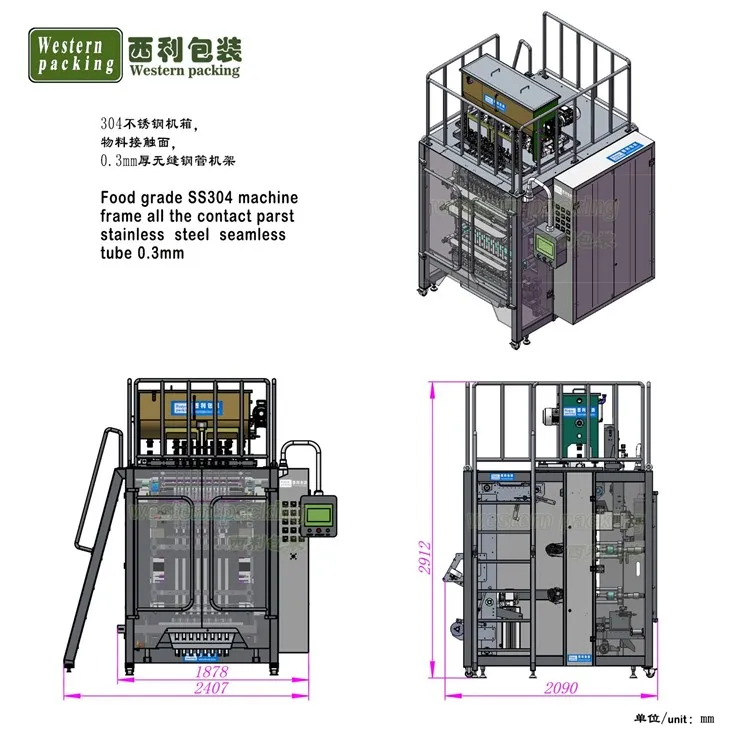

| Dimension (L*W*H) | 1650*1950*2800 mm |
Products Details
Company introduce
Founded in 2014, Guangzhou Western Packing Co., Limited is a professional manufacturer combining R&D, production, and trading, with years of expertise in packaging machines. Our experienced R&D team gives us a competitive edge, advanced processing capabilities, and efficient, scientific management.
Taking photos with customers
Western Packing has earned the trust of customers around the globe. We are steadily expanding our footprint in both domestic and international markets, serving clients across a wide range of regions. By leveraging multi-platform online marketing and actively participating in international trade shows, we continuously boost brand visibility and foster strong relationships with global partners.
FAQ
Q: What about output and efficiency?
A: Output depends on material characteristics, bag size, and filling volume, enabling high-speed, continuous, automated packaging.
Q: What about service life and durability?
A: The equipment uses high-quality materials and precision parts, ensuring long-term stable operation with normal use and regular maintenance.
Q: What after-sales services does your company provide?
A: We provide installation guidance, commissioning training, technical support, maintenance, and spare parts supply to ensure customers have no worries during use.
| NO. | Item | Brand |
| 1 | PLC | SIEMENS(Germany) |
| 2 | HMI | SIEMENS(Germany) |
| 3 | Temperature controller | OMRON |
| 4 | Promiximity Switch | OMRON |
| 5 | Relay | OMRON |
| 6 | Powder Switch | SCHNEIDER |
| 7 | Pneumatic Component | Air Tec |
| 8 | Server Pull Motor | Delta |
