Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of multilane instant coffee powder stick filling packaging machine in China. We warmly welcome you to buy high quality multilane instant coffee powder stick filling packaging machine made in China here from our factory. We also accept customized orders.

Working principle

During operation, the film unwinding mechanism first unfolds the film and feeds it into the forming area. After passing through guide rollers and the forming device, the packaging film is folded into a longitudinally multi-row tubular structure. Subsequently, the longitudinal sealing device heat-seals the back of each row of bags, forming a continuous cylindrical bag body.

Simultaneously, the metering system begins operation, and powder material is precisely conveyed to each feeding port via screw rotation or metering devices, synchronously filling the corresponding bag body.

After the material filling is complete, the transverse sealing mechanism performs a transverse seal, sealing the upper and lower bag openings. Finally, the cutting system cuts the bag to a set length, forming individual small bag products. The entire process is completed continuously under the coordination of the control system, achieving high-speed and stable operation.

Products parameters

Name	Multilane Instant Coffee Powder Stick Filling Packaging Machine
Model	WP-480/680/880FB
Filling	Auger filler
Bag Style	backside seal/stick bag
Sachet size	L 50-180, W 15-30mm
Dosage	1-50g/bag
Packing lines	4-12 lines can be customized
Capacity	35-45 bags/min/track
Control Style	PLC+Chinese/English Interface
Pneumatic request	6P
Maximum film width	480mm
Power	6.5kw
Voltage	AC 220V Single-phase/380V 3-Phases
Machine Body Shell	304 Stainless steel for body shell and parts contacted material

Detail Images

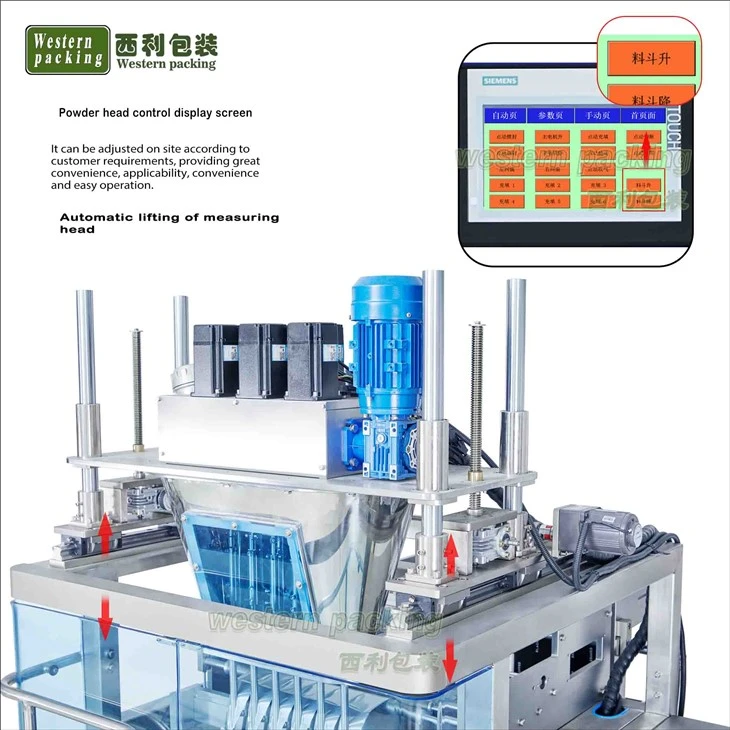

It adopts a screw metering structure, which provides high and adjustable metering accuracy; the screw surface undergoes special treatment to make it wear-resistant and corrosion-resistant, and is equipped with a dustproof sealing design.

Multilane instant coffee powder stick filling packaging machine equipped with a PLC control system and a touch screen human-machine interface, the interface is intuitive and parameter settings are convenient.

The entire machine is mostly made of stainless steel (such as 304 stainless steel), which is corrosion-resistant, easy to clean, and meets the hygiene requirements of the food and pharmaceutical industries.

Equipped with safety guards, emergency stop buttons, and other safety devices; supports functions such as film shortage alarm, film breakage shutdown, and material shortage warning.

The high-precision integrated forming device design ensures that the packaging film maintains a consistent folding angle and size during the forming process, guaranteeing uniformity in bag shape across multiple rows.

Equipped with an automatic alignment system, it can monitor and adjust the position of the packaging film in real time to prevent deviation during operation.

Multilane Instant Coffee Powder Stick Machine
