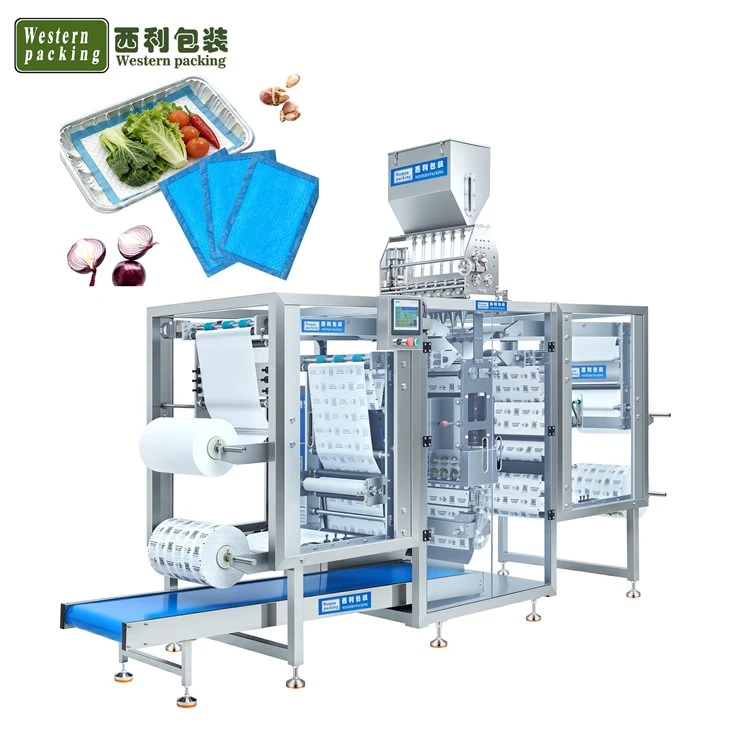

Ice Absorbent Pad Packaging Machine
Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of ice absorbent pad packaging machine in China. We warmly welcome you to buy high quality ice absorbent pad packaging machine made in China here from our factory. We also accept customized orders.
| |
Products Description

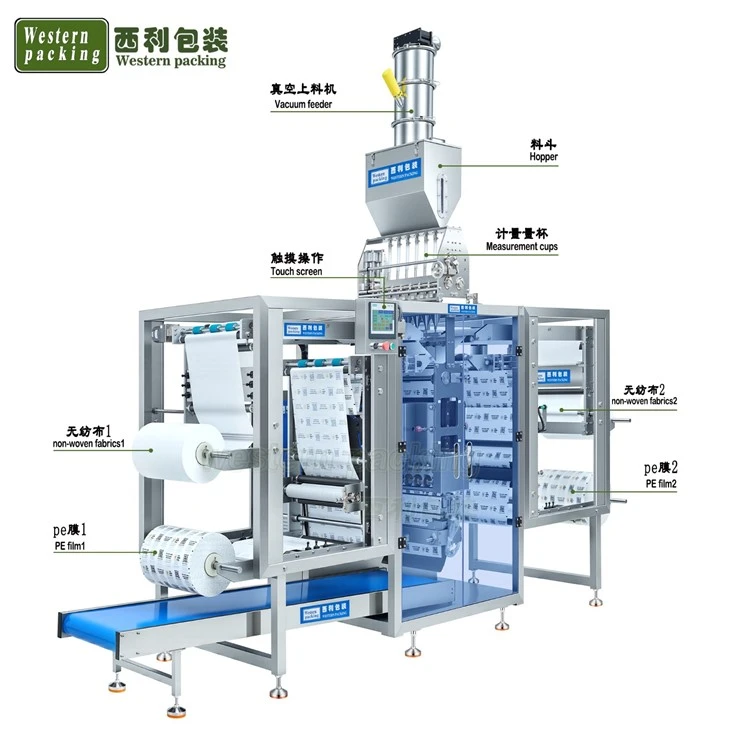

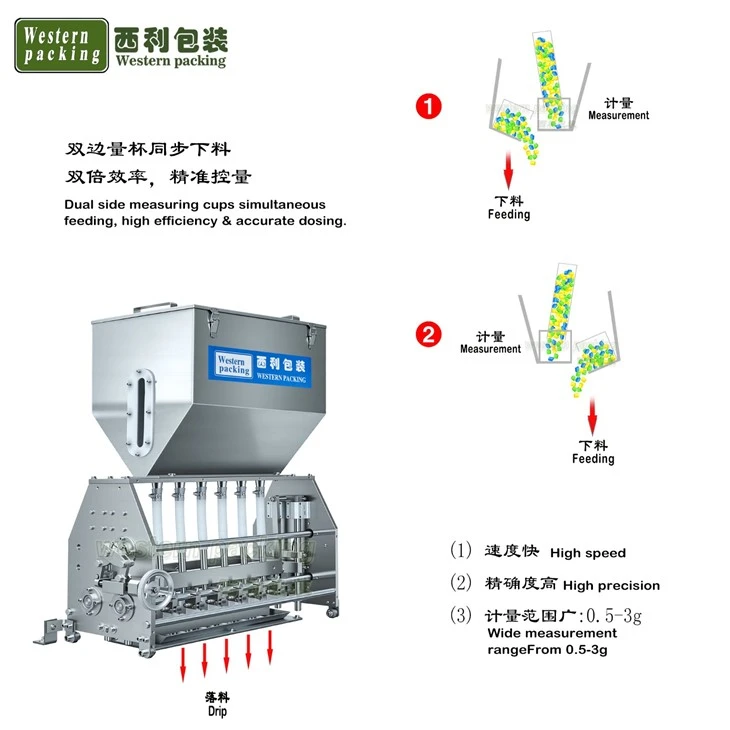

The four-roll film ice absorbent pad packaging machine adopts a design that allows four sets of packaging films to operate simultaneously. The upper and lower film materials enter the processing area through guide mechanisms. During the production process, the lower film is first conveyed to the forming station to form a bearing area, and then absorbent particles, super absorbent polymer resin or composite absorbent material are quantitatively added through a metering system.
Products Features
1. Four-roll independent unwinding system: Each roll is equipped with an independent unwinding shaft and tension adjustment mechanism, ensuring synchronization of the four rolls during high-speed operation and preventing dimensional deviations due to inconsistent tension.
2. PLC intelligent parameter management: Stores multiple product formula parameters, eliminating the need for repeated settings when switching specifications, significantly improving changeover efficiency.

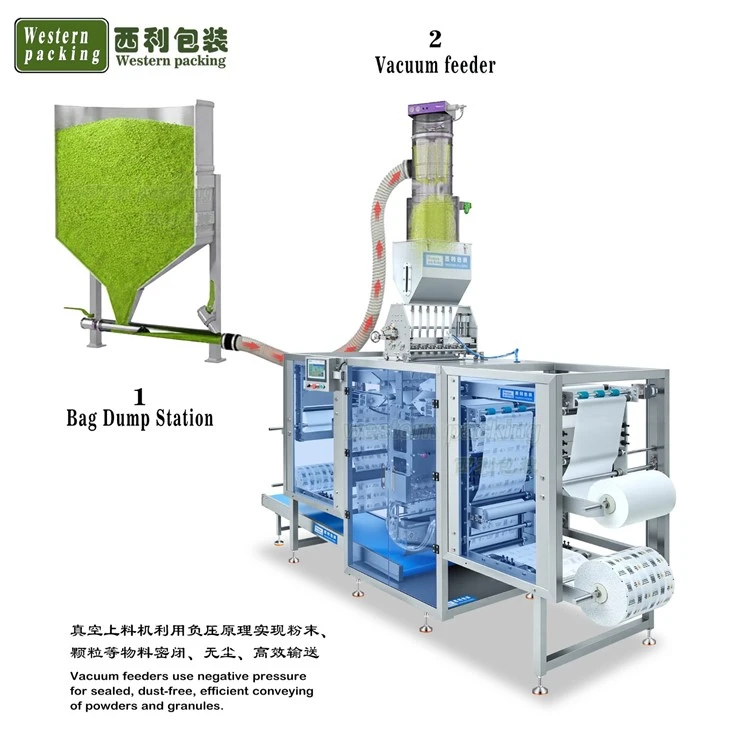

3. Automatic material shortage detection: When material in the hopper is insufficient, the system automatically issues an alarm signal and can automatically replenish material in conjunction with the feeding equipment, ensuring continuous production.
4. High-precision length tracking function: Through photoelectric detection and a servo system, automatic tracking of the cutting length is achieved, reducing error accumulation.
Products Parameters
Name | Ice Absorbent Pad Packaging Machine |
Model | WP-480K-2 |
Capactity(bag/min) | 35-50 bags/min/line |
Range of measurement(ml) | 0.5-3gr |
Pads sizes | Bag width :customizable |
Film width | Max film width(one roll) : 480mm |
Line quantity | 6 lines |
Products Details
The touchscreen can display information such as production speed, sealing temperature, output statistics, and alarm records in real time, making it easy for operators to quickly grasp the equipment's operating status.
Company Introduce
Our company specializes in the research, development, production, and sales of small-pouch packaging and complete filling lines, committed to providing efficient, stable, and intelligent production solutions for the food, beverage, oil, and chemical industries. Leveraging years of industry experience and technological accumulation, our independently developed equipment leads the industry in precision, capacity, and reliability.
Western Packing boasts a comprehensive R&D team, a rigorous quality management system, and attentive after-sales service, enabling us to provide customized equipment and production line solutions based on customer needs. Simultaneously, we adhere to technological innovation and continuous optimization, dedicated to helping customers improve production efficiency, reduce costs, and ensure product quality.
Taking photos with customers
Western Packing has earned recognition from customers worldwide. We actively expand both domestic and international markets, supplying our products to clients across the globe.
Through multi-platform online promotion and participation in offline exhibitions, we continue to enhance our brand influence and strengthen cooperation with customers around the world. Our goal is to achieve mutual growth and build long-term partnerships based on trust and success.
We take pride in the photos we share with our customers - showcasing the trust and appreciation of new clients, as well as the continued support and recognition from our long-term partners.
