Product Details

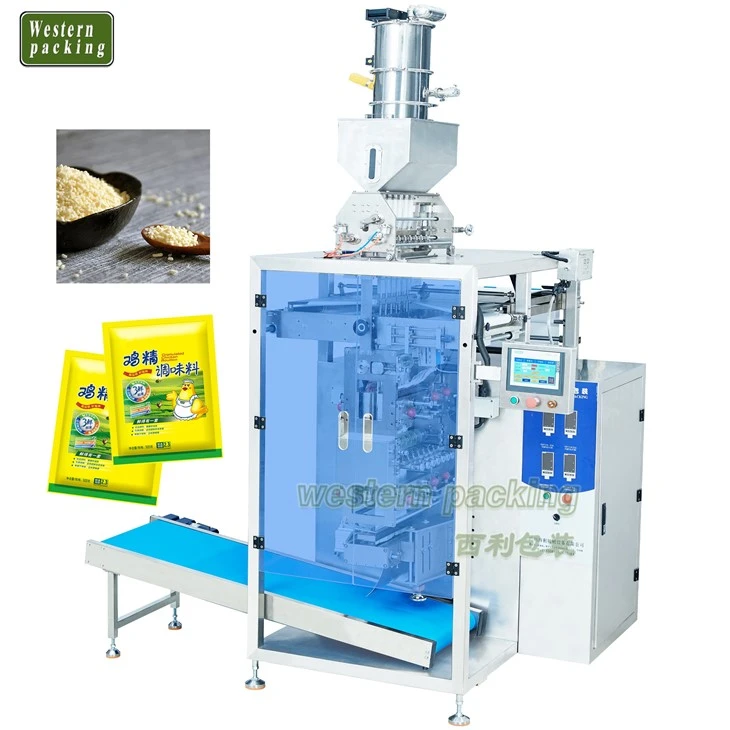

Vegetable Seed Packing Machine For Food

The Vegetable Seed Packing Machine for Food is an advanced, high-quality packaging machine specifically designed for the food industry. Its primary function is to pack different types of vegetable seeds and other food items in an efficient and accurate manner.

seed packing machine

Product Performance

Vegetable Seed Packing Machine For Food

The machine boasts a high level of efficiency and accuracy, thanks to its advanced technology and innovative design. It is capable of packing a wide range of food items, including fresh and frozen vegetables, fruits, and nuts. The machine is also designed to work in a variety of production environments, including factories, warehouses, and other food processing facilities.

Products Parameters

Bag Style	4-side seal	Range of measure	1-30/30-70g
Capacity	40-50 bag/min	Packing Material	Paper/Plastic, Plastic/Aluminum, Plastic Paper/Aluminum/Plastic, Filter paper Nonwoven mesh,etc.
Bag Size	(L)30-160mm, (W)25-100mm	Model Number	WP-880K
Dimension	1300x1200x2450mm(LWH)	Lanes	4/6/8/10/12 lanes
Power	3500w	Weight	550KG

Detail Images

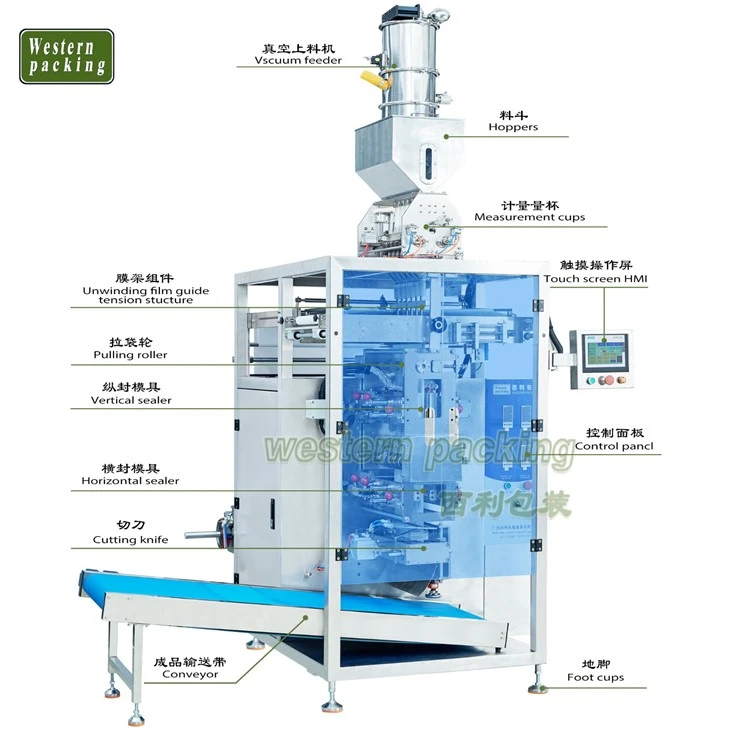

Mechanical Structure

Vacuum feeder
Hoppers
Measurement cups
Touch screen HMI
Unwinding film guide tension structure
Control panel
Pulling roller
Vertical sealer
Horizontal sealer
Cutting knife
Conveyor
Foot cups

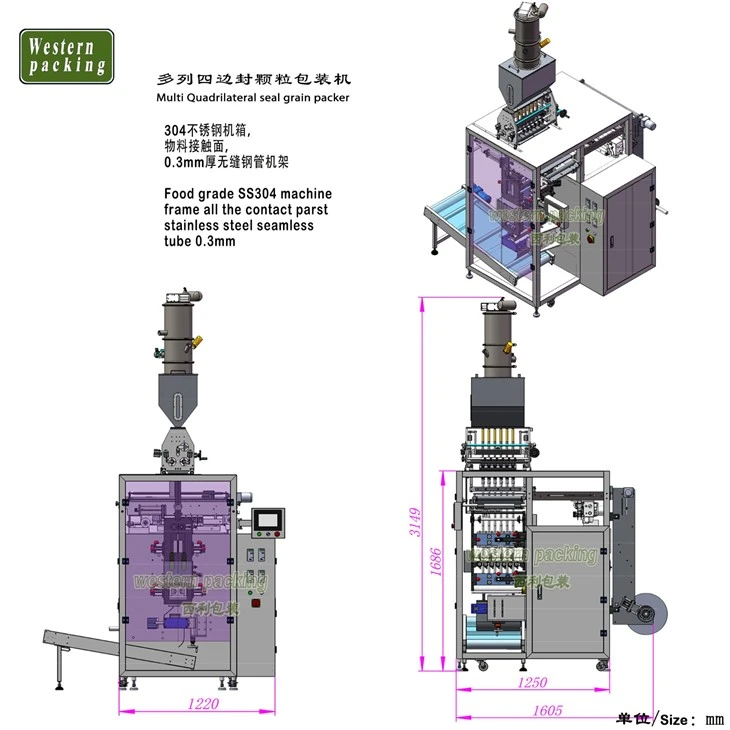

Machine Dimensions

Multi Quadrilateral seal grain packer
Food grade SS304 machine frame,all the contact parst SS316L. Stainless steel seamless tube 0.3mm

Part of the details

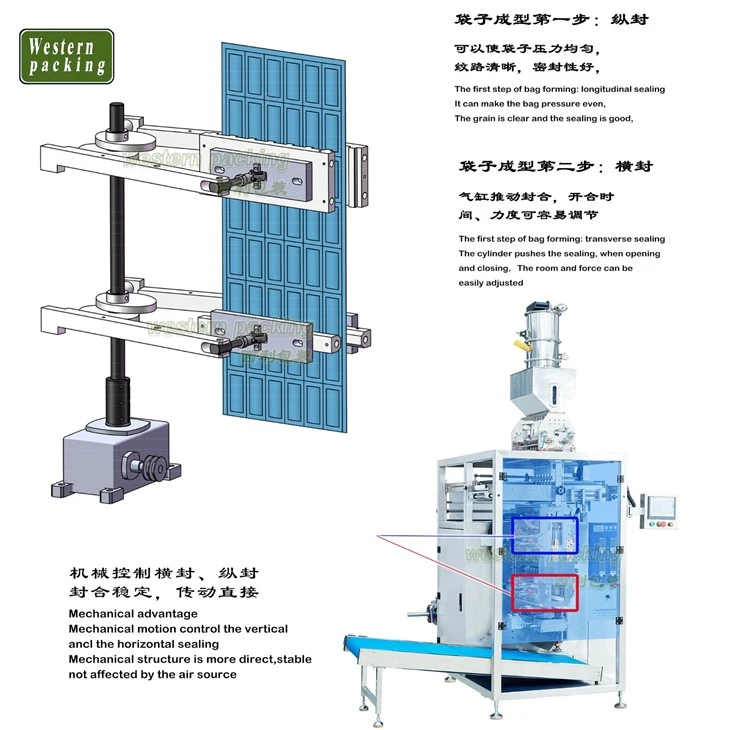

Bag forming step 1: Vertical sealing
It can make the bag pressure even,The grain is clear and the sealing is good
Bag forming step 2: Horizontal sealing
The cylinder pushes the sealing, when openingand closing. The room and force can beeasily adjusted

Mechanical advantage

Mechanical motion control the verticalancI the horizontal sealingMechanical structure is more direct,stablenot affected by the air source

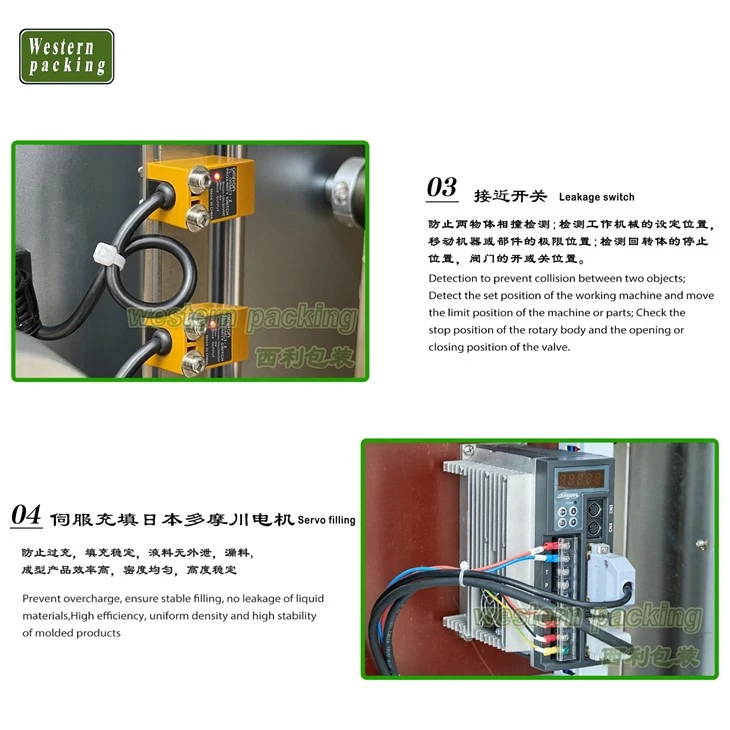

Leakage switch

Detection to prevent collision between two objects;Detect the set position of the working machine and movethe limit position of the machine or parts; Check thestop position of the rotary body and the opening orclosing position of the valve.

seed packing machine vegetable seed packing machine

vegetable seed packing machine packing machines for food

Intermediate relay

Omron Intermediate relay, Used in circuits where current and voltage are unstable to protect circuitsand equipment, usually in automatic control circuits.

Servo filling

Prevent overcharge, ensure stable filling, no leakage of liquidmaterials,High efficiency, uniform density and high stabilityof molded products

packing machines for food frozen food packing machine

packing machines for food automatic seed packing machine

Sample

Straight cutting
Zigzag cutting
Chain bag(optional)

Product Features

This vegetable seed packing machine is part of a larger family of packaging machines. It can be integrated with other machines such as seed packing machine, automatic seed packing machine, and frozen food packing machines to create a complete packaging system. This system can be used to pack various types of food items, making it an ideal choice for food packaging businesses.

Product Functionality

The machine is versatile, efficient and easy to operate. It has a user-friendly touch screen interface that allows workers to quickly set up and operate the machine with minimal training. It also boasts a high level of accuracy, ensuring that food items are packed precisely each time.

Product Applications

The Vegetable Seed Packing Machine for Food is an ideal choice for businesses in the food industry. Its reliable performance and high level of accuracy make it suitable for use in a variety of food packing applications. Its primary application is in packing vegetable seeds, but it can also be used to pack other food items such as nuts, dried fruits, and frozen vegetables.

Company Introduction

Company Introduction

Our company is a leading manufacturer of food packaging machines located in China. We specialize in the design, development, and production of a wide range of packaging machines, including the Vegetable Seed Packing Machine for Food. Our mission is to provide our customers with high-quality, efficient, and reliable packaging solutions for their businesses.

FAQ

Q: What types of food items can the machine pack?

A: The machine can pack various types of food items, including fresh and frozen vegetables, fruits, and nuts.

Q: Is the machine easy to operate?

A: Yes, the machine has a user-friendly touch screen interface that allows workers to quickly set up and operate the machine with minimal training.

Q: What is the machine's primary application?

A: The machine's primary application is in packing vegetable seeds, but it can also be used to pack other food items such as nuts, dried fruits, and frozen vegetables.

**Machine Component**
NO.	Item	Brand
1	PLC	SIEMENS(Germany)
2	HMI	SIEMENS(Germany)
3	Temperature controller	OMRON
4	Promiximity Switch	OMRON
5	Relay	OMRON
6	Powder Switch	SCHNEIDER
7	Pneumatic Component	Air Tec
8	Server Pull Motor	Delta
