Snack Packaging Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of snack packaging machine in China. We warmly welcome you to buy high quality snack packaging machine made in China here from our factory. We also accept customized orders.

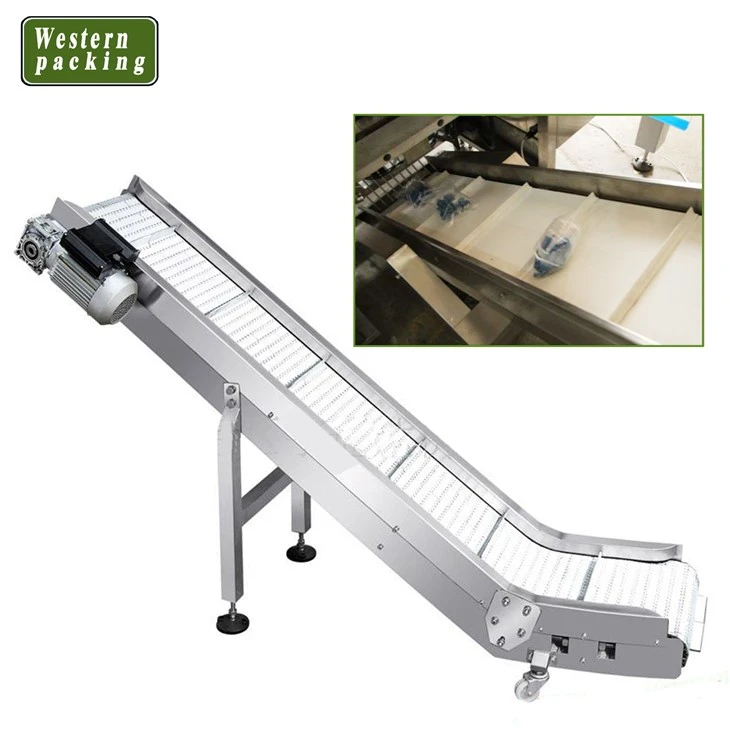

The multi-head weighing snack packaging machine is a complete automated packaging solution. Its core components include a lifting and conveying system, a multi-head combination weigher, a vertical packaging main unit, an electrical control system, and a finished product conveying system.

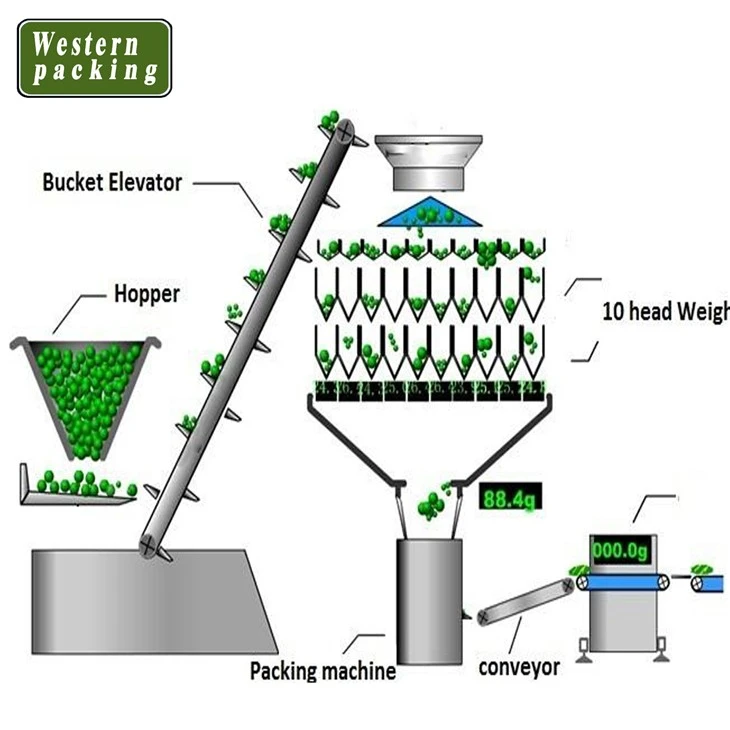

During production, materials are continuously conveyed to the top of the combination weigher via a Z-shaped elevator. The material first enters the central distribution plate and then is evenly distributed into various linear vibrating troughs and storage hoppers by a vibration system. The storage hoppers continuously feed material to the weighing hoppers according to a set program, ensuring that each weighing unit maintains optimal working condition.

1. High-speed combined weighing technology: The equipment employs a multi-head combined algorithm, capable of simultaneously analyzing and calculating data from multiple weighing hoppers. Compared to single-head weighing equipment, it not only weighs faster but also significantly reduces weight errors, improving packaging consistency.

2. High degree of automation: From raw material conveying to finished product output, no manual intervention is required, greatly reducing labor intensity and improving production standardization.

3. Precise film length control: Utilizing a servo film stretching system combined with photoelectric color mark tracking technology, it ensures uniform size and accurate pattern positioning for each packaging bag, enhancing packaging aesthetics.

4. Intelligent fault detection: The equipment features multiple protection functions, including film shortage alarm, material shortage alarm, abnormal temperature alarm, and insufficient air pressure alarm, minimizing downtime.

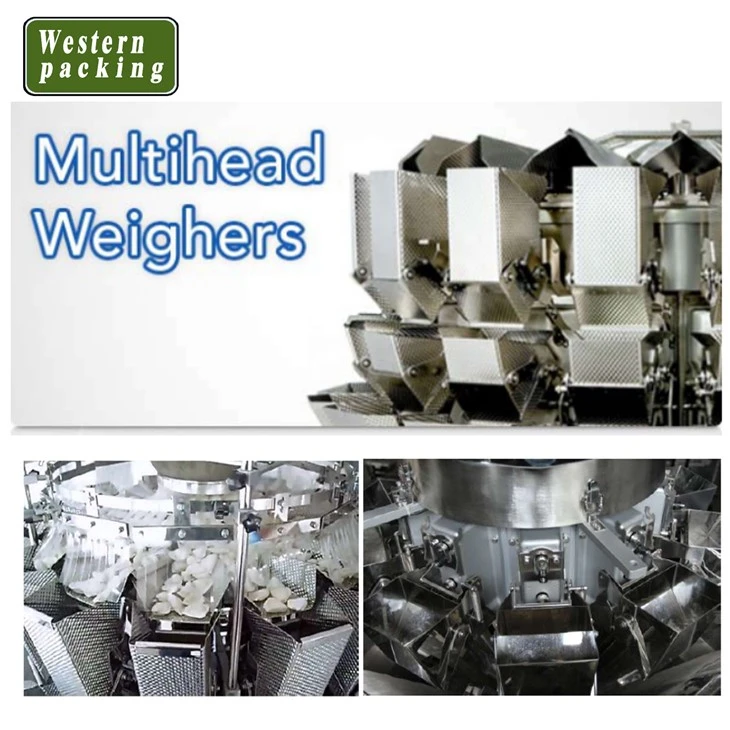

Each weighing hopper is equipped with an imported high-sensitivity sensor that can quickly detect minute changes in weight.

The equipment adopts a double-layer design with a storage hopper and a weighing hopper. The storage hopper is responsible for buffering materials, while the weighing hopper is responsible for accurate weighing.

The snack packaging machine forming unit is responsible for rolling the flat packaging film into a cylindrical bag. It employs a one-piece stainless steel processing technique, resulting in a smooth surface that reduces film friction.

Both longitudinal and transverse sealing utilize independent temperature control systems, ensuring high temperature control accuracy. The sealing temperature can be adjusted separately for packaging films of different thicknesses and materials to ensure a secure, leak-proof seal.

Guangzhou Western Industrial Co., Limited specializes in the design, manufacture, sales, and after-sales service of vertical form-fill-seal (VFFS) packaging machines for the global packaging industry. Our equipment serves a wide range of sectors, including food, beverages, nutraceuticals, and chemicals. We provide high-speed, continuous-motion stick pack and sachet machines, as well as a versatile lineup of vertical baggers capable of producing everything from pyramid bags to custom-shaped bags-tailored to meet your unique packaging needs.

Taking photos with customers

Our company maintains close partnerships with numerous clients. Whether it's a new client's first collaboration or a long-term client's repeated cooperation, we remain consistent, which is why our clients are so determined to choose Western Packing.
