Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic bottle jars granule filling machine manufacturers in China. We warmly welcome you to buy high quality automatic bottle jars granule filling machine manufacturers made in China here from our factory. We also accept customized orders.

Products Introduction

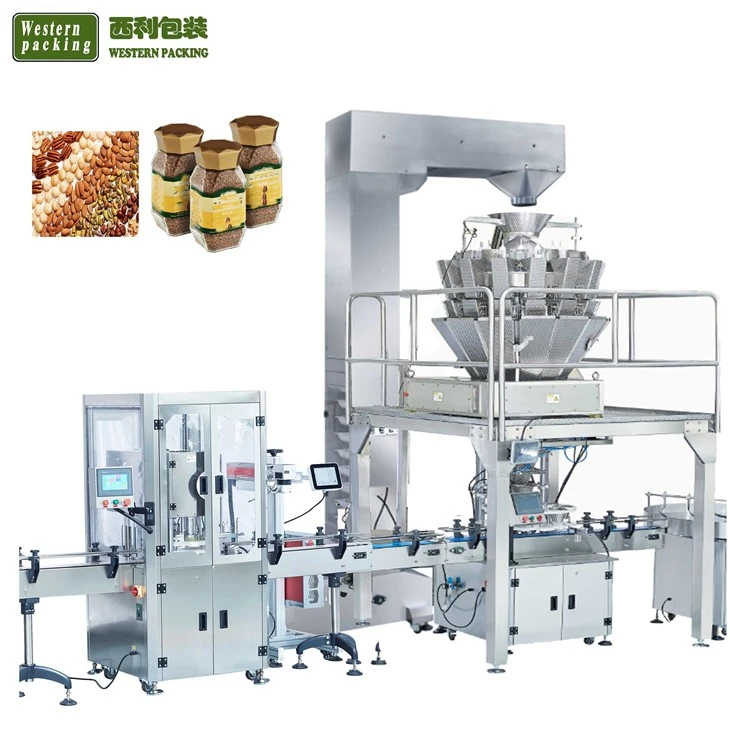

Automatic Bottle Jars Granule Filling Machine Manufacturers

The entire production line encompasses processes such as feeding, metering, filling, sealing, capping, and labeling. Through intelligent control and optimized mechanical structure, it achieves continuous and stable production.

This production line is suitable for various food granules, pharmaceutical granules, chemical granules, and agricultural granules and is compatible with different packaging formats, including cans, bottles, or bags. Through a rational layout and modular design, the equipment can flexibly adjust capacity, material specifications, and dimensions to meet diverse production needs.

Products Features

1. Continuous and Efficient Operation: The entire production line adopts an automated, interconnected design, achieving uninterrupted production and significantly increasing output.

2. Precise Metering: The metering system is accurate and fast, ensuring consistent weight for each can of material and reducing rework waste.

3. Easy Operation: Centralized control via PLC and touchscreen supports parameter presets and production record management.

4. Stable and Durable: High-quality stainless steel and wear-resistant parts ensure long-term stable and reliable operation of the equipment.

Products Parameters

Automatic Bottle Jars Granule Filling Machine Manufacturers

Filling Weight	100-500-2000 g (customizable)
Bottle diameter	Φ30-Φ140 mm (customizable)
Bottle height	40 mm-200 mm (customizable)
Production speed	15-55 bottles/min
Measurement accuracy	≤500g, ≤±1%;＞500g, ≤±0.5% (Varies due to the characteristics of the material)
Power	4.5 kW
Working Pressure	0.6-0.8 MPa
Control system	SIEMENS PLC CONTROL
Filling head	four heads/ten heads, can be customized
Weight	1200-1500kg

Products Details

jars granule filling machine manufacturers

The receiving machine adopts an anti-splash guide plate and an adjustable vibration conveyor design, which makes the material flow into the weighing hopper evenly and continuously while reducing particle loss and dust.

The bottle unscrambler uses intelligent photoelectric detection and mechanical clamping to ensure that bottles and cans are arranged neatly and accurately, guaranteeing efficient and continuous feeding before filling.

The weighing and filling machine achieves accurate proportioning and rapid response for each filling through high-speed data acquisition and multi-head dynamic combination algorithms, adapting to different particle sizes.

jars granule filling machine manufacturer

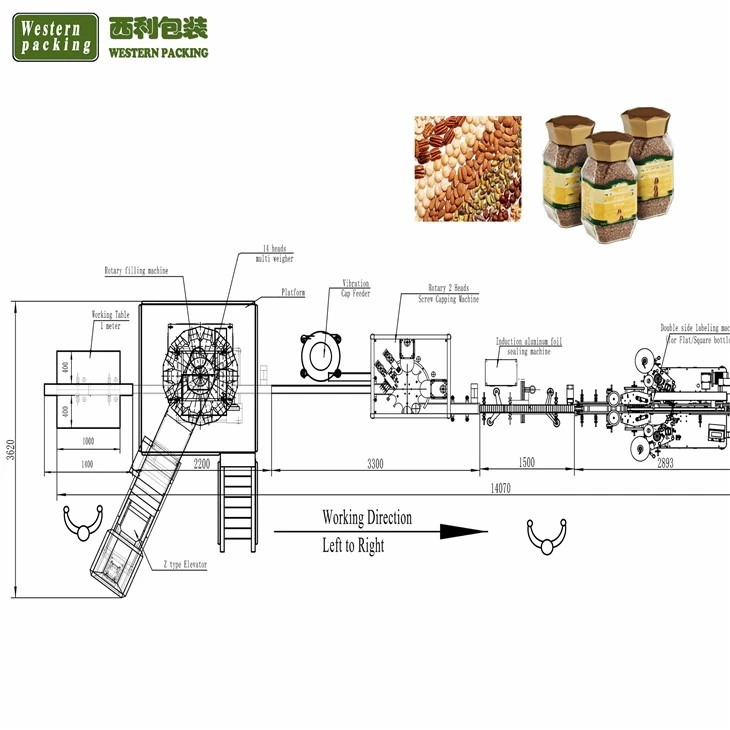

The entire production line adopts a modular design, with each functional section connected through standard interfaces. The layout can be flexibly adjusted to achieve automated and scalable production and facilitates later maintenance.

Automatic bottle jars granule filling machine
