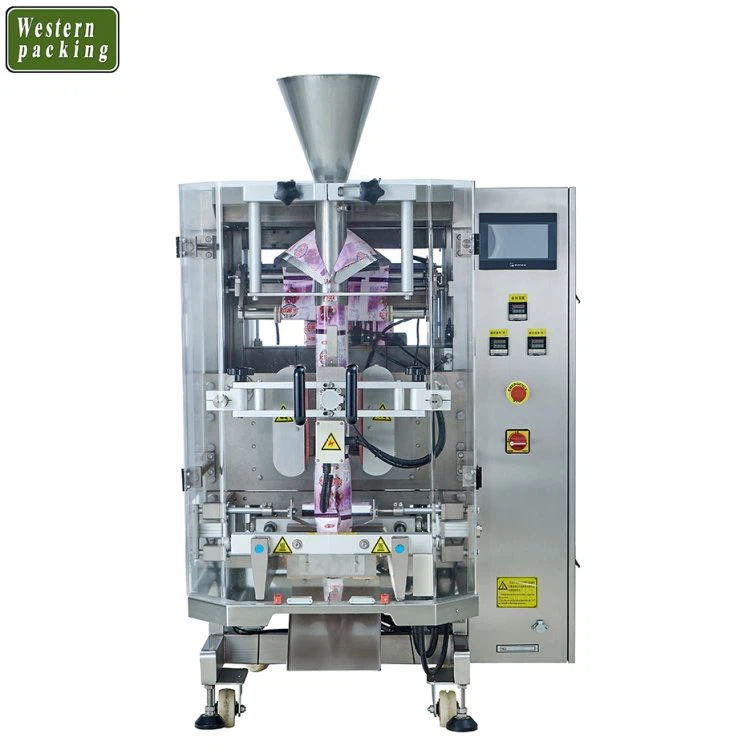

Factory Direct Vertical Small Pouch Flour Packing Machine in Foshan

Factory Direct Vertical Small Pouch Flour Packing Machine in Foshan

As a typical automatic multi-function food bag packaging machine, the verical packing machine can work with different measuring and filling head.
Send Inquiry
Product Introduction

We have been making continuous efforts to closely integrate the needs of users, and always follow a technology-leading and user-oriented development model to provide customers with the most effective and economical Dipping Sauce Packing Machine, Coffee Machine Packing, Drip Coffee Packing Machine. Based on our mission and vision, we advocate the core values of truthfulness, integrity, dedication and responsibility. We start from serving local enterprises and customers, starting from providing a single product, starting from the little things that are never known and accumulating step by step and year by year. In today's increasingly fierce market competition, our company pays more attention to modern enterprise management and value-added after-sales service.

Product Introduction

As a typical automatic multi-function food bag packaging machine, the verical packing machine can work with different measuring and filling head, widely suit for automatic packing of popped food, fruit, candy, biscuit,deep frozen food, melon seeds, roasted nuts, pips and other granule materials.


Main technological parameter

Model

WP-520/620B

Capacity

30-60bags/min ( or 60-100 bags per min )

Measuring range

Max 6000ml (2kg)

Bag model

Pillow bag

Bag size

L 100-350mm W80-250mm

Film Width

Max 520mm

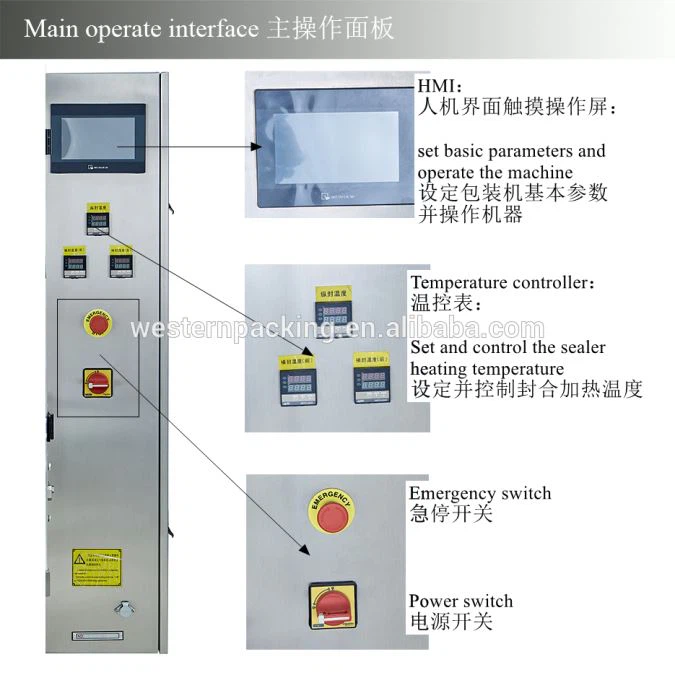

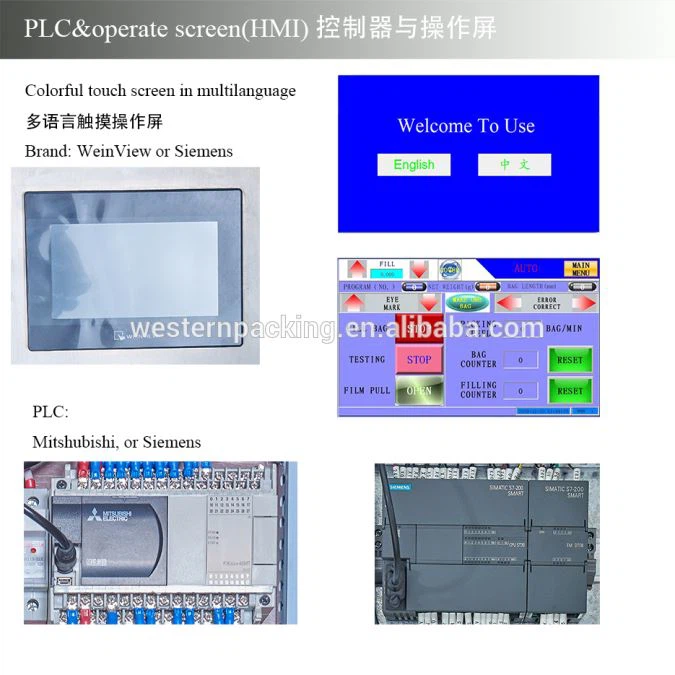

Control+HIM

PLC + Chinese/English interface touch screen

Air consumption

0.8Mps, 0.5m3/min

Power

1Phase,50Hz ,AC 220V, /3.5KW

Optional

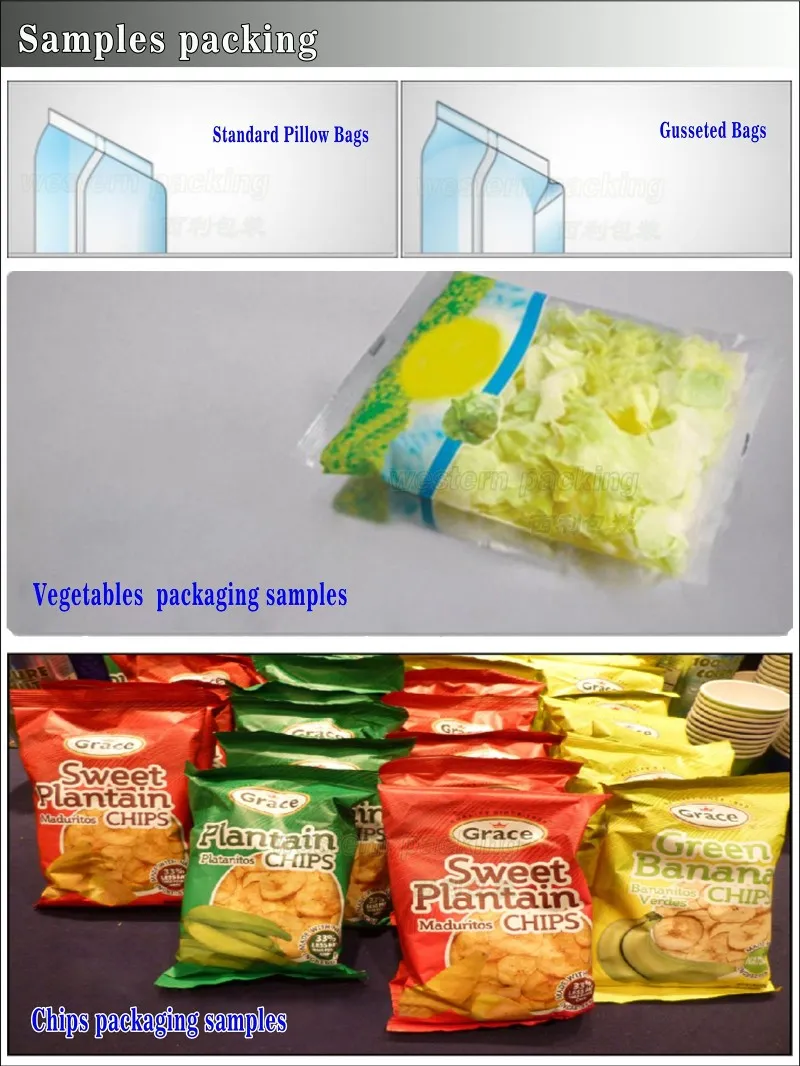

hole Punching, Nitrogen charging, air exhausting, Gusset bag

Dimension

L1580xW1120xH1790mm

Weight

550kg


Product feature and application
As a typical automatic multi-function food bag packaging machine, the verical packing machine can work with different measuring and filling head, widely suit for automatic packing of popped food, fruit, candy, biscuit,deep frozen food, melon seeds, roasted nuts, pips and other granule materials.

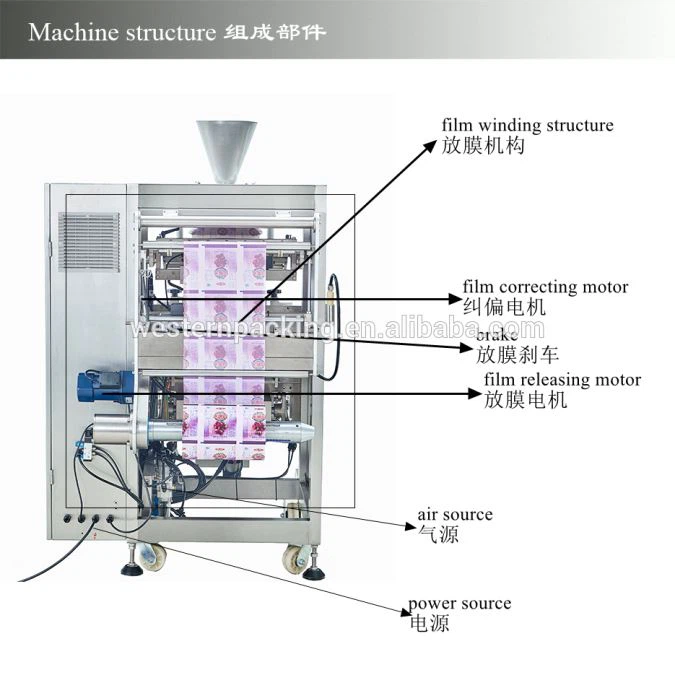

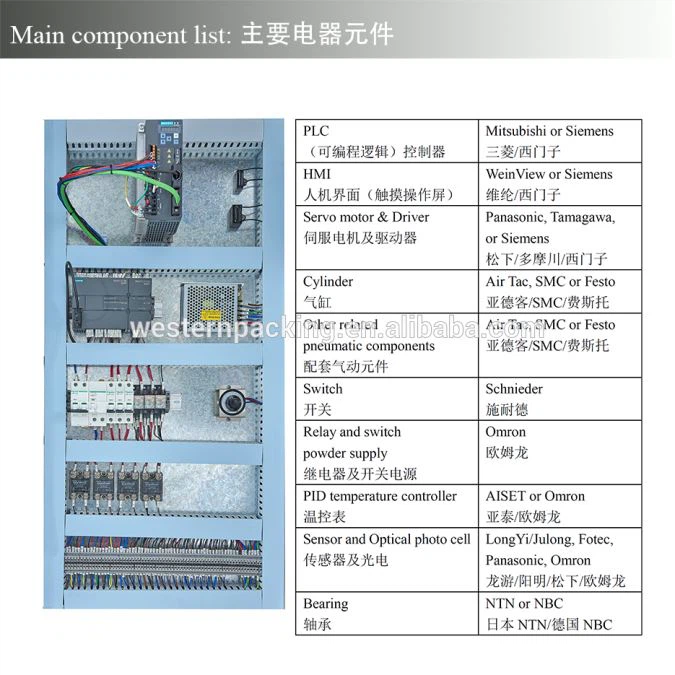

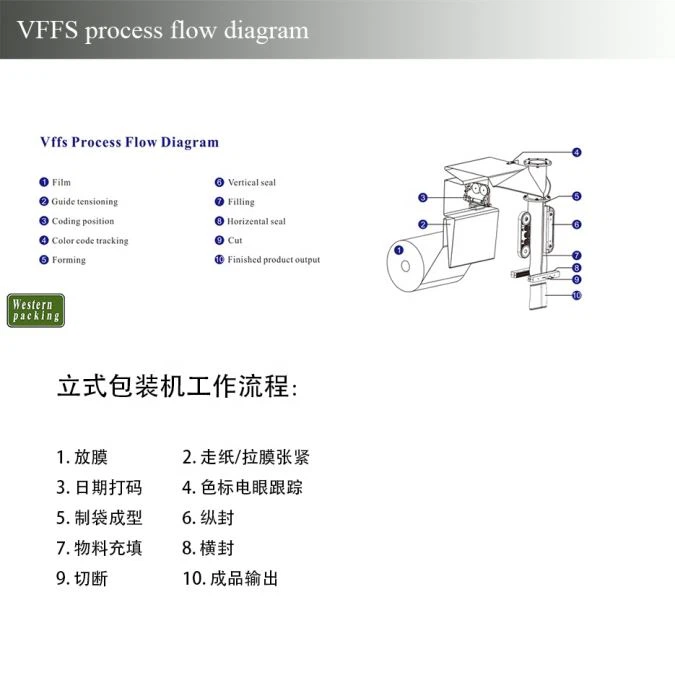

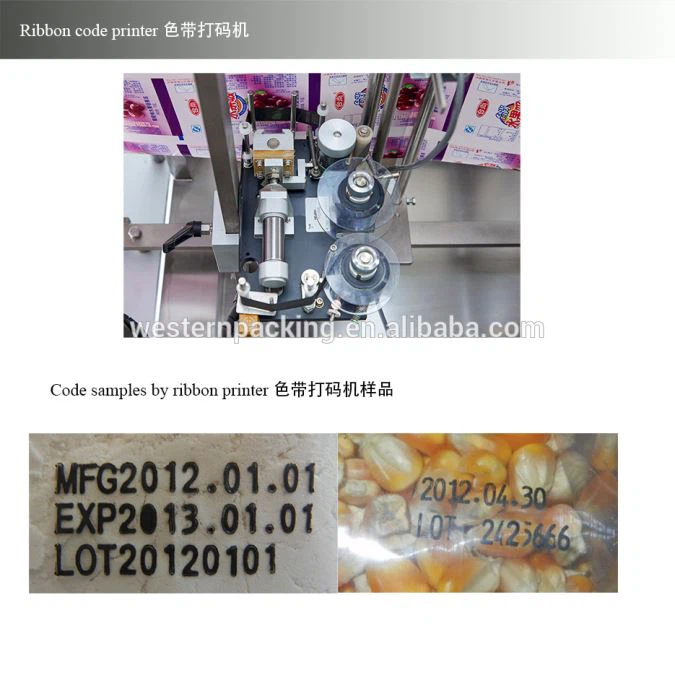

Product details

Product qualification



Deliver, shipping



Our Advantages

● More than 20 years experience on packaging machine industry.

● Obtain more than 10 relevant patent related to packaging machine.

● Have independent R&D department for OEM and ODM order.


FAQ

● Installation/Operation/ Service/ Maintenance Manual: In English

● Machine Drawing / Layout: Detail in AutoCAD format (as for actual workshop)

● Installation: 2 engineers for 10-15 days without cost. Commissioning fee plus flight tickets, hotel and dinner fee are all at buyer’s account.

● Training: Training to the local operator to be carried out by the supplier at the time of installation/ commissioning/ trial run at factory.

● Warranty: One year from the date of completion of the commissioning

● Pre-shipment Inspection:

◆ Supplier should trial run whole line at supplier's factory before shipment;

◆ Supplier has to run the machine at least 1hour for each product;

◆ All raw materials for that trial run to be arranged by supplier at their cost.

● Quanlity Guarantee: Period: one year. we shall send enough spare part of easy damaged for changing along with machine.

● IF components were damaged in guarantee period, we shall send the spare part free of charge for changing, if the components were damaged beyond guarantee period, we shall supply the spare part at factory cost price. The related courier fees will be responsible to the buyer.

● We provide the lifelong maintenance service. (Commissioning fee plus flight tickets, hotel and dinner fee are all at buyer’s account.)

● 24 hours hotline for any question.
