Automatic Liquid Packing Machine
Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of automatic liquid packing machine in China. We warmly welcome you to buy high quality automatic liquid packing machine made in China here from our factory. We also accept customized orders.
Products Description
Automatic Liquid Packing Machine
Product Performance
The Automatic Liquid Packing Machine is a high-end product that offers significant advantages over manual packaging processes. This machine requires minimal operator intervention and can achieve faster packaging speed, higher accuracy, and more stable production capacity.
Product Features
The Automatic Liquid Packing Machine is compatible with various film materials, such as PET/AL/PE, PET/PE, PAPER/PE, NYLON and other heat sealable compound materials. It is suitable for packing liquid and semi-liquid products in various industries, including food, beverage, chemical, and pharmaceutical.
Products Parameters
| Bag Style | 4-side seal | Voltage | AC 380v 3 phases 50Hz |
| Filling Accuracy | ≤±1% | Power | 380V 28KW |
| Capacity | 200-400 bag/min | Weight | 480-880KG |
| Size of Bag | L50-200mm W20-80mm | Lanes | 4/6/8/10/12 lanes |
| Range of measure | 1-100ml/bag | Model | WP-680YS |
Product Function
The Automatic Liquid Packing Machine is designed to measure, fill, seal and cut the film automatically. It has an advanced photoelectric sensor system to detect the film position accurately, ensuring the packaging process is consistent and stable. The machine can also be customized to meet specific packaging requirements, such as adding code printers, nitrogen filling, and more.
Product Application Industry
The Automatic Liquid Packing Machine is widely used in the food, beverage, chemical, and pharmaceutical industries. It is suitable for packing various types of liquid and semi-liquid products, such as milk, soybean milk, ketchup, sauce, shampoo, and more.
Detail Images
Mechanical Structure
- Filling tube
- Film feeding device
- Touch screen HMI
- Vertical sealer
- Horizontal sealer
- Control panel
- Warm sealer mold
- Cold sealer mold
- Cutter assembly
- Foot cups
- Conveyor
Machine dimensions
Food grade SS304 machine frame,all the contact parst SS316L.stainless steel seamless tube 0.3mm
Part of the details
- Up and down two sets of bag-pulling wheels
- Pull the bag smoothly,make thebag shape flat and beautiful
Film compress device
Adopt a special movable typeloading and unloading structure,which can be used for coding onany flexible packaging materials
Part of the details

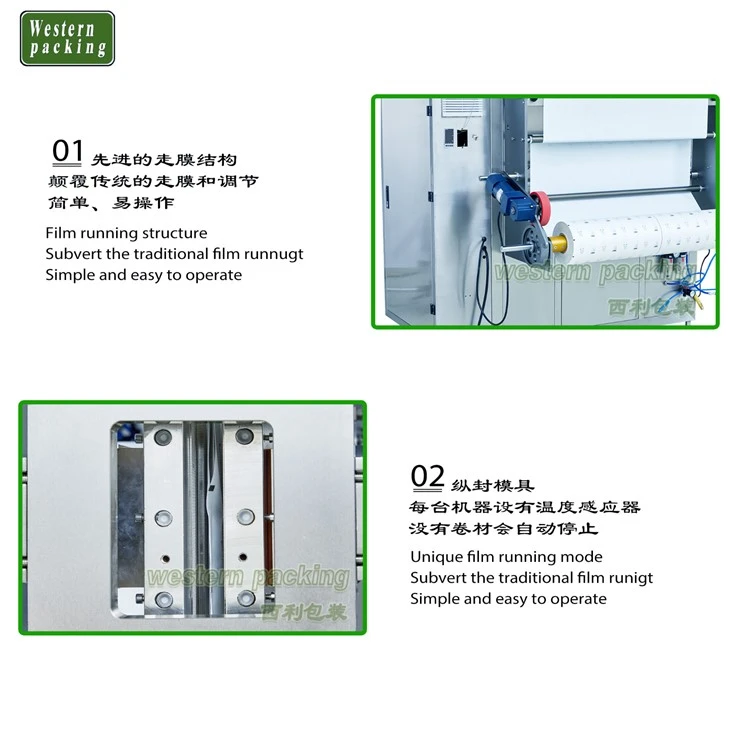

- Unique film running mode
- Automatically stops when there is no roll material
- Simple and easy to operate
Part of the details
-
Unique film running mode
-
Automatically stops when there is no roll material
-
Simple and easy to operate
Part of the details
-
Up and down two sets of bag-pulling wheels
-
Pull the bag smoothly, make the bag shape flat and beautiful
Packing samples
- Range of measure： 1-100ml/bag
- Size of Bag： L50-200mm
- Size of Bag： W20-80mm
- Straight cutting / zigzag cutting
Company Profile
Company profile
Our company is a leading manufacturer and supplier of Automatic Liquid Packing Machine. We have been in the packaging industry for over 20 years and have extensive experience in designing, manufacturing, and distributing packaging machines globally. Our products are high quality, dependable, and cost-effective, making us a trustworthy partner for your packaging needs.
FAQ
Q: Can the machine pack products in different sizes?
Q: What is the packaging speed of the machine?
Q: What is the warranty period of the machine?
| NO. | Item | Brand |

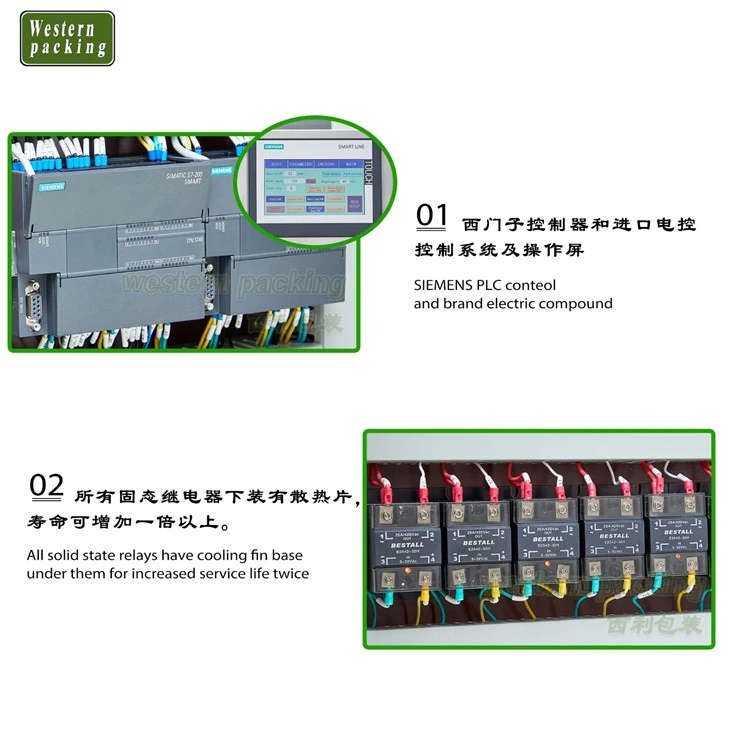

| 1 | PLC | SIEMENS(Germany) |
| 2 | HMI | SIEMENS(Germany) |

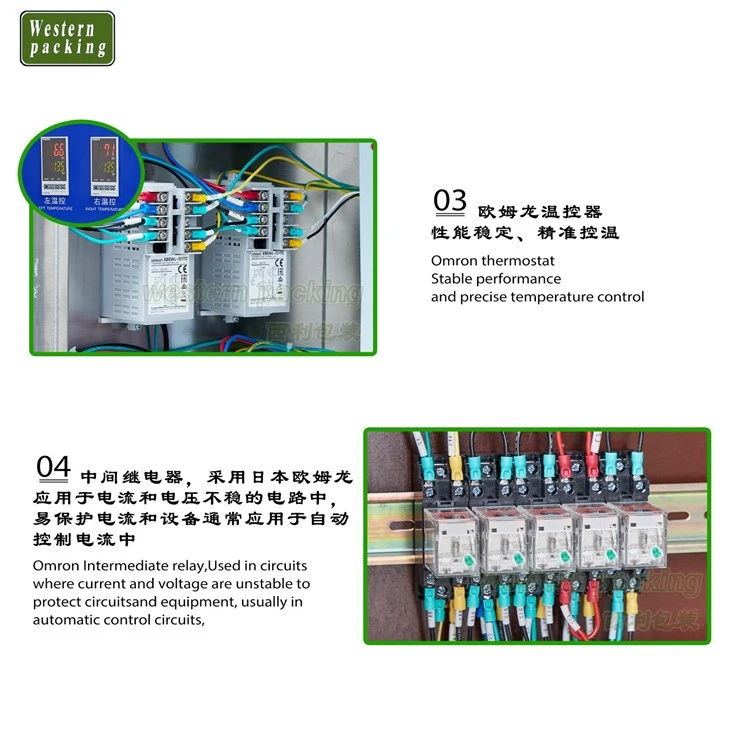

| 3 | Temperature controller | OMRON |
| 4 | Promiximity Switch | OMRON |
| 5 | Relay | OMRON |
| 6 | Powder Switch | SCHNEIDER |
| 7 | Pneumatic Component | Air Tec |
| 8 | Server Pull Motor | Delta |
