Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of back seal powder packing machine in China. We warmly welcome you to buy high quality back seal powder packing machine made in China here from our factory. We also accept customized orders.

Products Description

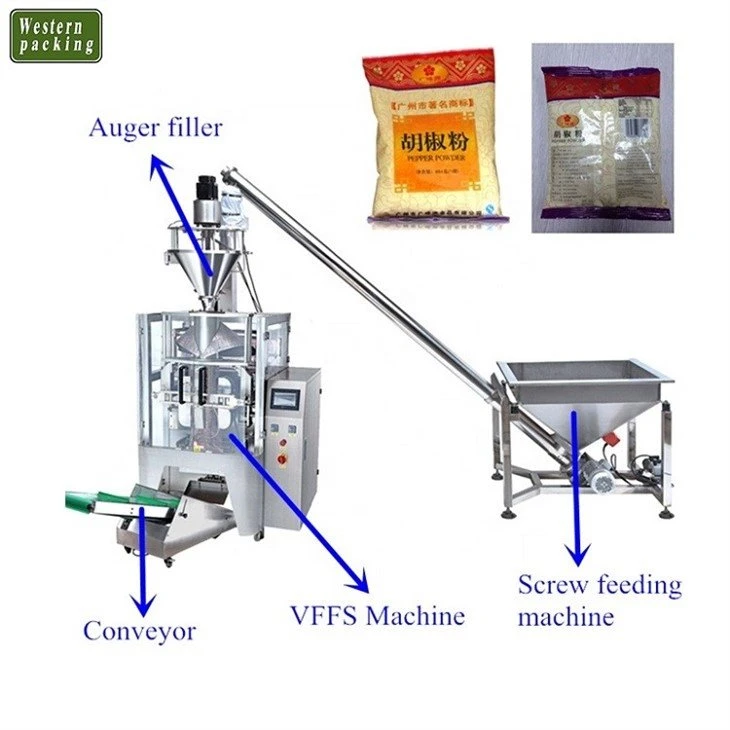

The back seal powder packing machine is composed of several key components, including a screw feeding system, a powder dosing unit, a vertical form-fill-seal packaging machine, and an intelligent control system. The screw feeder transfers powder materials from the storage hopper to the measuring unit, providing a continuous and uniform supply of product. This feeding method helps maintain smooth material flow and reduces the possibility of blockages or irregular feeding.

In operation, the packaging film is first guided through a forming collar where it is shaped into a tube. The vertical sealing mechanism then seals the back side of the bag to create the characteristic back-seal structure. Once the bag shape is formed, the powder product is dispensed into the bag through the metering system with controlled accuracy. After the filling step is completed, the horizontal sealing unit closes the top of the bag and separates it from the film roll, producing neatly sealed individual packages ready for collection or further processing.

Products Features

Accurate Powder Dosing: The machine adopts a screw-driven dosing mechanism that enables precise control over the amount of powder dispensed into each package. This design helps maintain consistent filling weight and improves the overall uniformity of the packaged products.

Space-Saving Design: Featuring a vertical configuration, the equipment occupies relatively little floor space. This compact layout allows it to be easily integrated into production lines and installed in workshops with different space conditions.

Flexible Film Compatibility: The packaging system can work with a wide range of laminated and composite packaging films. This flexibility allows manufacturers to select suitable materials while maintaining reliable sealing performance and attractive package appearance.

Reliable Operating Performance: Designed for stable operation, the machine can run continuously for long production cycles. Its steady packaging speed makes it well suited for medium to high-volume manufacturing environments.

Convenient Maintenance: The structure of the back seal powder packing machine allows important parts to be removed and installed quickly. This makes routine cleaning easier, helps eliminate leftover powder in the system, and supports hygienic production conditions.

Products Parameters

1	Filling type	Auger screw
2	Feeding range	500-1000g
3	Max filling speed	800-1200 BPH (1000g)
4	Weight	660 KG
5	Dimension (LWH)	12009001800mm (can be adjustment)

Products Details

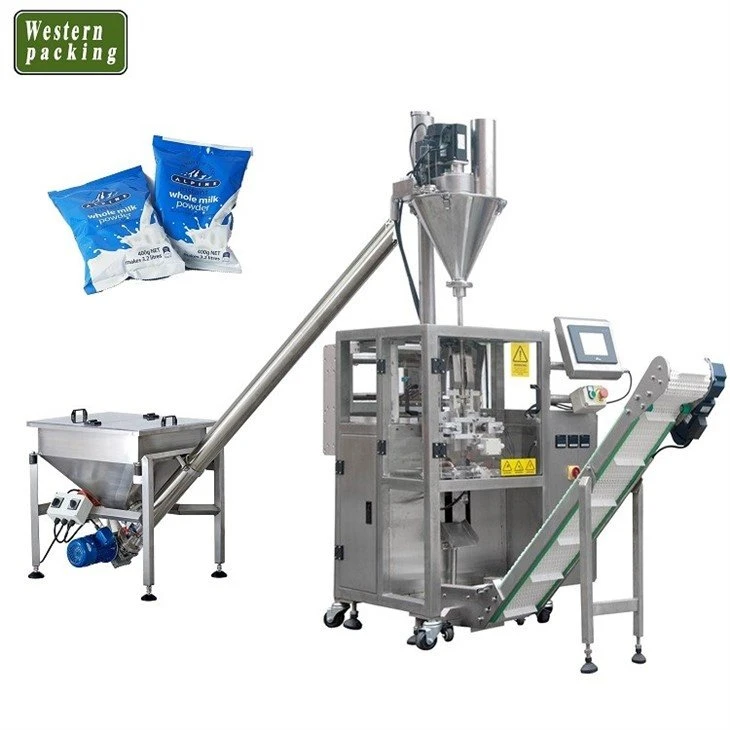

automatic powder filling and sealing machine

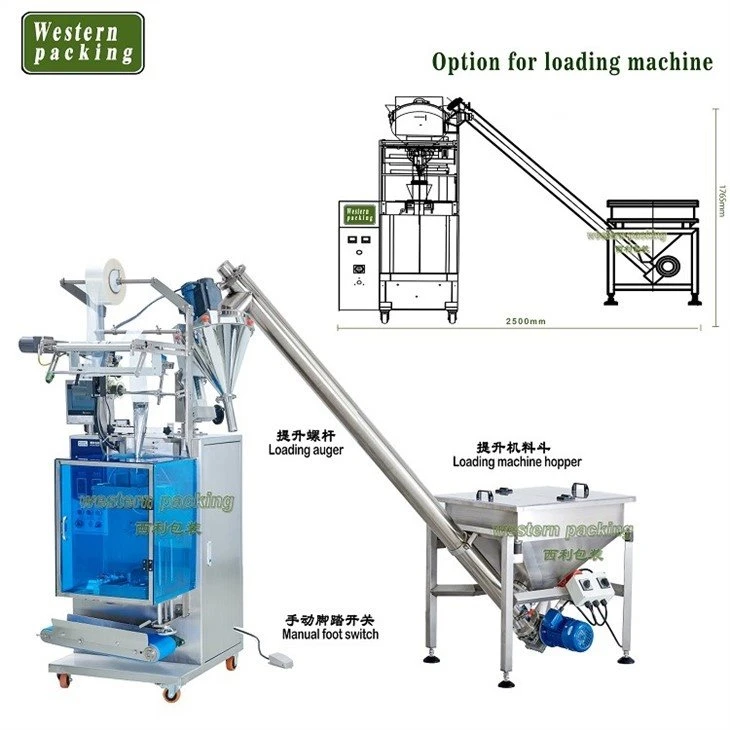

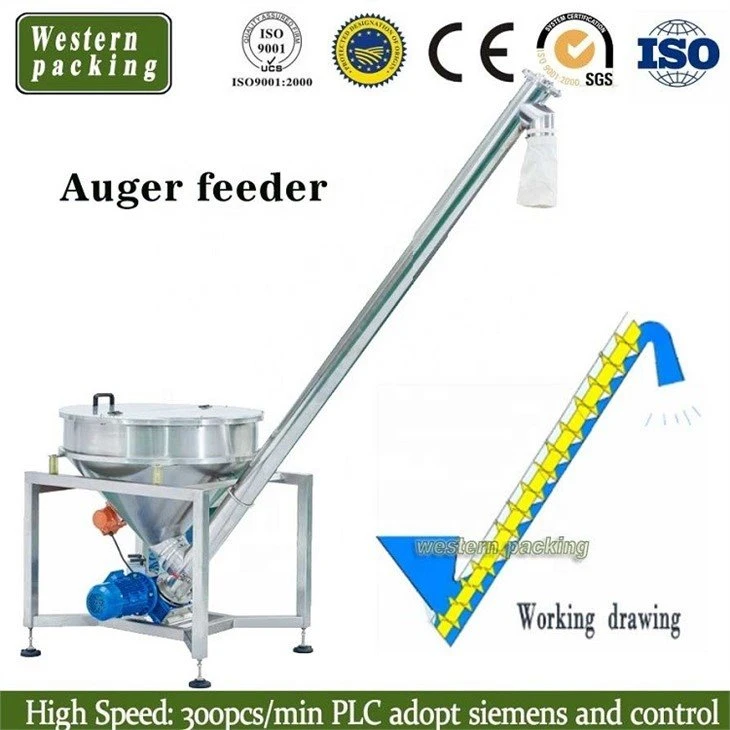

The feeder uses a screw conveyor to evenly lift powdered materials to the metering device, reducing material blockage or uneven feeding.

The forming device is responsible for folding the roll film into the shape of a packaging bag, ensuring uniform bag size and providing a stable foundation for subsequent sealing and filling.

The machine is equipped with a human-machine interface control panel, which allows operators to view the operating status and adjust relevant parameters, thus improving the ease of operation.

The automatic bag cutting system cuts the bags after sealing, ensuring that each bag is the same size and has a neat and standardized appearance.

Company introduce

Western Packing is a machinery manufacturing company dedicated to the design, production, and distribution of automatic packaging equipment. The company focuses on developing efficient and reliable packaging solutions to meet the diverse needs of modern production lines. Its equipment is widely applied in industries such as food processing, pharmaceuticals, daily-use chemicals, chemical products, and agricultural materials.

With an emphasis on product quality, technological improvement, and customer-oriented service, Western Packing has built a strong reputation in both domestic and international markets. The machines are known for their dependable performance and practical design, while the company's professional support system ensures that customers receive timely assistance throughout the entire cooperation process.

Liquid

The machine can pack various bag types
Powder

High degree of automation, continuous and fast packaging
Granule

Widely used in food, chemical, pharmaceutical and other industries
Packaging Materials

A variety of packaging materials can be provided

Taking photos with customers

Our company places great importance on building strong relationships with customers through open communication and cooperation. Clients from various countries regularly visit our factory to tour the production facilities, observe the manufacturing process, and learn more about our technical capabilities and equipment development. These visits provide an opportunity for direct discussions and on-site demonstrations, allowing customers to gain a clearer understanding of the machine performance and practical applications.
