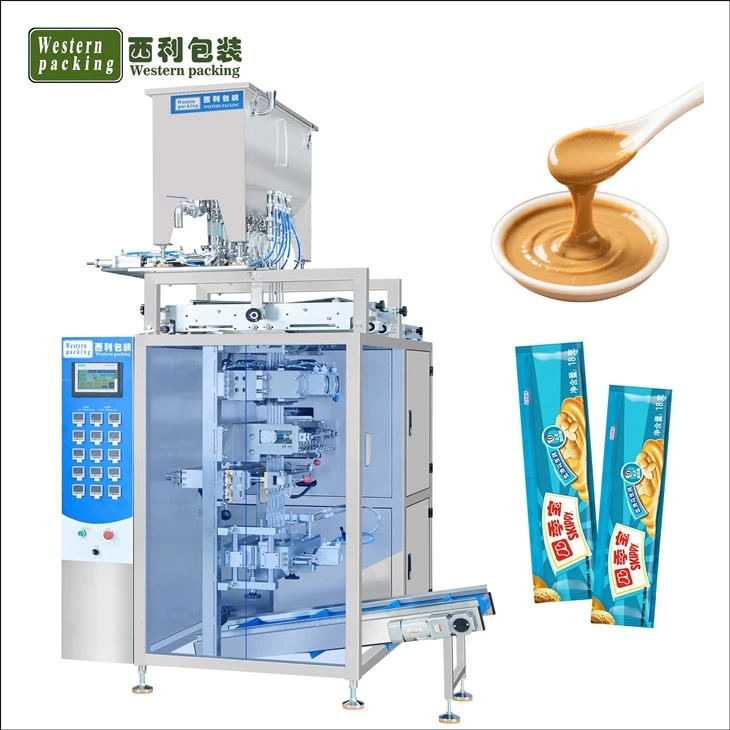

Multi-lane Liquid Soap Sachet Packing Machine

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of multi-lane liquid soap sachet packing machine in China. We warmly welcome you to buy high quality multi-lane liquid soap sachet packing machine made in China here from our factory. We also accept customized orders.

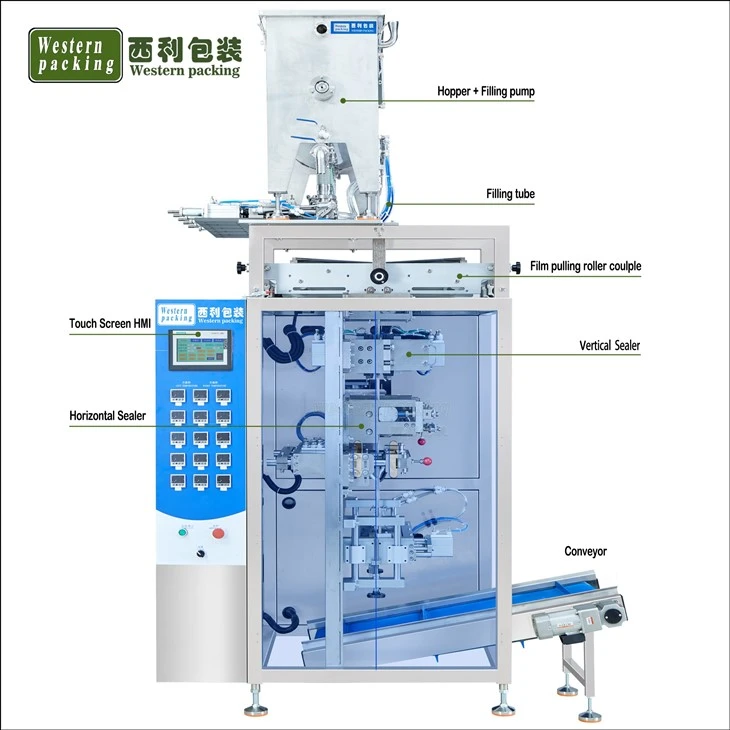

The Multi-lane Liquid Soap Sachet Packing Machine is a fully automatic packaging equipment that integrates metering, bag making, filling, sealing, cutting, and printing. It is specifically designed for four-side sealing packaging of small and medium-sized bags of liquids and pastes. Its core advantage lies in significantly increasing production capacity through multi-row synchronous operation, while combining high-precision sealing and intelligent control systems to ensure a balance between packaging efficiency, sealing performance, and aesthetics.

1. Multi-column Synchronous High-Efficiency Production

Supports 4-12 independent packaging lanes, with a single machine capable of producing tens of thousands to hundreds of thousands of bags per day (depending on specifications), 3-5 times more efficient than single-column machines.

Typical Case: A 12-column model packages 50ml shampoo at a speed of 60 bags/minute, achieving a daily capacity of over 280,000 bags in 8 hours.

2. High-Precision Sealing and Metering: Sealing Technology

Employs an integrated rolling heat-sealing roller or a five-axis servo drive system, ensuring a sealing temperature accuracy of ±1℃, guaranteeing no leakage and no wrinkles.

Metering System: Equipped with a metering pump/peristaltic pump/ceramic pump, achieving a filling accuracy of ±0.5%, suitable for materials ranging from low viscosity (e.g., beverages) to high viscosity (e.g., jams).

3. Modular and Flexible Design

Bag Length Infinitely Adjustable: Bag length (50-300mm) can be set via a human-machine interface (HMI) without the need to change molds.

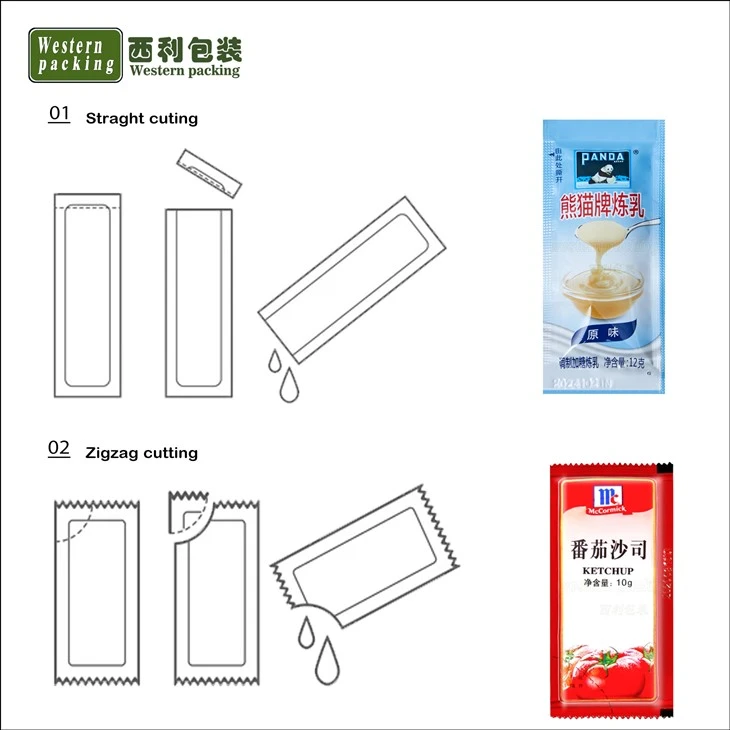

Optional functional modules: Supports extended functions such as virtual knife cutting, UV laser coding, and automatic bag stacking conveyor to meet customized needs.

4. Intelligent Operation and Stability

The PLC + photoelectric control system achieves full-process automation and features automatic correction, counting, and shutdown protection functions.

The fault self-diagnosis system monitors the operating status in real time, immediately alarming and locating the fault point when abnormalities occur.

Contact parts are made of 316 stainless steel, and the modular structure allows for quick disassembly and cleaning, meeting GMP standards.

The overall size of the machine can be customized according to production volume and workshop size.

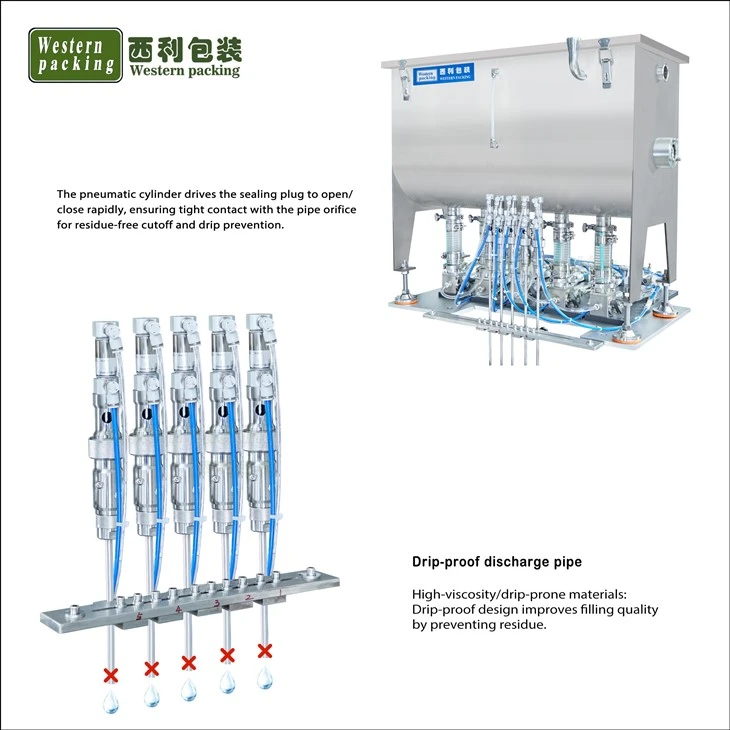

Anti-drip filter feed pipe: Double-layer anti-stick structure, anti-drip valve for precise flow control, preventing high-viscosity materials from dripping.

The combination of PLC and frequency converter offers strong anti-interference capabilities, precise speed control, improved operational stability by 20%, and a 35% reduction in failure rate.

        Guangzhou Western Industrial Co,. Limited manufacture sell and service vertical form, fill, and spice chili powder filling machine semi automatic seal packaging machines for the packaging industry. Our global markets include food, beverage, nutraceutical and chemical. We offer high-speed, continuous-motion stick pack and sachet packaging machines. And many other vertical baggers that make a variety of bag styles-from pyramid bags to irregular shape bags, customize any shape you want.We are committed to providing high-quality products and prompt deliveries at competitive reasonable prices.
