Vertical Filling Machine
video
Vertical Filling Machine

Vertical Filling Machine

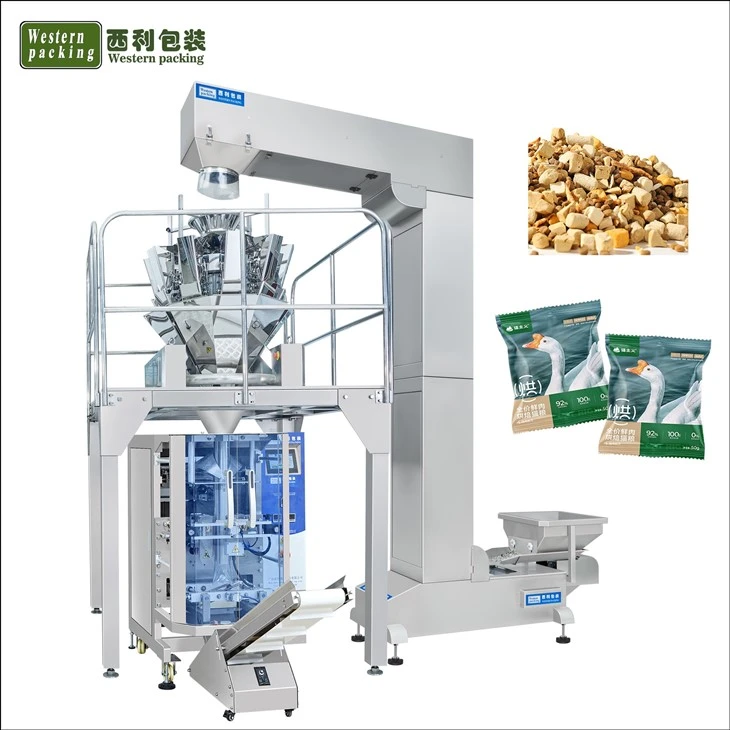

The multi-head scale vertical filling machine is an automated packaging solution developed for large-scale production enterprises. It is specifically designed for large-capacity bag production of granular, block, and some irregular materials.
Send Inquiry
Product Introduction

Guangzhou Western Packing Co., Ltd. is one of the most experienced manufacturers and suppliers of vertical filling machine in China. We warmly welcome you to buy high quality vertical filling machine made in China here from our factory. We also accept customized orders.



nuts packaging machine

Products Description

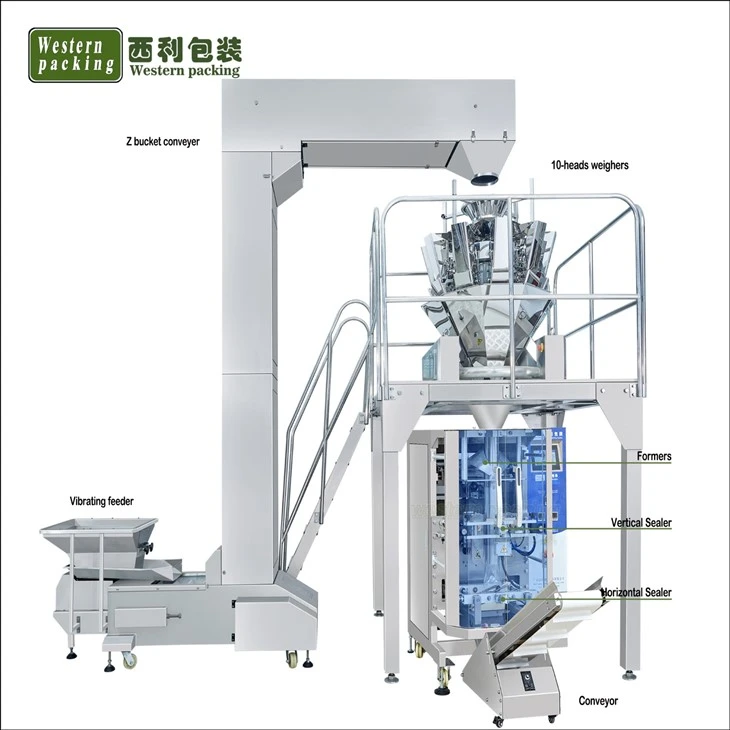

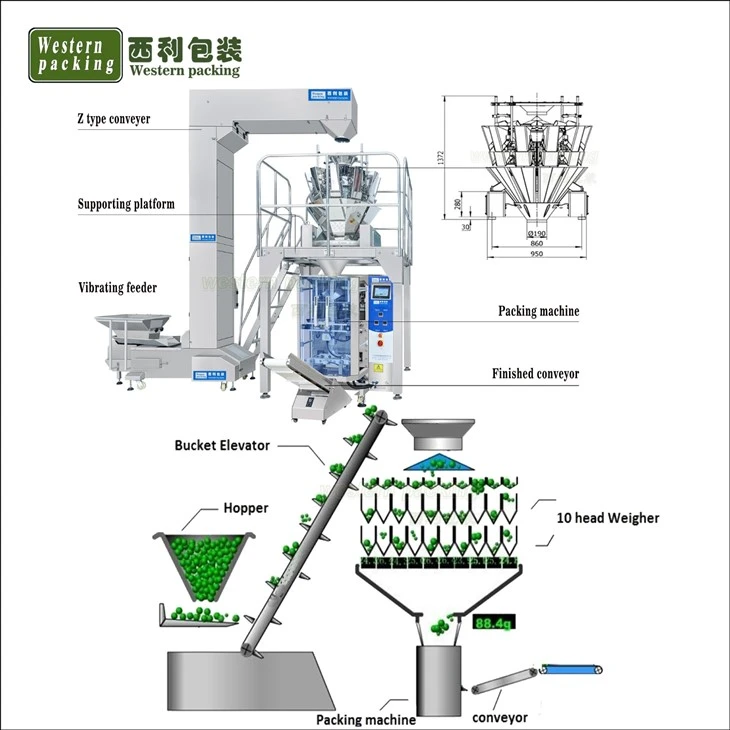

This vertical filling machine features a vertical structure design, built with stability and durability as its core principles. Before entering the weighing unit, the material undergoes vibration dispersion to ensure more uniform feeding. A smart algorithm performs rapid combination calculations and releases the material, completing quantitative filling. The packaging film is shaped by a tension control system, sealed at the back by a heat-pressing device, and then horizontally sealed and cut to form a complete finished bag. The equipment operates smoothly and is suitable for long-term continuous operation.

Product Features

This equipment is mainly used in the automatic packaging of grains, nuts, pet food, seasoning granules, chemical granules, and similar products. It supports adjustments for various bag sizes and can be customized to meet customer needs, including adding a discharge height, inflation device, or dust collection interface. The overall design emphasizes operational comfort and ease of maintenance, making it suitable for flexible configuration on production lines of different sizes. It can operate as a standalone unit or be integrated into automated production line systems.

Products Parameters

Model WP-520KB/420KB Sealing Type Heat Sealer
Range of measure 10-1000-2000 g/bag Dimension 120*110*375 cm (L*W*H)
Capacity 40-80 bags/min Power 220V 3.3KW
Packing material Pape/PE, PET/AL foil/PE, PET/PE, NYLON/PE, Tea-leaf filtering paper, etc. Weight 580 kg
Bag Size (W) 50-250mm Bag Style Pillow bag, gusset bag, chain bag, top hang hole bag

Products Details

Nuts Packaging Machine
Potato Chips Package Machine
soft candy packing machine

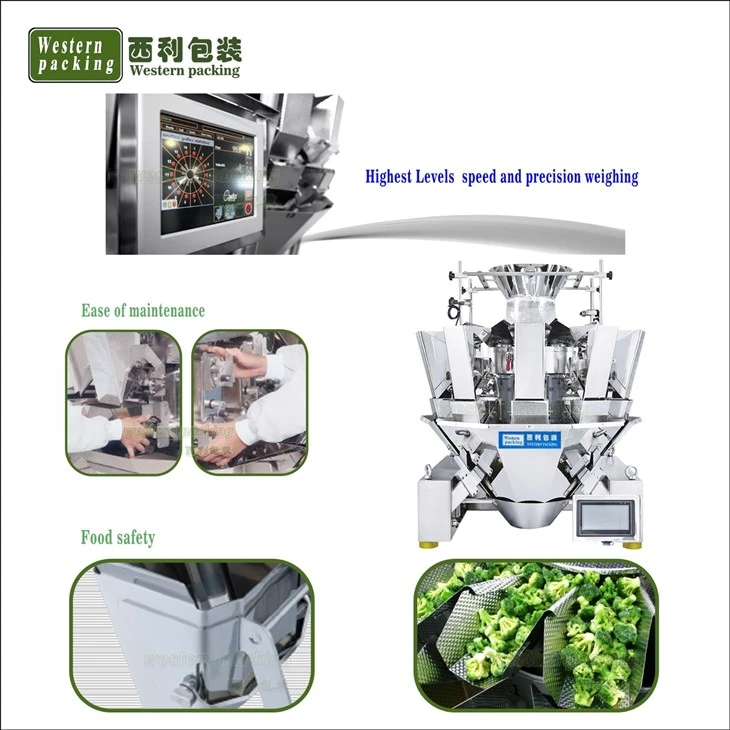

The vertical filling machine equipped with an independent high-sensitivity sensor, it has a rapid response and strong anti-interference ability, ensuring stable and reliable weighing data.
fully automatic granule packing machine

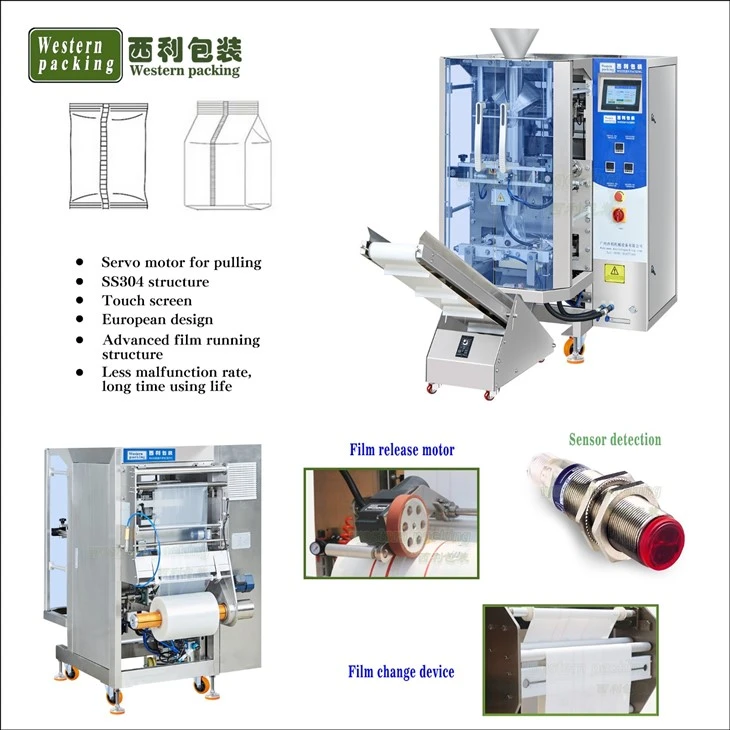

The curvature of the forming device is precisely machined to conform to the direction of the film material, reducing stretching deformation and resulting in more uniform bag dimensions.
packaging machine for dry food
The hopper is made of thickened stainless steel through one-piece stamping and has a polished inner wall, which effectively reduces material residue and wall adhesion. It is easy to disassemble and assemble and convenient for daily cleaning and maintenance.
vertical small grain granule packing machine
The feeding port adopts a tight-fitting docking structure, ensuring a tight seal during the feeding process, preventing particle splashing or material jamming, and improving packaging cleanliness.

nuts packaging machine Vertical Granule Sugar Packing Machine

Company introduce
Western packing machine company

Guangzhou Western Packing Co., Limited specializes in the manufacturing, sales, and service of vertical form-fill-seal (VFFS) packaging machines for a wide range of industries. Our global customer base spans food, beverage, nutraceutical, and chemical sectors.

We offer high-speed, continuous-motion stick pack and sachet machines, as well as a diverse range of vertical baggers capable of producing various bag styles-from pyramid and flat-bottom bags to custom irregular shapes tailored to your specific needs.

In addition to machines, we provide fully customized packaging technology and engineering solutions, including complete line integration with weighers and other automation components. Our systems can be equipped with in-feed and out-feed conveyors, auger fillers, volumetric and liquid fillers, check weighers, and more-offering a comprehensive solution for efficient and precise packaging operations.

Taking photos with customers

Over time, many of these customers have developed long-term partnerships with us. Beyond business cooperation, we have built genuine friendships based on trust, mutual respect, and shared growth.

1-119

1-113

1-112
1-110
1-118

1-83

1-8
1-36
Packing Machine Component
NO. Item Brand
1 PLC SIEMENS(Germany)
2 HMI SIEMENS(Germany)
3 Temperature controller OMRON
4 Promiximity Switch OMRON
5 Relay OMRON
6 Powder Switch SCHNEIDER
7 Pneumatic Component Air Tec
8 Server Pull Motor Delta
